Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

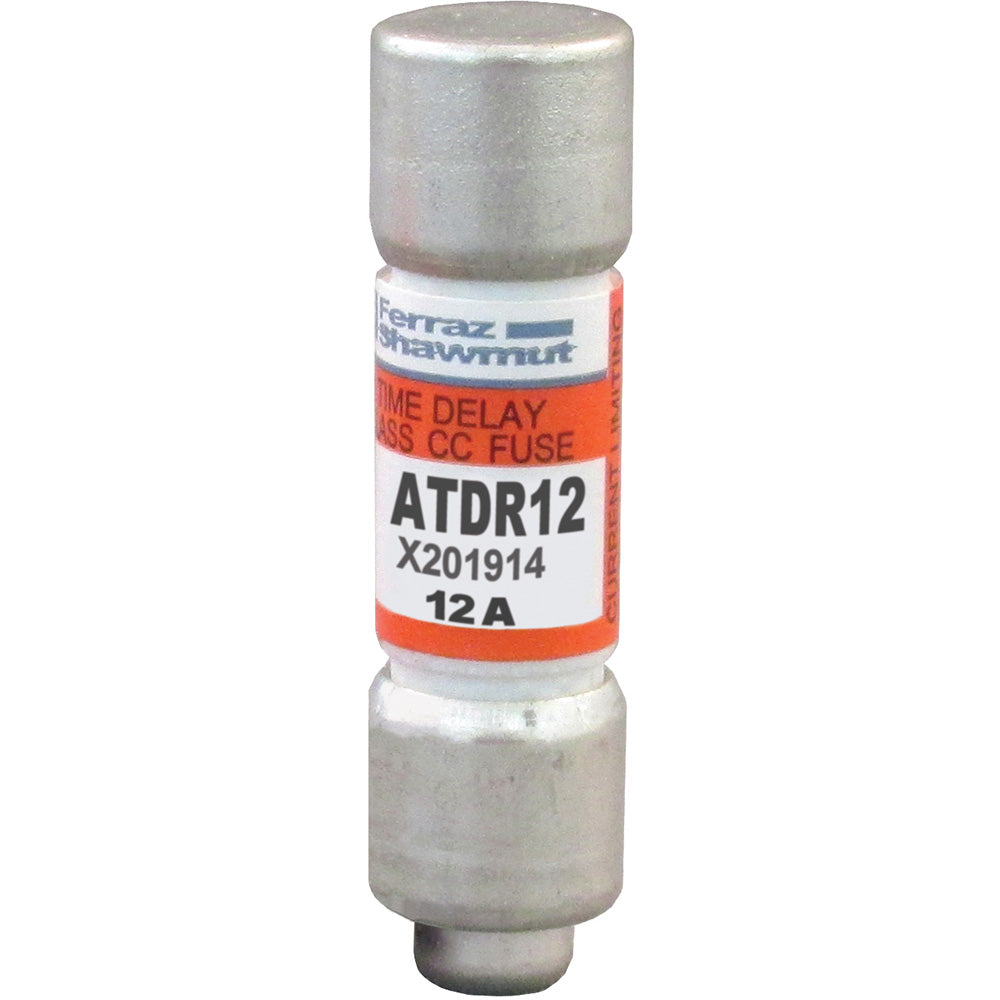

ATDR12
ATDR12 is a 12 amp, 600 volt Class CC time delay fuse from Mersen's Amp-Trap 2000 series designed for motor and branch circuit protection.ATDR12 provides IEC Type 2 "no damage" protection with excellent cycling ability for small motors, contactors, lighting, heating, and general loads. It features a clip mounting type, tin-plated copper ferrule terminals, and a fiberglass body for durability. Rated for 600V AC and 300V DC, it has a high interrupt rating of 200kA AC and 100kA DC. UL listed and CSA certified, this fuse ensures reliable protection in compact dimensions.
- Key Specifications
- Amperage: 12A
- Voltage: 600V AC, 300V DC
- Fuse Class: Class CC
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200kA AC, 100kA DC
- Mounting Type: Clip
- Terminal Material: Tin-Plated Copper
- Terminal Type: Ferrule
- Body Material: Fiberglass (GMG)
- Dimensions: 0.41 in diameter x 1.5 in length
- Certifications: UL Listed, CSA Certified
- Compliance: RoHS
Specifications
- Part Number: ATDR12
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 12
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001901080
- GTIN : 00782001901080
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
