Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ATDR1-6/10

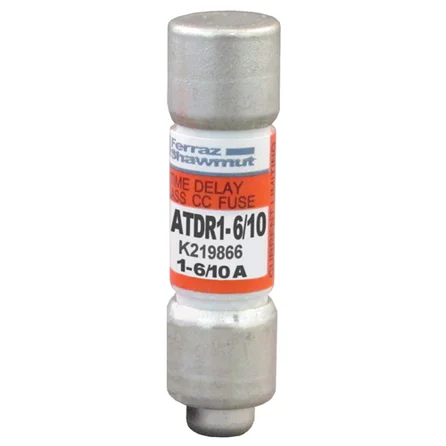

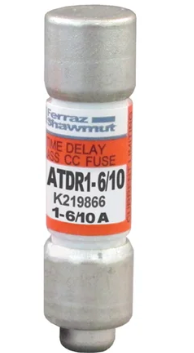

ATDR1-6/10 is a 1.6 Amp, 600 Volt Class CC time delay fuse from Ferraz Shawmut Mersen designed for reliable protection of small motors and general loads.This fuse features a cylindrical body with a 1.5 inch length and 0.41 inch diameter, providing time delay characteristics suitable for motor and lighting circuit protection. It is UL 248/248-4 and CSA C22.2 certified, rated for 600 VAC and 300 VDC operation, and offers a 200kA interrupt rating. The ATDR series is known for IEC Type 2 no-damage protection and is compatible with standard Class CC fuse blocks.
- Key Specifications
- Amperage: 1.6 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: Class CC
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200kA
- Fuse Body Type: Cylindrical
- Overall Length: 1.5 inches (38.1 mm)
- Diameter: 0.41 inches
- Certifications: UL 248/248-4, CSA C22.2
- Application: Small motors, contactors, lighting, heaters, general loads
- Part Number: ATDR1-6/10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
- UPC : 782001900939
- GTIN : 00782001900939
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.02
- Certification : UL/CSA
