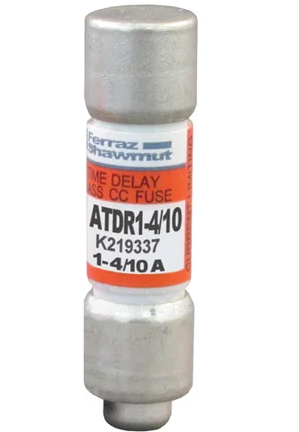

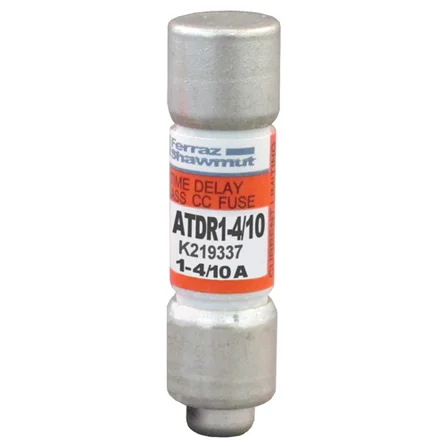

ATDR1-4/10 - Ferraz Shawmut Mersen 1.4A 600V Class CC Time Delay Fuse, Cylindrical, 200kA Interrupt, UL/CSA, Motor Protection

ATDR1-4/10

ATDR1-4/10 is a Ferraz Shawmut Mersen time delay, Class CC fuse designed for reliable protection of small motors and sensitive branch circuits.

This highly current-limiting fuse features a time delay characteristic to withstand motor inrush currents without nuisance tripping, making it ideal for applications requiring frequent motor starts and stops. The rejection-style design helps prevent installation errors, and the fiberglass body ensures durability in harsh environments. The fuse is UL and CSA certified for safety and compliance.

Key Specifications
• Amperage: 1.4A
• Voltage: 600V AC, 300V DC
• Poles: Not applicable (fuse)
• Mounting Type: Ferrule terminal, cylindrical body
• Interrupt Rating: 200kA AC, 100kA DC
• Series/Frame: ATDR, Class CC
• Trip Unit: Time delay (motor start inrush tolerant)
• Certifications: UL 248/248-4, CSA C22.2
• Body Size: 1.5" length, 0.41" diameter
• Body Material: Fiberglass with nickel-plated endcaps
• Application: Motor protection, IEC Type 2 "no damage"
• Features: High visibility orange label, metal embossed catalog number

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ATDR1-4/10
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 78200190849
• GTIN : 00782001908492
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.02
• Certification : UL/CSA
