ATDR1-1/8 - Mersen Ferraz Shawmut 1.125A 600V Class CC Time-Delay Fuse

ATDR1-1/8

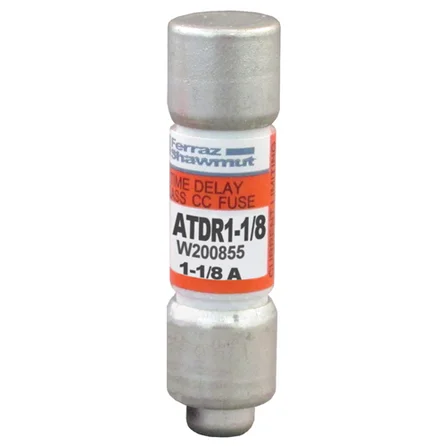

ATDR1-1/8 is a 1.125 amp, 600 volt Class CC time-delay fuse from Mersen Ferraz Shawmut designed for reliable circuit protection.

This fuse features a time-delay characteristic ideal for motor starting and inrush currents, preventing nuisance openings. It offers high current-limiting capability for low peak let-thru current and improved cycling ability for frequent motor starts and stops. The fiberglass body ensures durability in industrial environments, and the rejection-style design prevents replacement errors when used with recommended fuse blocks. It is UL and CSA listed, suitable for branch circuit protection, lighting, heating, and small motor applications.

Key Specifications
• Amperage: 1.125 A
• Voltage Rating: 600 V
• Fuse Class: Class CC
• Speed/Characteristic: Time Delay
• Poles: Single Pole
• Mounting Type: Fuse Block (rejection style)
• Interrupt Rating: High current-limiting
• Body Material: Fiberglass
• UL Listed: Yes (File E2137)
• CSA Certified: Yes (Class 1422-02 Guide 012636_0)
• Applications: Motor starting, lighting, heating, branch circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ATDR1-1/8
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : ATDR
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 782001908485
• GTIN : 00782001908485
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.02
• Certification : UL/CSA
