Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

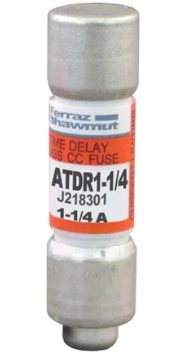

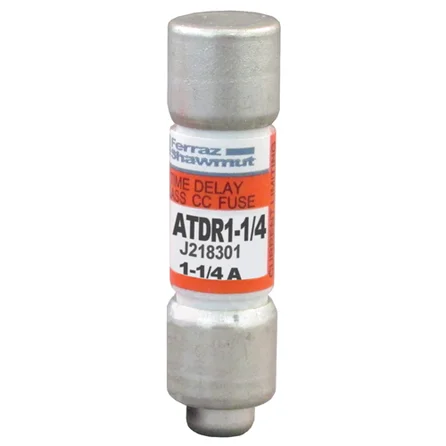

ATDR1-1/4
ATDR1-1/4 is a Mersen Class CC time-delay fuse designed for reliable branch circuit protection in industrial and commercial applications. This fuse provides IEC Type 2 "no damage" protection and is suitable for use in sensitive equipment requiring precise overcurrent protection. The ATDR1-1/4 fuse features a 600VAC/300VDC rating, 1.25A amperage, and a current-limiting, rejection-type design. It is UL 248/248-4 and CSA C22.2 listed, ensuring compliance with North American safety standards. The compact size and high interrupt rating make it ideal for use in control panels and power distribution systems.
- Part Number: ATDR1-1/4
- Manufacturer: Mersen
- Amperage: 1.25A
- Voltage Rating: 600VAC / 300VDC
- Fuse Class: CC
- Fuse Type: Time-Delay, Current-Limiting
- Interrupt Rating: 200kA
- Mounting Type: Rejection Type
- Series/Frame: Amp-Trap 2000®
- Certifications: UL 248/248-4, CSA C22.2
- IEC Type 2 "No Damage" Protection
- Dimensions: 1.5" Length, 0.41" Diameter
Specifications
- Part Number: ATDR1-1/4
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001901097
- GTIN : 00782001901097
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
