Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ATC-5

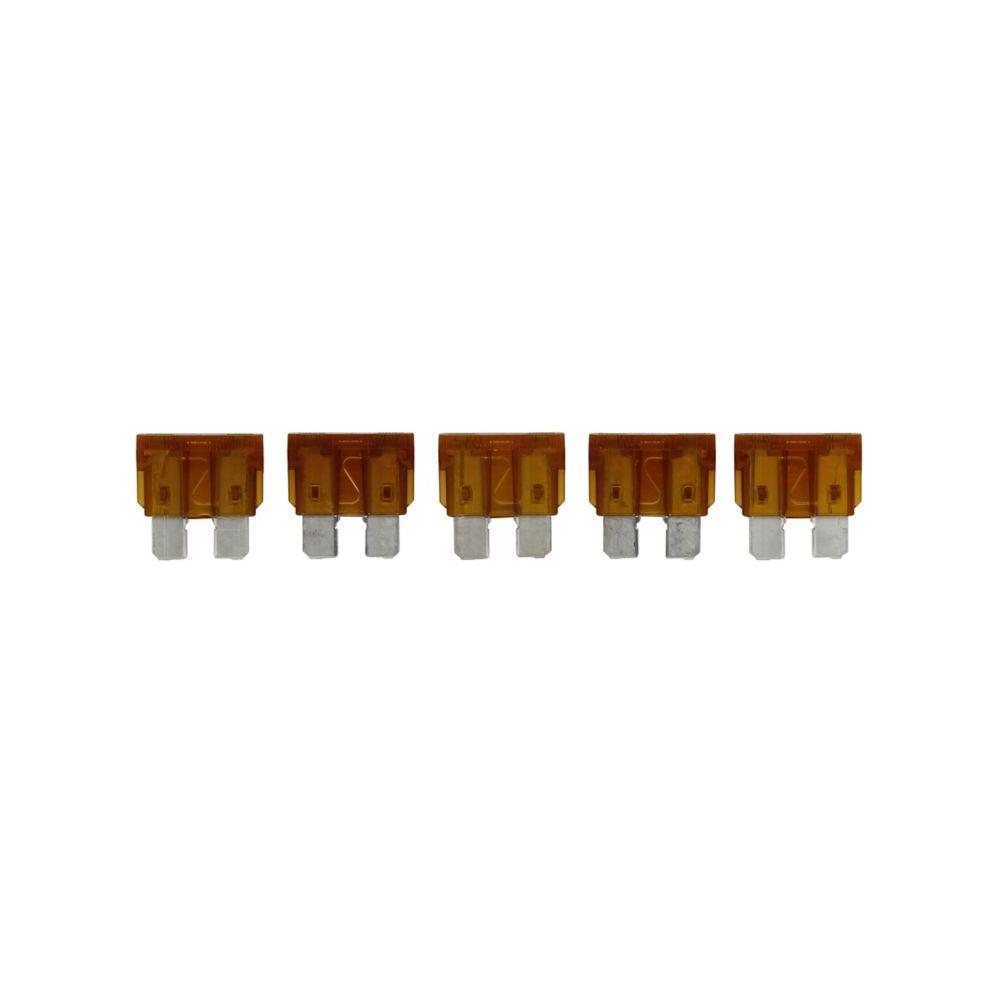

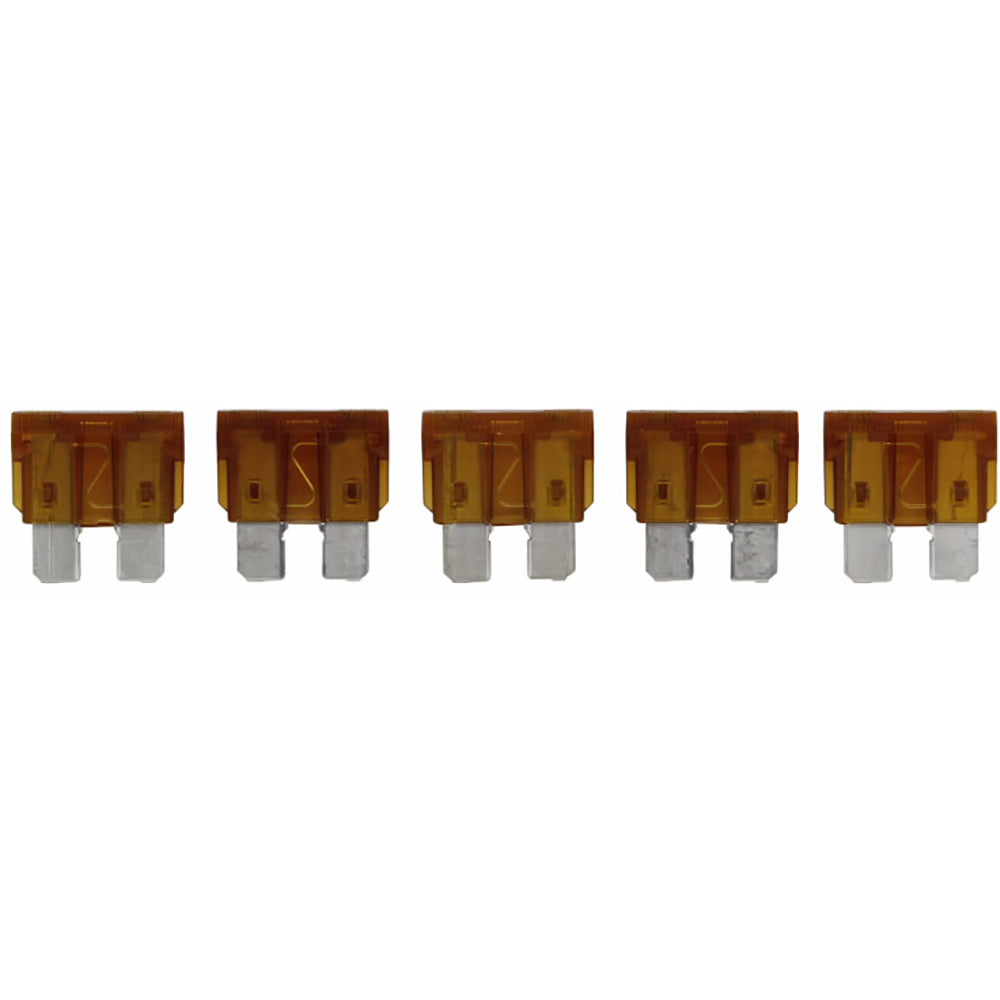

ATC-5 is a 5 amp, 32 VDC blade fuse from Eaton Bussmann designed for automotive and low-voltage control circuits.This fuse features a fast-acting single element with tin-plated zinc terminals and blade body for corrosion resistance and enhanced conductivity. It has a 1 kA interrupt rating and complies with UL Recognized standards, ISO 8820-3, JASO 612, and SAE J1284 certifications. The fuse operates reliably in temperatures from -40°C to +100°C and is RoHS compliant.
- Amperage Rating: 5 A
- Voltage Rating: 32 VDC
- Interrupt Rating: 1 kA
- Fuse Type: Blade, Non-Indicating
- Element: Single, Fast-Acting
- Terminals: Tin-Plated Zinc
- Operating Temperature: -40°C to +100°C
- Certifications: UL Recognized, ISO 8820-3, JASO 612, SAE J1284
- RoHS Compliant
- Application: Automotive and Low-Voltage Control Circuits
Specifications
- Part Number: ATC-5
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ATC Series
- Type : ATC
- Voltage : 32
- AIC rating : 1000A@32Vdc
- Connection : Blade
Product Data
- UPC : 05171270322
- GTIN : 00051712703222
- Country of Origin : Japan
- Dimensions : 1.63 in x 0.38 in x 1.38 in (Length/Depth x Height x Width)
- Weight : 0.03 lb
- Certification : UL Recognized Guide JFHR2, File E56412
