Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

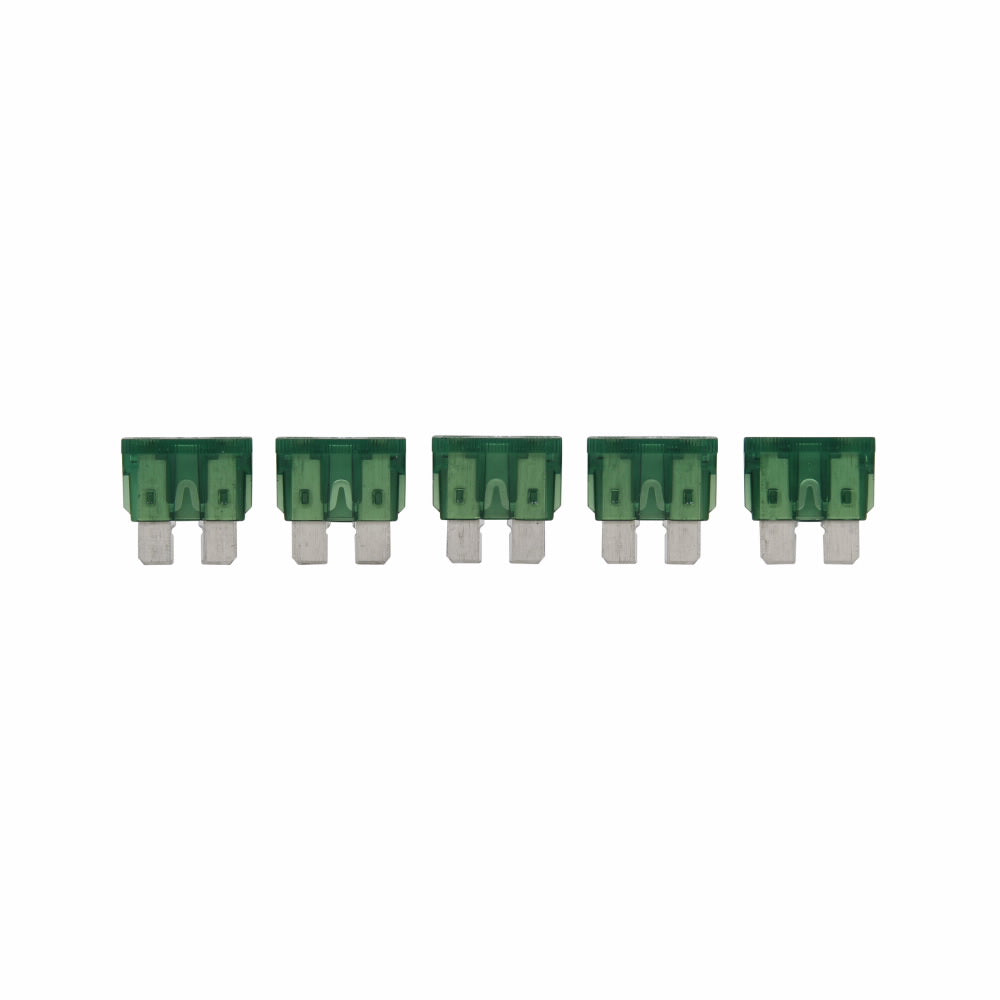

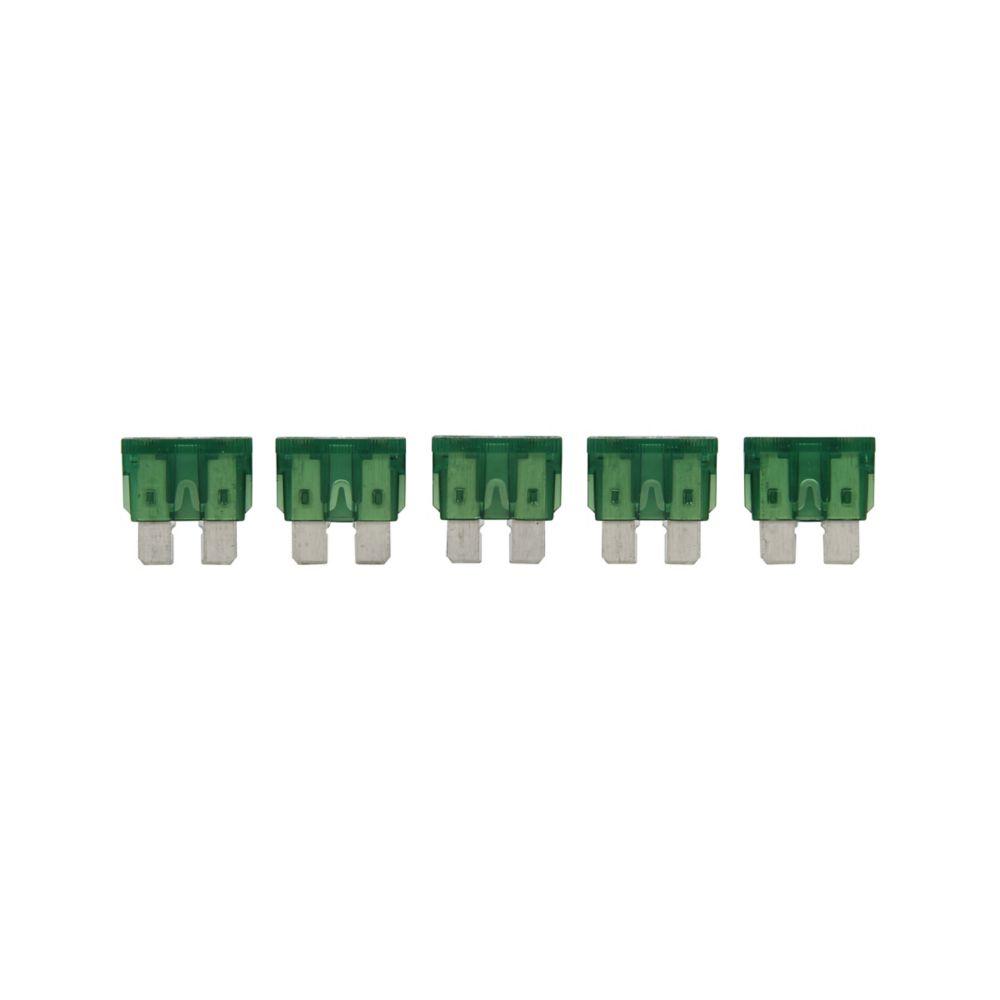

ATC-30
ATC-30 is an Eaton Bussmann series ATC blade fuse rated for 30 amps and 32 Vdc with a 1 kA interrupt rating.ATC-30 features a non-indicating, fast-acting blade fuse design with a green colored plastic housing suitable for automotive and low voltage control circuit applications. It is UL listed and RoHS compliant.
- Key Specifications
- Amperage Rating: 30 A
- Voltage Rating: 32 Vdc
- Interrupt Rating: 1 kAIC
- Fuse Type: ATC Blade Fuse
- Color: Green
- Fuse Indicator: Non-indicating
- Housing Material: UL-rated thermoplastic
- Certifications: UL Listed, RoHS Compliant
- Operating Temperature Range: -40°F to 212°F
- Blade Width: 5.25 mm
- Mounting Type: Blade end
Specifications
- Part Number: ATC-30
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ATC Series
- Type : ATC
- Voltage : 32
- Amperage : 30
- AIC rating : 1000A@32Vdc
- Connection : Blade
Product Data
- UPC : 051712703284
- GTIN : 00051712703284
- Country of Origin : Japan
- Dimensions : 1.63 in x 0.38 in x 1.38 in (Length/Depth x Height x Width)
- Weight : 0.03
- Certification : UL Recognized Guide JFHR2, File E56412
