Product Info
- Manufacturer:Appleton
- Sub-Category:Pin-and-sleeve plug/receptacle system
Description
ARC3034BC

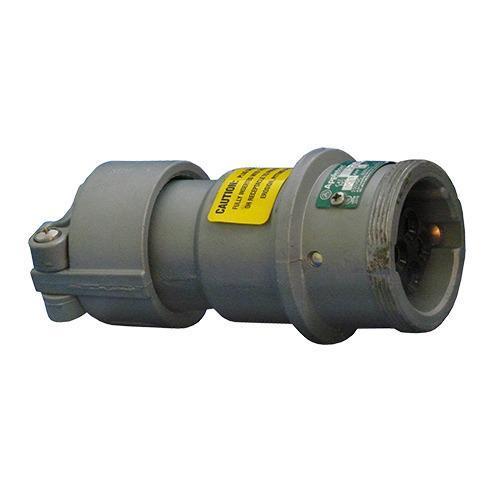

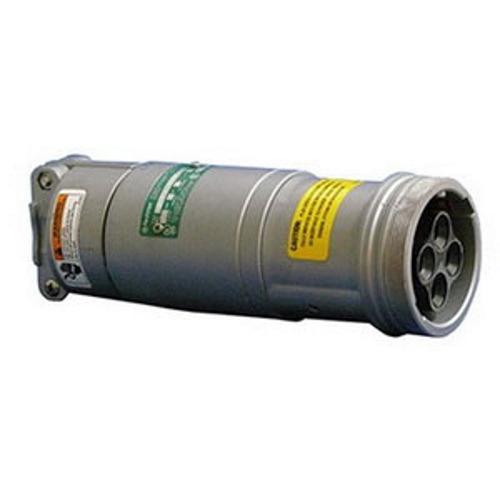

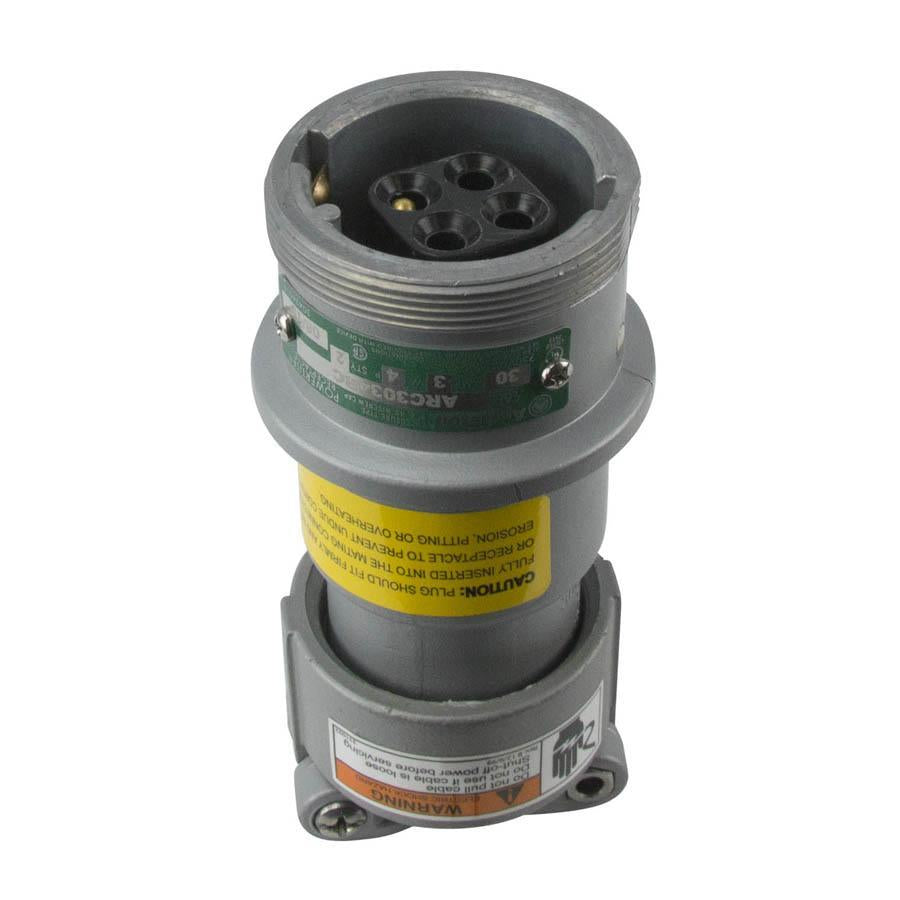

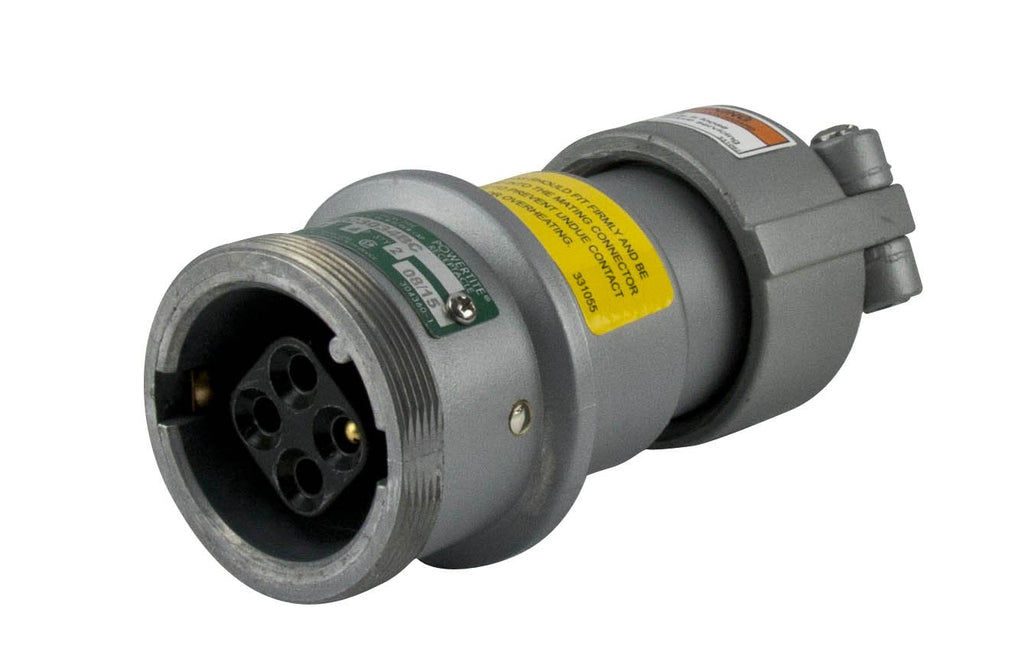

ARC3034BC is a rugged pin and sleeve connector body designed for demanding industrial and outdoor power distribution applications. This Appleton Powertite connector features a copper-free aluminum housing with epoxy powder coat finish, providing excellent corrosion resistance and durability. It is rated for 30A at 600VAC/250VDC, with 4 poles and 3 wires, and is suitable for use with ACP3034BC metallic clamping ring plugs. The connector is ideal for portable or fixed equipment such as motor generator units, welders, pumps, compressors, and cellular relay stations, especially in harsh environments like shipping docks, ports, oil platforms, and refineries. Engineered for rough usage, the ARC3034BC connector body offers weatherproof, water-resistant performance with a NEMA 3/3R/4/4X rating. It features pressure wire terminals, a wide temperature range (-40 to 107°C), and is certified to CSA C22.2 No. 182.1, UL 1682, UL 1686, and RoHS standards. The connector supports wire sizes from 10-6 AWG (building) and 10-8 AWG (extra flex), with a cable outer diameter range of 0.5 to 1.125 inches.
- Part Number: ARC3034BC
- Manufacturer: Appleton
- Amperage Rating: 30A
- Voltage Rating: 600VAC/250VDC
- Number of Poles: 4
- Number of Wires: 3
- Mounting Type: Connector Body (for use with ACP3034BC plug)
- Interrupt Rating: Not applicable (connector body)
- Series/Frame: Powertite
- Grounding Style: 2 (shell and extra pole)
- Material: Copper-free aluminum, epoxy powder coat finish
- Temperature Rating: -40 to 107°C
- Wire Size: 10-6 AWG (building), 10-8 AWG (extra flex)
- Cable OD Range: 0.5 to 1.125 inches
- Approvals: CSA C22.2 No. 182.1, UL 1682, UL 1686, RoHS
- NEMA Rating: 3/3R/4/4X
- Frequency Rating: 50-400 Hz
Additional Information
Industrial duty; interlocked/with-switch options
Specifications
- Part Number: ARC3034BC
- Manufacturer : Appleton
- Brand : Appleton
- Category : Wiring Devices
- Item Subcategory : Pin-and-sleeve plug/receptacle system
- Family : ARC
- Voltage : 600 AC
Product Data
- UPC : 781381440578
- GTIN : 00781381000000
- Country of Origin : Mexico
- Dimensions : 10.5 in L x 3.13 in W
- Weight : 3 lb
- Certification : CSA Certified 065179, CSA Certified C22.2 No. 182.1, UL 1682, UL 1686, UL 50E, UL E145916, UL E145917
