Product Info
- Manufacturer:Appleton
- Sub-Category:Pin-and-sleeve plug/receptacle system
Description
ARC20044E

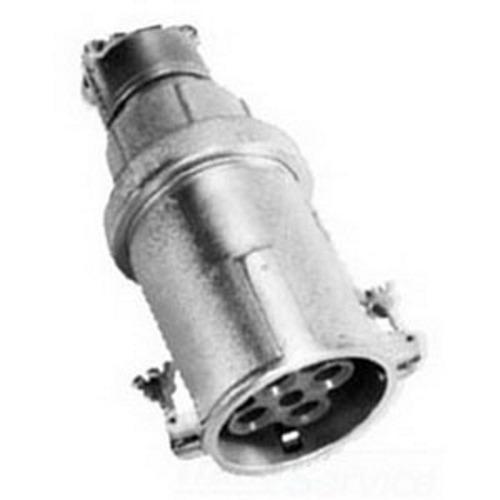

ARC20044E is an Appleton Powertite Series pin and sleeve connector body designed for safe, reliable power distribution to portable and fixed electrical equipment in heavy-duty industrial applications. This 3-phase grounding style 1 weatherproof connector body features a robust construction with widely spaced contacts recessed within an internal arc snuffing chamber, natural finish glass-filled polyester insulating blocks, and a durable neoprene sealing bushing that prevents water entrance and resists hydrocarbon deterioration. The connector ensures controlled contact engagement with ground making first and breaking last for added safety, while constant pressure along the entire contact surface maintains electrical continuity.
- Amperage Rating: 200 A
- Voltage Rating: 600 V AC / 250 V DC
- Number of Poles: 4
- Number of Wires: 4
- Wire Size: 2/0 AWG - 250 MCM
- Series: ARC (Powertite)
- Grounding Style: 1, Shell
- Temperature Rating: -40 to 225 deg F
- Frequency Rating: 50/400 Hz
- NEMA Rating: NEMA 3/3R/4/4X
- Terminal Type: Pressure Wire
- Material: Copper Free Aluminum with Glass-Filled Polyester Insulating Blocks
Additional Information
Industrial duty; interlocked/with-switch options
Specifications
- Part Number: ARC20044E
- Manufacturer : Appleton
- Brand : Appleton
- Category : Wiring Devices
- Item Subcategory : Pin-and-sleeve plug/receptacle system
- Family : ARC
- Voltage : 600/250 600/250 /DC
- Amperage : 200A
Product Data
- UPC : 781381447676
- GTIN : 00781381000000
- Dimensions : 13 in L x 5-3/4 in W
- Weight : 12 lb
