Product Info
- Manufacturer:Appleton
- Sub-Category:Pin-and-sleeve plug/receptacle system
Description
ARC20044CD

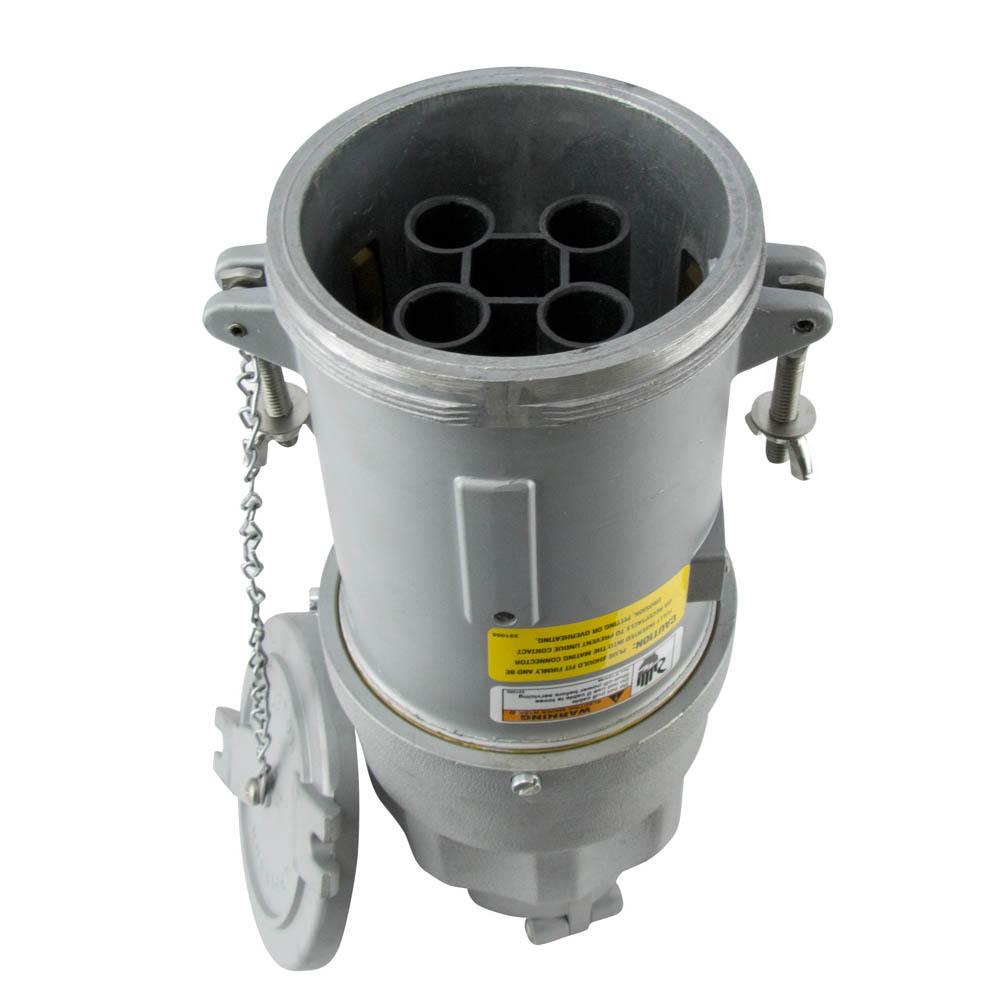

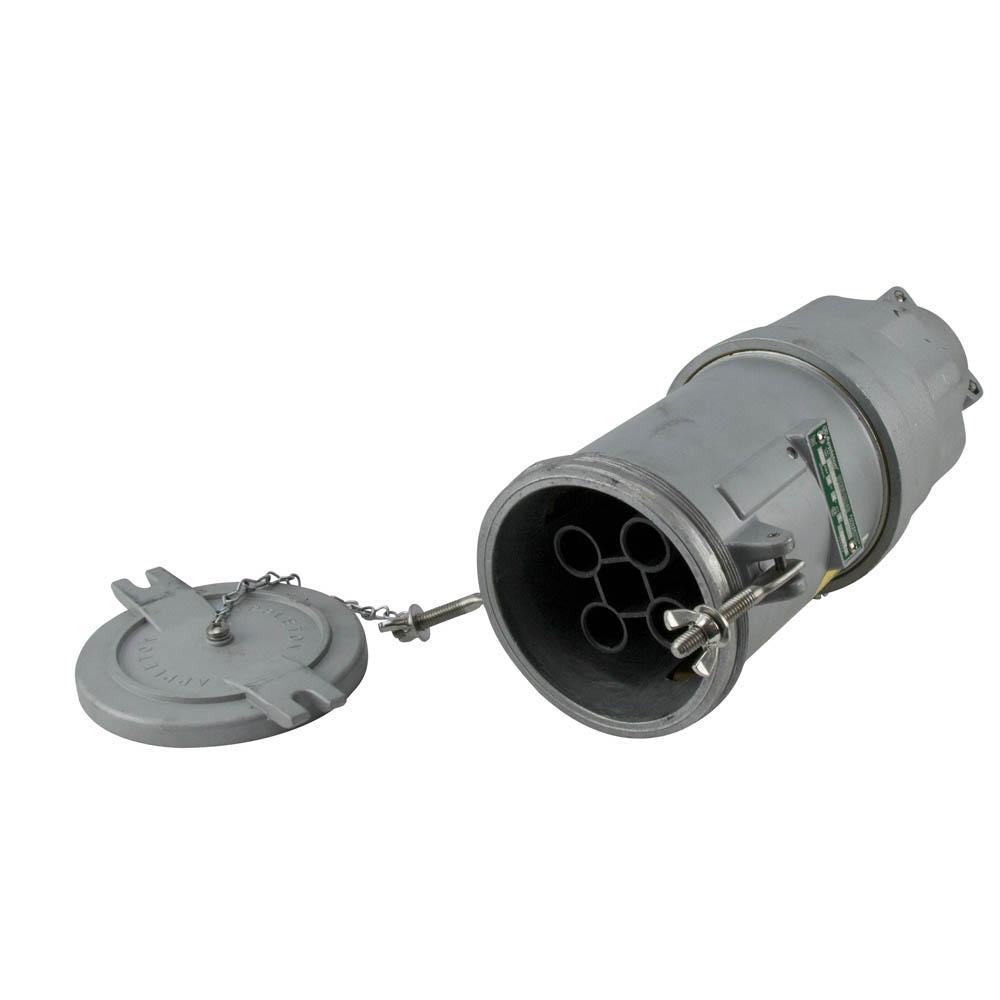

ARC20044CD is a 200 Amp, 4-pole, 4-wire pin-and-sleeve connector body by Appleton designed for heavy-duty industrial applications.This connector features a Style 1 grounding design, rated for 600V AC and 250V DC operation. It accommodates wire sizes from 2/0 AWG to 250 MCM with a cable outer diameter range of 0.875 to 1.906 inches. Constructed from epoxy powder coated copper-free aluminum, it offers durability and corrosion resistance suitable for demanding environments. The connector meets NEMA 4X standards for protection against water and corrosion.
- Key Specifications
- Amperage: 200A
- Voltage Rating: 600V AC / 250V DC
- Poles: 4
- Wires: 4
- Style: Grounding Style 1
- Material: Epoxy Powder Coated Copper-Free Aluminum
- Cable Diameter Range: 0.875" - 1.906"
- Wire Size Range: 2/0 AWG to 250 MCM
- NEMA Rating: 4X
- Temperature Rating: -40 to 107°C
- Part Number: ARC20044CD
- Manufacturer : Appleton
- Brand : Appleton
- Item Subcategory : Pin-and-sleeve plug/receptacle system
- Amperage : 200A
- UPC : 781381447621
- GTIN : 00781381447621
- Weight : 5.19
Additional Information
Industrial duty; interlocked/with-switch options
