Product Info
- Manufacturer:Appleton
- Sub-Category:Pin-and-sleeve plug/receptacle system
Description
ARC20034E

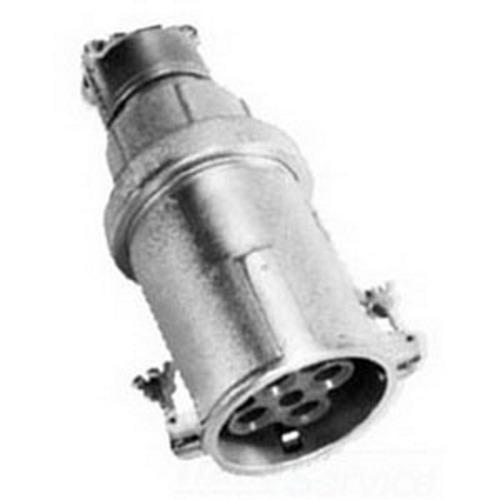

ARC20034E is a 200 amp, 600 volt, 4-pole connector body from Appleton's Powertite series designed for reliable power distribution connections.
This connector features a 4-pole, 3-wire configuration suitable for 3-phase applications, rated for 600 VAC at 50-400 Hz and 250 VDC. It supports wire sizes from 00 AWG to 250 kcmil and is constructed with triple-coated, copper-free aluminum for durability in harsh environments. The device uses a positive polarization design and pressure wire terminals for secure connections.
- Key Specifications
- Amperage: 200A
- Voltage: 600 VAC / 250 VDC
- Poles: 4
- Wiring: 3-wire, 3-phase
- Series: Powertite
- Mounting Type: Connector Body
- Wire Size Range: 00 AWG to 250 kcmil
- Material: Triple-coated copper-free aluminum
- Frequency: 50-400 Hz
- Connection Type: Pressure wire terminal
- Part Number: ARC20034E
- Manufacturer : Appleton
- Brand : Appleton
- Item Subcategory : Pin-and-sleeve plug/receptacle system
- Amperage : 200A
- UPC : 781381447690
- GTIN : 00781381000000
- Weight : 5.19
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
Industrial duty; interlocked/with-switch options
