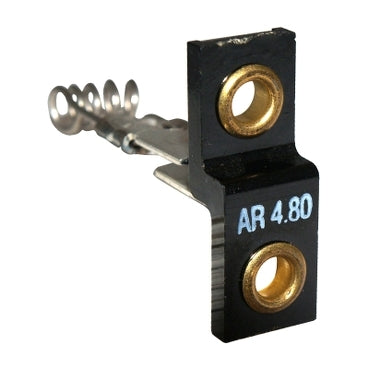

AR4.80 - Square D Thermal Overload Heater Element, 5.54-6.15A, Plug-On Mount, Class 20 Trip

AR4.80

AR4.80 is a Square D thermal overload heater element designed for motor control applications.This heater element is part of the AR series and features a plug-on mounting type. It is ambient compensated bimetallic with a Class 20 motor tripping characteristic. The heater is suitable for motor full load amps (FLA) ranging from 5.54 to 6.15 amps and is used with separately mounted overload relays. It supports NEMA sizes 7 and 8 and provides a standard trip unit for reliable motor protection.

Key Specifications
• Manufacturer: Square D
• Part Number: AR4.80
• Category: Motor Control - Thermal Overload Heater
• Series: AR
• Mounting Type: Plug-On
• Motor FLA Range: 5.54 to 6.15 Amps
• Trip Class: 20 (Standard Trip)
• NEMA Size: 7, 8
• Thermal Overload Type: Ambient Compensated Bimetallic
• Reset Type: Manual or Auto
• Weight: Approx. 0.05 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: AR4.80
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Heater Element



Product Data

• UPC : 785901586463
• GTIN : 00785901586463
• Dimensions : Depth 9.56 in (242.82 mm) Width 18.16 in (461.26 mm) Height 31.50 in (800.10 mm)
• Weight : 0.031
