Product Info
- Manufacturer:Appleton
- Sub-Category:Pin-and-sleeve plug/receptacle system
Description
AR20044

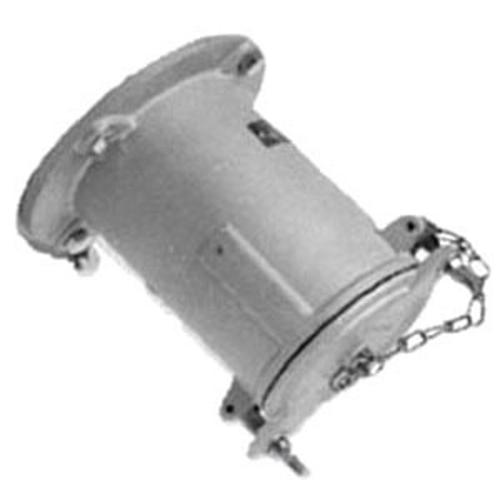

AR20044 is a heavy-duty Appleton Powertite pin and sleeve receptacle designed for industrial wiring applications.This 4-pole, 4-wire receptacle supports 200 amps and is rated for 600 volts AC and 250 volts DC. It features a positive polarization design with epoxy powder-coated copper-free aluminum construction for durability and corrosion resistance. The device is suitable for 3-phase power distribution and complies with UL 1682, UL 1686, UL 50E, and CSA C22.2 certifications. It is rated for use in harsh environments with a temperature range of -40 to 225 degrees Fahrenheit and includes pressure wire terminals. The AR20044 is part of Appleton's AR Series and offers grounding Style 1 for safety.
- Key Specifications
- Amperage: 200 A
- Voltage: 600 V AC / 250 V DC
- Poles: 4
- Wires: 4
- Material: Epoxy powder-coated copper-free aluminum
- Series: AR Series Powertite
- Grounding Style: 1
- Temperature Rating: -40 to 225 °F
- Certifications: UL 1682, UL 1686, UL 50E, CSA C22.2
- Terminal Type: Pressure wire
- Mounting Type: Receptacle assembly
Additional Information
Industrial duty; interlocked/with-switch options
Specifications
- Part Number: AR20044
- Manufacturer : Appleton
- Brand : Appleton
- Category : Wiring Devices
- Item Subcategory : Pin-and-sleeve plug/receptacle system
- Family : AR Series
- Voltage : 600/250 600/250 /DC
- Amperage : 200A
Product Data
- UPC : 781381131575
- GTIN : 00781381131575
- Dimensions : 8 in H x 6.63 in W
- Weight : 11 lb
