Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Busway
- Series
- I-Line II
- Frame
- AP
- Rated current
- 800
- Voltage
- 600V
- Phases
- 3
- Wires
- 4
- Country of origin
- United States
- UPC
- 78590106142
- GTIN
- 00785901061427
- Dimensions
- Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight
- 120.48
Show all specifications (1 more)
- Certification
- UL listed file E22182
Product description & additional details
AP2508G10ST

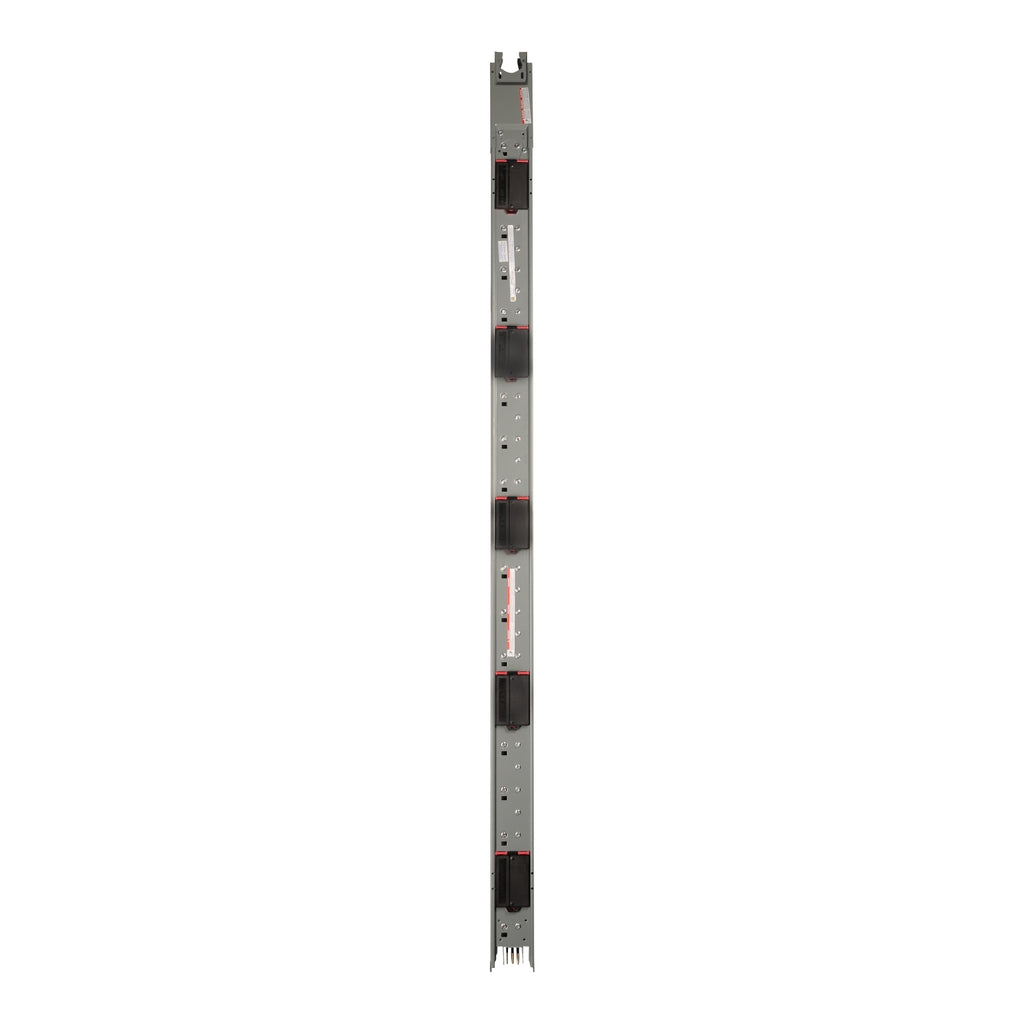

AP2508G10ST is a Square D I-Line II series plug-in busway designed for industrial power distribution systems requiring high-capacity current delivery. This straight-length busway section features aluminum busbars rated for 800 amperes at 600 volts AC in a 3-phase, 4-wire configuration with integral ground bus. The plug-in design allows for flexible connection of bus plugs and other distribution components along the busway run.
- Amperage Rating: 800 Amps
- Voltage Rating: 600 VAC
- Phase Configuration: 3-Phase, 4-Wire
- Busbar Material: Aluminum
- Series: I-Line II
- Mounting Type: Plug-In
- Length: 10 Feet
- Integral Ground Bus: Yes
- Enclosure Rating: IP54
- UL Listed: File E22182
- Dimensions: 4.44 in W x 3.09 in D
- Weight: 54.66 lbs
Specifications
- Part Number: AP2508G10ST
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Busway
- Family : I-Line II
- Type : AP
- Voltage : 600
- Amperage : 800
- Phase : 3
- Wire : 4
Product Data
- UPC : 78590106142
- GTIN : 00785901061427
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 120.48
- Certification : UL listed file E22182
