Product Info
- Manufacturer:Appleton
- Sub-Category:Pin-and-sleeve plug/receptacle system
Description
AP20044ERS

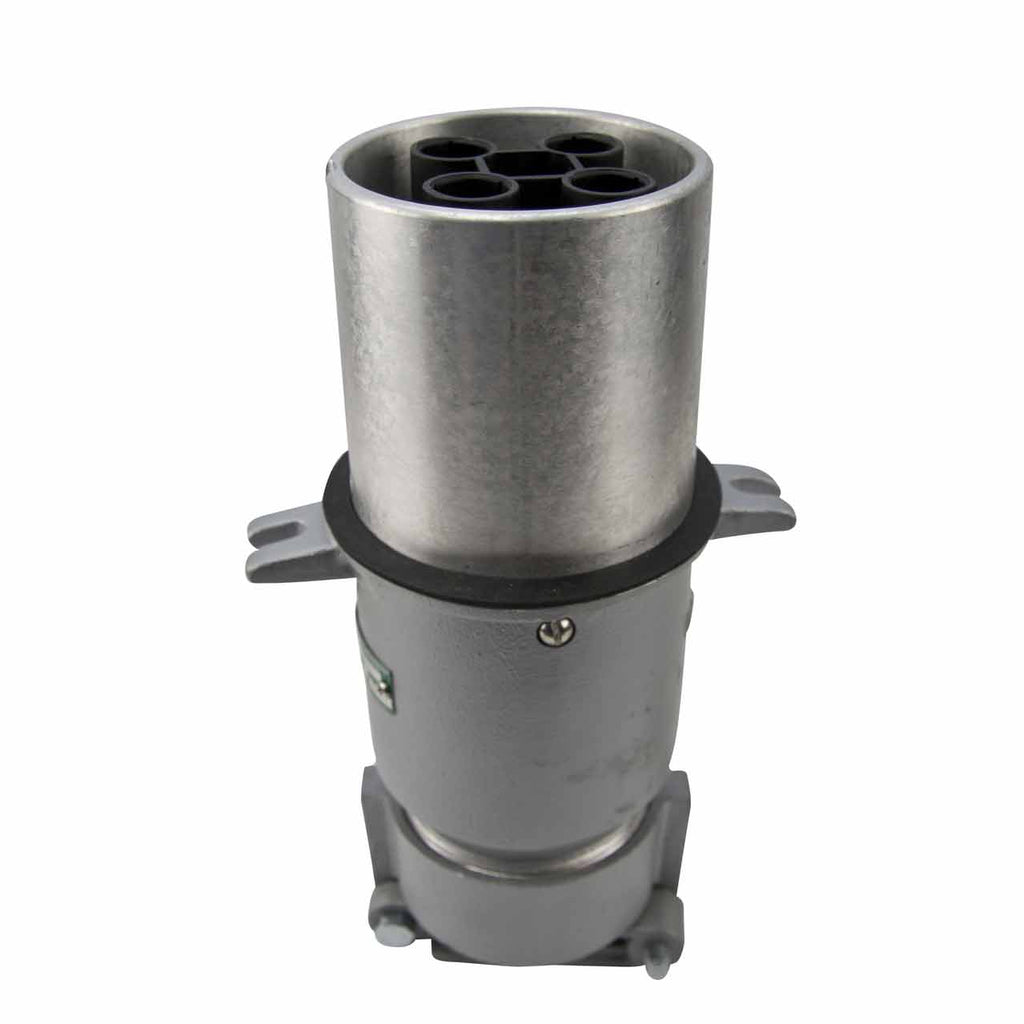

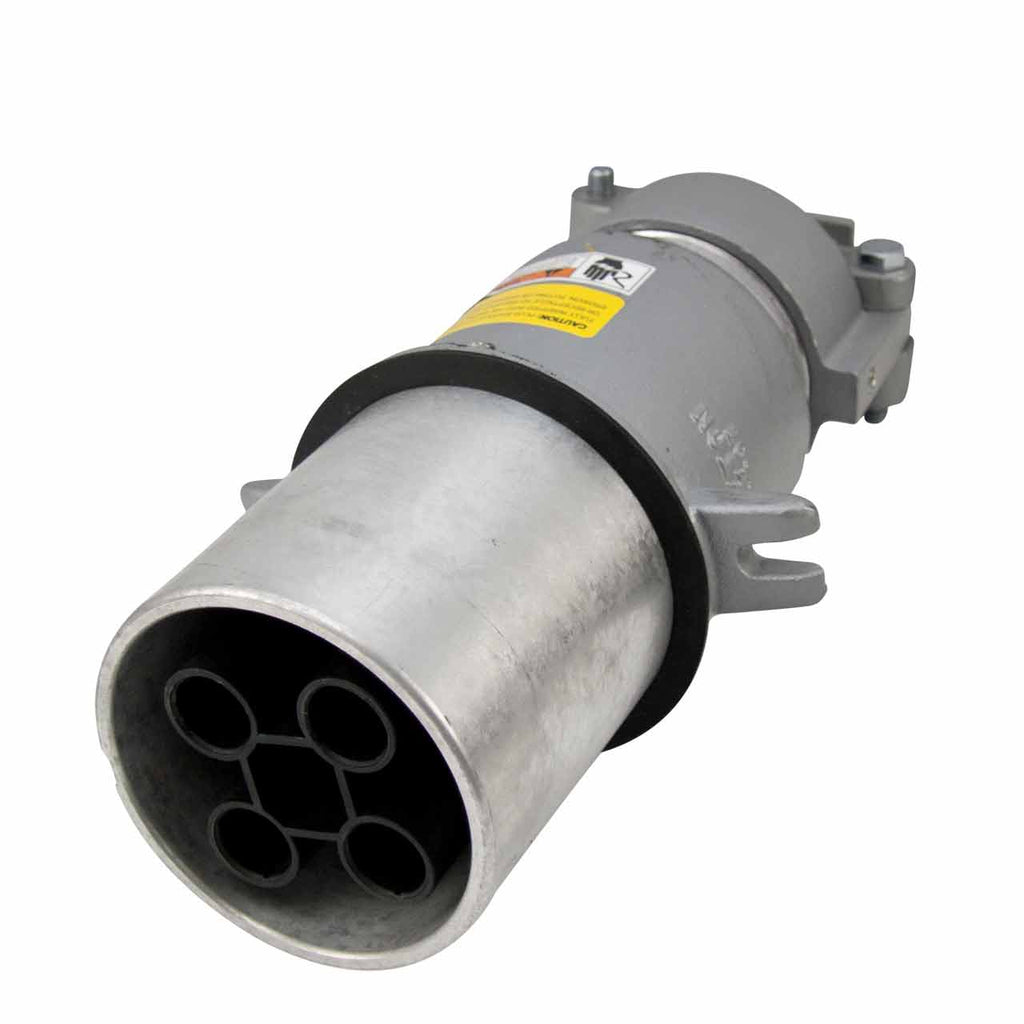

AP20044ERS is a 200 Amp, 600 Volt, 4-pole, 4-wire pin and sleeve plug from Appleton designed for industrial wiring applications.AP20044ERS features a robust copper-free aluminum construction with epoxy powder coating, suitable for harsh environments with NEMA 3/3R/4/4X ratings. It supports 3-phase grounding style 1 connections, operates at 50/400 Hz frequency, and is rated for temperatures from -40 to 225 degrees Fahrenheit. The plug uses pressure wire terminals and accommodates wire sizes from 2/0 AWG to 250 MCM.
- Key Specifications
- Amperage: 200 A
- Voltage Rating: 250/600 VAC/VDC
- Number of Poles: 4
- Number of Wires: 4
- Series: AP Series
- Mounting Type: Pin and Sleeve Plug
- Interrupt Rating: NEMA 3/3R/4/4X
- Temperature Rating: -40 to 225 °F
- Terminal Type: Pressure Wire
- Material: Copper Free Aluminum with Epoxy Powder Coating
- Frequency: 50/400 Hz
- Grounding Style: 3-Phase Style 1
Additional Information
Industrial duty; interlocked/with-switch options
Specifications
- Part Number: AP20044ERS
- Manufacturer : Appleton
- Brand : Appleton
- Category : Wiring Devices
- Item Subcategory : Pin-and-sleeve plug/receptacle system
- Family : AP Series
- Voltage : 250/600 250/600 /DC
- Amperage : 200A
Product Data
- UPC : 781381295512
- GTIN : 00781381295512
- Dimensions : 11.94 in L x 6.81 in W
- Weight : 9 lb
