ANN-200 - Eaton Bussmann 200A 125VAC 2-Pole Bolt-Down Circuit Limiter Fuse

ANN-200

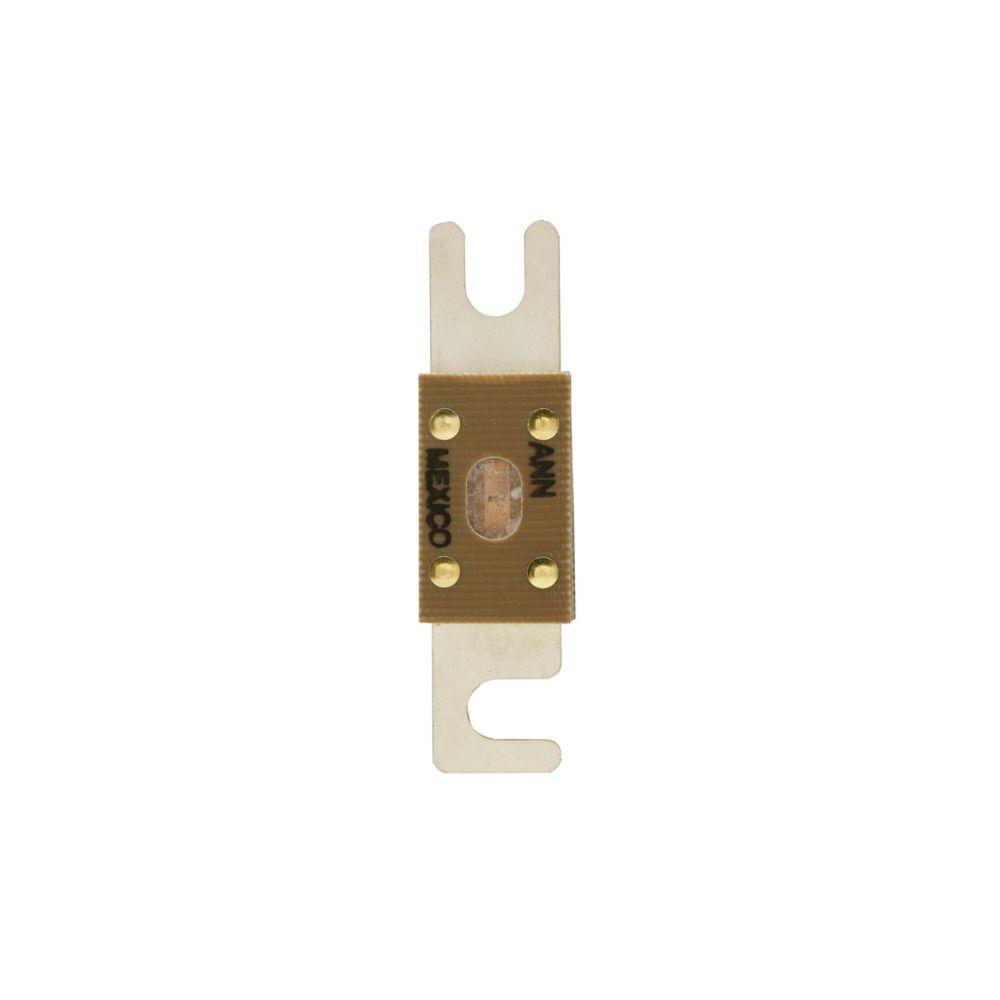

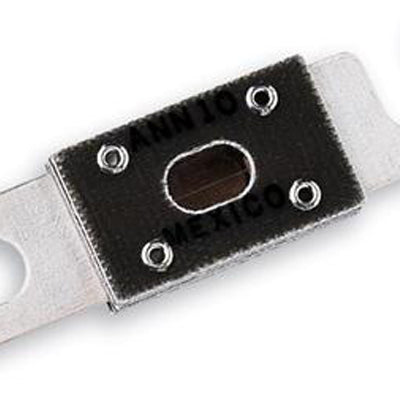

ANN-200 is a 200 amp, 125 VAC very fast-acting circuit limiter fuse from Eaton Bussmann designed for high-current applications.This ANN Series fuse features a bolt-down mounting style with a stud connection, providing a reliable and secure installation. It has an interrupt rating of 2.7 kA at 80 VDC and 2.5 kA at 125 VAC, suitable for low voltage protection. The fuse is blade end x blade end type with a visible open link element through a mica window for easy inspection. It is recommended for use with Cooper Bussmann 4164 ANN/ANL fuse holders and is ideal for applications requiring fast response to short-circuit currents.

Key Specifications
• Current Rating: 200 Amps
• Voltage Rating: 125 VAC, 80 VDC
• Interrupt Rating: 2.7 kA at 80 VDC, 2.5 kA at 125 VAC
• Mounting Type: Bolt-Down (Stud)
• Fuse Series: ANN
• Blade End x Blade End Connection
• Very Fast Acting (High-Speed Response)
• Visible Open Link Element Through Mica Window
• Recommended Fuse Holder: Cooper Bussmann 4164 ANN/ANL
• Dimensions: Approx. 3.19" Length x 0.88" Width
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: ANN-200
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Section : Limiters
• Family : ANN Series
• Type : ANN



Product Data

• UPC : 05171270634
• GTIN : 00051712706346
• Country of Origin : Mexico
• Dimensions : 3.38 in x 1.62 in x 0.95 in (Length/Depth x Height x Width)
• Weight : 0.27
• Certification : CE, CSA Certification Class 1422-30, UL Guide JFHR2
