Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Part And Accessory
Description

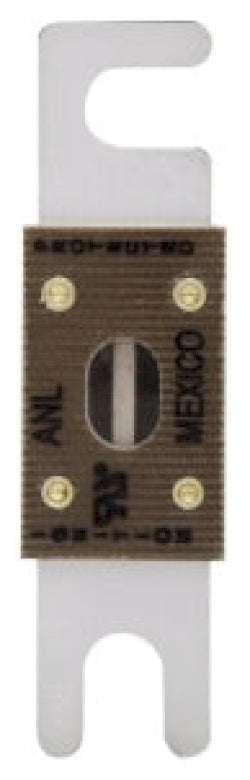

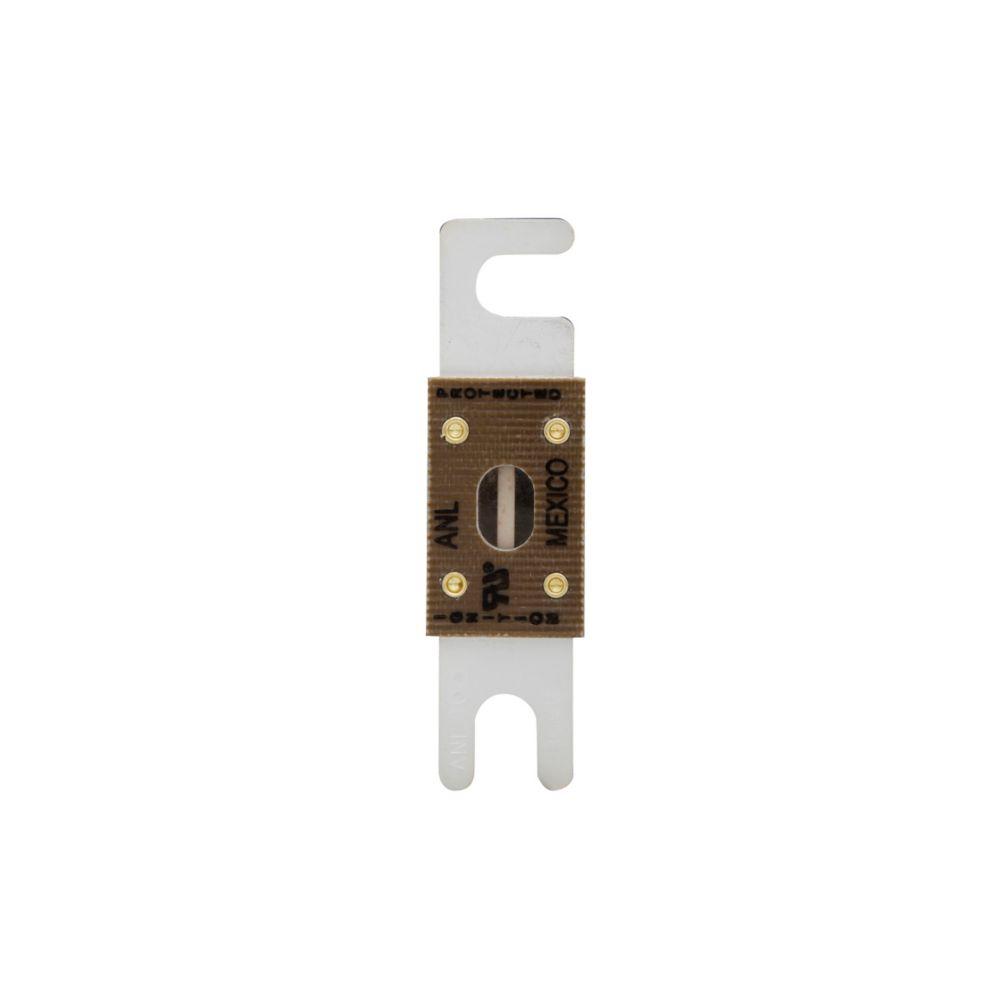

ANL-600
ANL-600 is a high-current, non-time-delay low voltage limiter fuse designed for battery-operated systems requiring reliable circuit protection. This Eaton Bussmann series ANL fuse features a stud mounting style and is engineered for easy installation and maintenance in demanding environments. The ANL-600 fuse provides robust protection with a 600A current rating and is suitable for use at up to 80VDC or 32VAC. Its blade end x blade end configuration ensures secure connections, while the clear window allows for easy visual identification of open status. Silver-plated connector blades offer enhanced corrosion resistance for long-lasting performance.
- Current Rating: 600A
- Voltage Rating: 80VDC / 32VAC
- Interrupt Rating: 6kAIC at 32VAC, 2.7kAIC at 80VDC
- Mounting Style: Stud
- Body Style: Flat Body Blade Fuse
- Series: ANL
- Agency Approvals: UL Recognized, SAE J1171 ignition protected, RoHS compliant
- Non-indicating
- Non-time-delay
- Blade end x blade end
- Dimensions: 3.38" long, 0.95" wide, 1.62" tall
- Stud centers: 2.43"
Specifications
- Part Number: ANL-600
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Part And Accessory
- Section : Limiters
- Family : ANL Series
- Type : ANL
Product Data
- UPC : 051712706056
- GTIN : 00051712706056
- Country of Origin : Mexico
- Dimensions : 3.38 in x 1.62 in x 0.95 in (Length/Depth x Height x Width)
- Weight : 0.3
