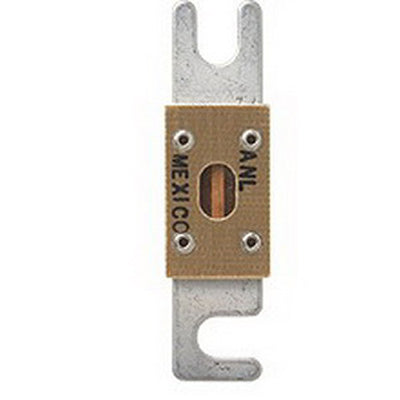

ANL-40 - Eaton Bussmann 40A 32VAC 80VDC Low Voltage Limiter Fuse

ANL-40

ANL-40 is a Bussmann series low voltage limiter fuse by Eaton designed for battery and DC applications requiring reliable circuit protection.ANL-40 features a 40 ampere current rating with voltage ratings of 32 VAC and 80 VDC. It is a non-time-delay (fast-acting) fuse with a flat blade body style and stud mounting. The fuse has a visible element window for easy open status identification and an interrupt rating of 6 kAIC at 32 VAC and 2.7 kAIC at 80 VDC. It is UL Recognized and SAE J1171 ignition protected for certain amperages, compliant with RoHS standards.

Key Specifications
• Current Rating: 40 Amperes
• Voltage Rating: 32 VAC, 80 VDC
• Interrupt Rating: 6 kAIC at 32 VAC, 2.7 kAIC at 80 VDC
• Body Style: Flat Body Blade Fuse
• Mounting Type: Stud Mount
• Timing: Non-Time-Delay (Fast Acting)
• Visible Element Window for Open Status
• UL Recognized, Guide JFHR2, File E56412
• SAE J1171 Ignition Protected (35-500A range)
• RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ANL-40
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Fuse Parts And Accessories
• Family : ANL Series
• Type : ANL

Product Data

• UPC : 05171270608
• GTIN : 00051712706087
• Country of Origin : Mexico
• Dimensions : 3.38 in x 1.62 in x 0.95 in (Length/Depth x Height x Width)
• Weight : 0.3
• Certification : CSA Certification Class 1422-30, SAE J1171, UL Guide JFHR2
