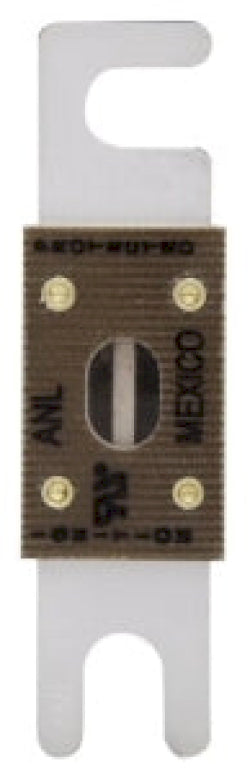

ANL-200 - Eaton Bussmann Series 200A Low Voltage Limiter Fuse, Non-Time-Delay, 80Vdc, Stud Mount

ANL-200

ANL-200 is a Bussmann Series low voltage limiter fuse designed for battery-operated systems, providing reliable fault isolation and easy visual status indication.Engineered for use in demanding environments, the ANL-200 fuse features a non-time-delay design and a clear window for quick identification of open status. It is suitable for applications requiring robust protection up to 200A and 80Vdc, with a stud mounting configuration for secure installation.

• 200A current rating
• 80Vdc maximum voltage
• Non-time-delay operation
• Stud mount terminal
• 2.7kA interrupt rating at 80Vdc
• Bussmann Series frame
• UL Recognized
• SAE J1171 ignition protected
• RoHS compliant
• Clear window for open status indication
• 3.38" long, 0.95" wide, 1.62" tall
• Stud centers: 2.43"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ANL-200
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Fuse Parts And Accessories
• Family : ANL Series
• Type : ANL

Product Data

• UPC : 051712706162
• GTIN : 00051712706162
• Country of Origin : Mexico
• Dimensions : 3.38 in x 1.62 in x 0.95 in (Length/Depth x Height x Width)
• Weight : 0.3
• Certification : CSA Certification Class 1422-30, SAE J1171, UL Guide JFHR2
