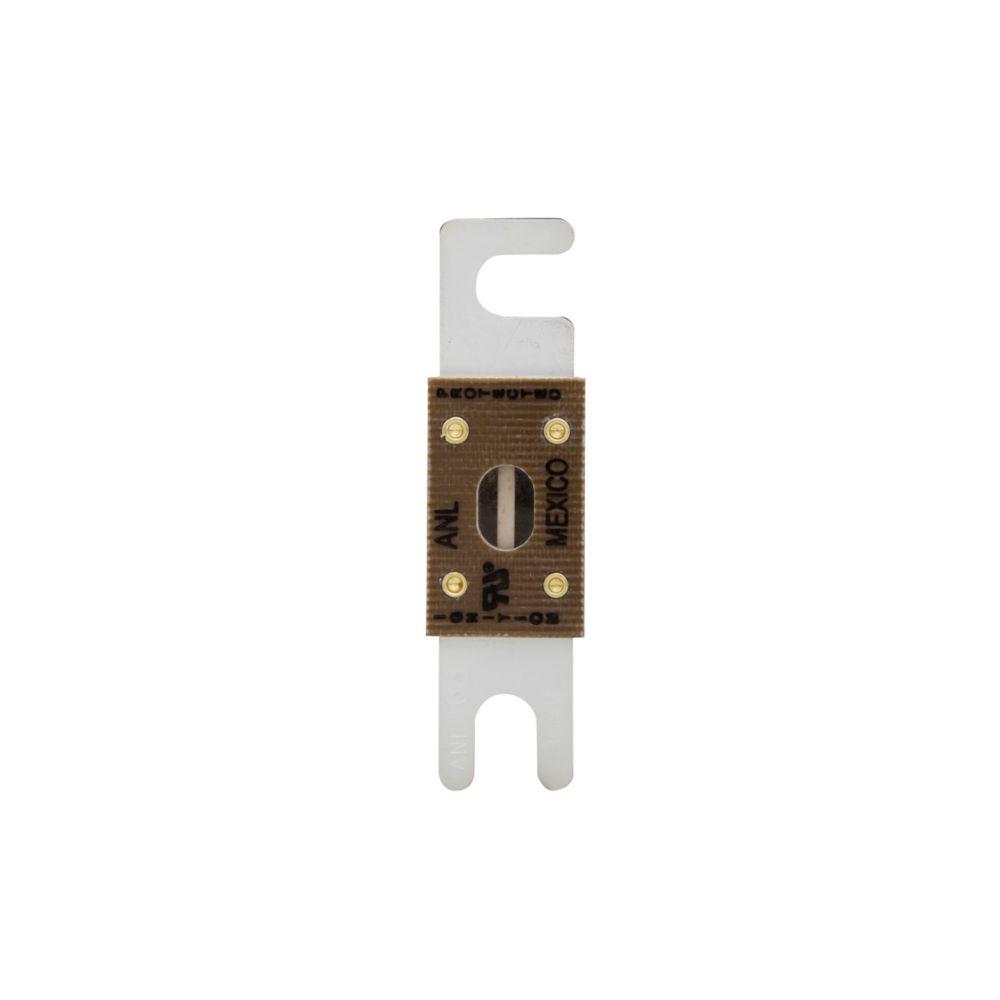

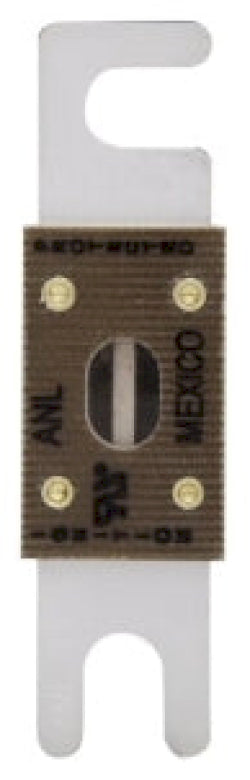

ANL-150 - Eaton Bussmann Series 150A 32VAC 80VDC Non-Time-Delay Low Voltage Limiter Fuse Stud Mount

ANL-150

ANL-150 is a 150A non-time-delay low voltage limiter fuse from Eaton's Bussmann Series, designed for high-current battery and electronic applications with stud mounting and blade end connections.Engineered for reliable circuit protection, the ANL-150 features a clear window for easy open-status identification, silver-plated copper links, and is suitable for use in systems up to 80VDC or 32VAC. This fuse is ideal for marine, automotive, and industrial battery systems requiring robust, visible-status protection.

• 150A current rating
• 80VDC maximum voltage
• 32VAC maximum voltage
• 6 kA interrupt rating at 32VAC
• 2.7 kA interrupt rating at 80VDC
• Stud mounting type
• Blade end x blade end connection
• Non-time-delay
• Visible open status indicator
• UL Recognized
• SAE J1171 ignition protected
• RoHS compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ANL-150
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Fuse Part And Accessory
• Section : Limiters
• Family : ANL Series
• Type : ANL

Product Data

• UPC : 051712706148
• GTIN : 00051712706148
• Country of Origin : Mexico
• Dimensions : 3.38 in x 1.62 in x 0.95 in (Length/Depth x Height x Width)
• Weight : 0.3
• Certification : CSA Certification Class 1422-30, SAE J1171, UL Guide JFHR2
