Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Part And Accessory
Description
ANL-125

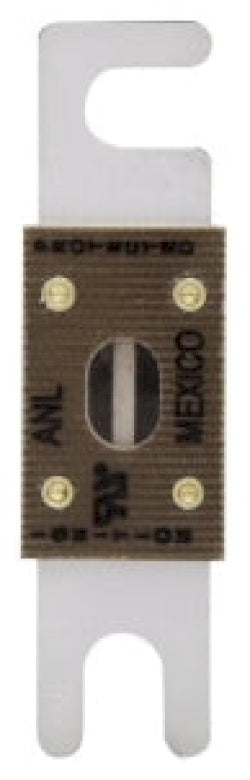

ANL-125 is a non-time-delay low voltage circuit limiter fuse designed for battery operated systems and fault isolation applications. This specialty fuse features a bolt-on mounting style with a glass/melamine body and element visible through a clear window for easy identification of open status. Rated for 80VDC maximum with 125 ampere capacity and 2700 ampere interrupt rating, the ANL-125 meets UL recognition under Guide JFHR2 (File E56412) and SAE J1171 ignition protection standards.
- Current Rating: 125 Amperes
- Voltage Rating: 80VDC or less
- Body Style: Bolt-On
- Body Material: Glass/Melamine
- Interrupt Rating: 2700A
- Mounting: Stud Terminal Block Compatible
- Case Length: 81mm (3.19 inches)
- Width: 22.2mm (0.88 inches)
- UL Recognized (Guide JFHR2, File E56412)
- SAE J1171 Ignition Protected
- RoHS Compliant
- Non-Time-Delay Operation
Specifications
- Part Number: ANL-125
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Part And Accessory
- Section : Limiters
- Family : ANL Series
- Type : ANL
Product Data
- UPC : 051712107518
- GTIN : 00051712107518
- Country of Origin : Mexico
- Dimensions : 3.38 in x 1.62 in x 0.95 in (Length/Depth x Height x Width)
- Weight : 0.3
- Certification : CSA Certification Class 1422-30, SAE J1171, UL Guide JFHR2
