Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Parts And Accessories
Description
ANL-100

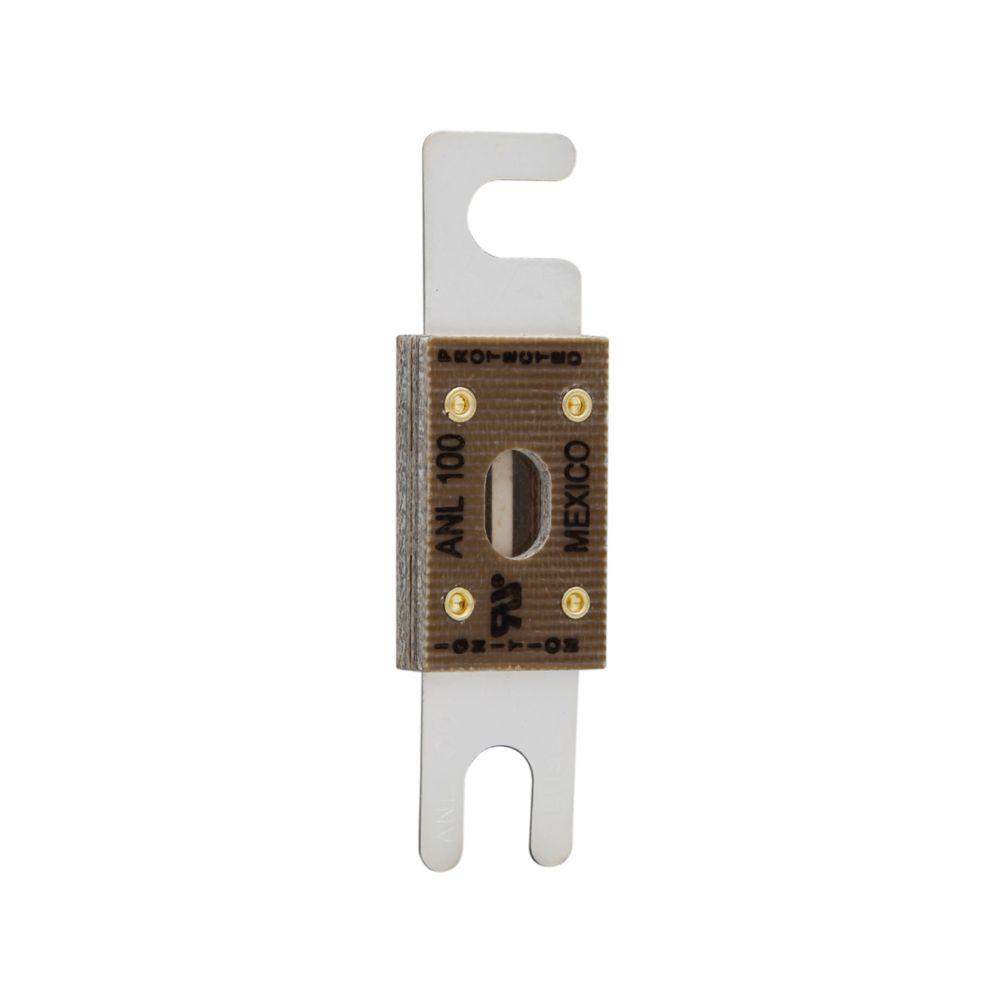

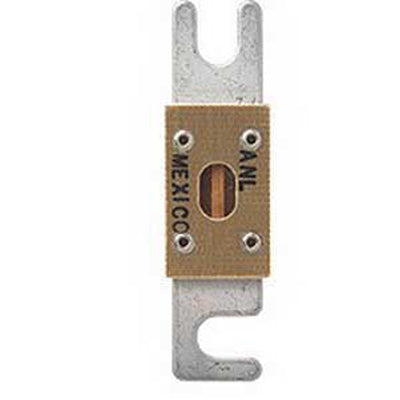

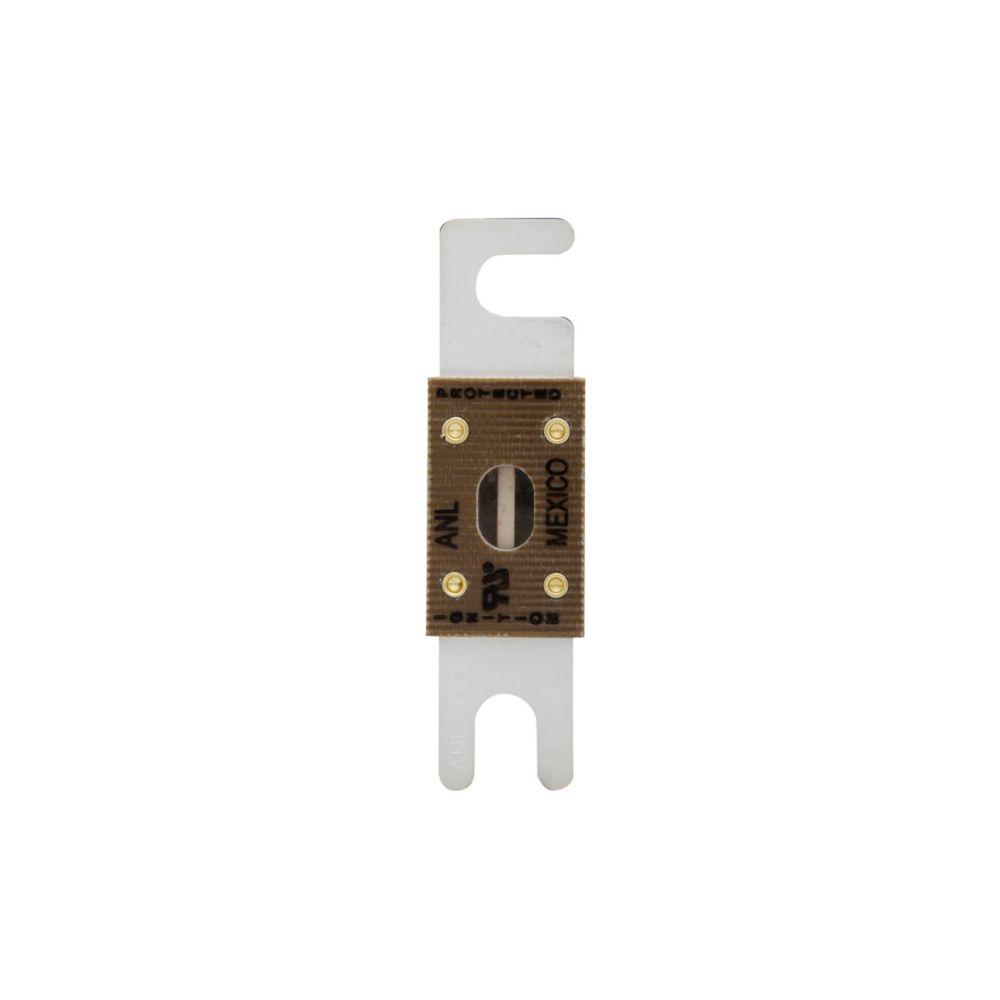

ANL-100 is a 100 amp low voltage limiter fuse from Eaton Bussmann designed for high current applications with bolt-down mounting.
This ANL Series fuse features a non-time-delay design with a voltage rating of 32VAC and 80VDC, silver-plated copper links for corrosion resistance, and a compact size of approximately 7/8" x 3 1/16". It has an interrupting rating of 6,000 amps AC at 32VAC and 2,700 amps DC at 80VDC, suitable for protecting battery-operated and electronic systems. The fuse is stud mounted and UL and CSA certified for safety and reliability.
- Current Rating: 100 Amps
- Voltage Rating: 32VAC / 80VDC
- Interrupting Rating: 6,000 AIC at 32VAC, 2,700 AIC at 80VDC
- Mounting Type: Bolt-Down / Stud Mount
- Fuse Style: Non-Time-Delay Low Voltage Limiter
- Material: Silver-Plated Copper Links
- Size: 0.88" x 3.19" (approximate)
- Series: ANL
- Certifications: UL Listed, CSA Certified
- Clear window for open fuse indication
- Recommended Fuse Holder: Cooper Bussmann 4164 ANN/ANL
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ANL-100
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Parts And Accessories
- Family : ANL Series
- Type : ANL
Product Data
- UPC : 05171270612
- GTIN : 00051712706124
- Country of Origin : Mexico
- Dimensions : 3.38 in x 1.62 in x 0.95 in (Length/Depth x Height x Width)
- Weight : 0.3
- Certification : CSA Certification Class 1422-30, SAE J1171, UL Guide JFHR2
