Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Overload Relay
Description
AN43A

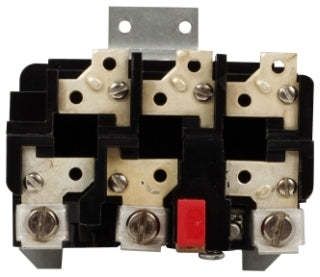

AN43A is a Cutler Hammer NEMA A200 thermal overload relay designed for motor control applications with a full load current range of 19 to 135 amperes.This three-pole overload relay features Class 20 trip characteristics, is starter mounted, and includes one normally closed auxiliary contact for reliable motor protection.
- Amperage range: 19-135A
- Voltage: NEMA A200 standard
- Poles: 3
- Mounting type: Starter mounted
- Trip unit: Thermal Type A, Class 20
- Auxiliary contacts: 1 normally closed (1NC)
- Series/frame: NEMA A200
- Overload relay type: Thermal, bimetallic
- Reset: Automatic/manual reset
- Ambient temperature compensated
- Certifications: Meets NEMA standards
Specifications
- Part Number: AN43A
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Overload Relay
- Voltage : 38500
- AIC rating : 40kA
- Connection : Ferrule
- Relay Style : Thermal
- Diameter : 53
- Class Rating : Back-Up
- Amperage Maximum : 135
- Amperage Minimum : 19
Product Data
- UPC : 78667824993
- GTIN : 00786678249933
- Dimensions : 8.2 in x 5.1 in x 6.1 in (Length/Depth x Height x Width)
- Weight : 2.25 lb
