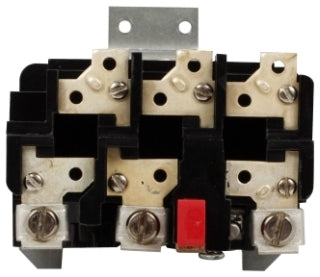

AN33A - Cutler Hammer 3-Pole Thermal Overload Relay 19-90A 600V NEMA A200 Frame Starter Mounted

AN33A

AN33A is a Cutler Hammer 3-pole thermal overload relay designed for motor control applications with a full load current range of 19-90 amps.This NEMA A200 frame overload relay features thermal Type A trip with Class 20 characteristics, starter mounting, and includes 1 normally closed auxiliary contact. It is suitable for manual or automatic reset and requires heaters for proper operation. The relay is UL Listed and CSA Certified, ensuring compliance with industry safety standards.

• Full load current range: 19-90A
• Voltage rating: up to 600V
• Number of poles: 3
• Mounting type: Starter mounted
• Trip type: Thermal Type A, Class 20
• Frame/Series: NEMA A200
• Auxiliary contacts: 1 normally closed (1NC)
• Certifications: UL Listed, CSA Certified
• Reset type: Manual or automatic reset
• Heaters required for operation
• Weight: approximately 2.1 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AN33A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Voltage : 20
• AIC rating : 20kA
• Connection : Ferrule
• Relay Style : Thermal
• Diameter : 67
• Class Rating : Back-Up
• Amperage Maximum : 90
• Amperage Minimum : 19

Product Data

• UPC : 78667824870
• GTIN : 78667824870
• Dimensions : 8.2 in x 5.1 in x 6 in (Length/Depth x Height x Width)
• Weight : 2.1 lb
