Product Info
- Manufacturer:Eaton
- Sub-Category:Motor Starter
Description
AN19AN0A5E020

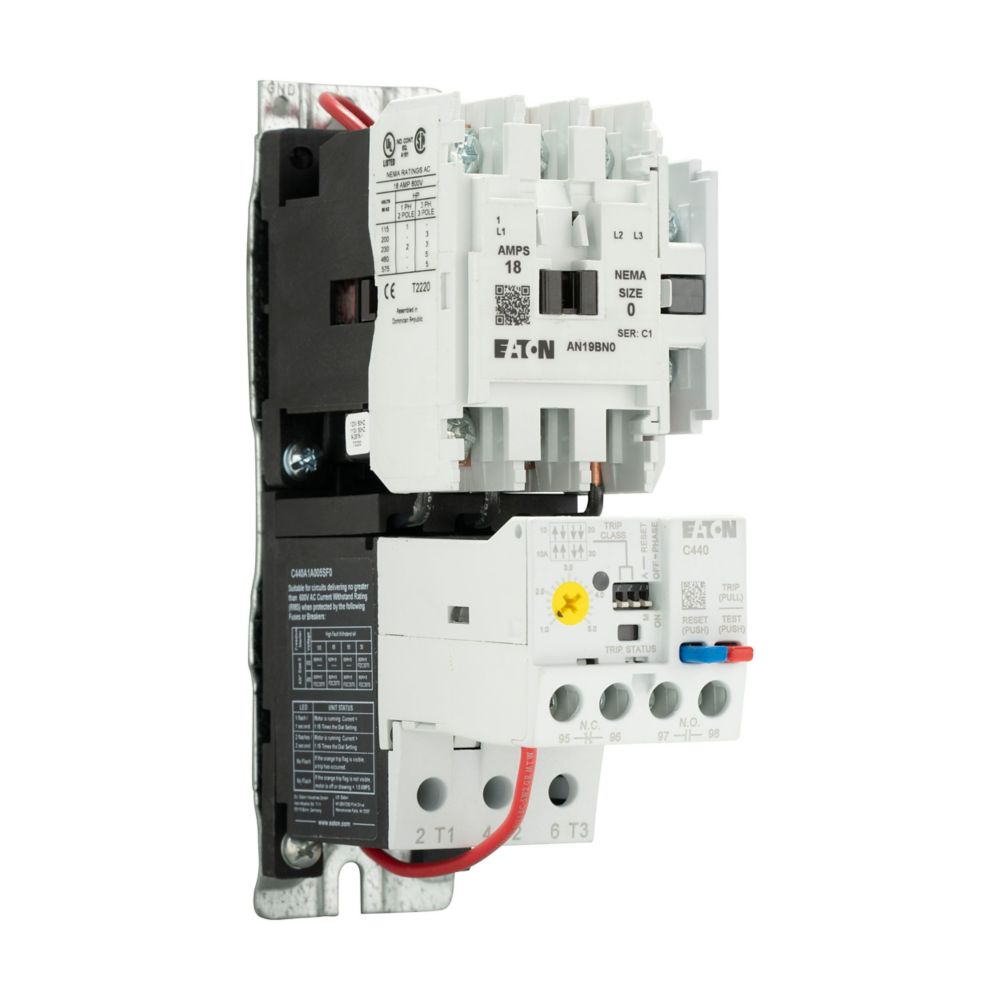

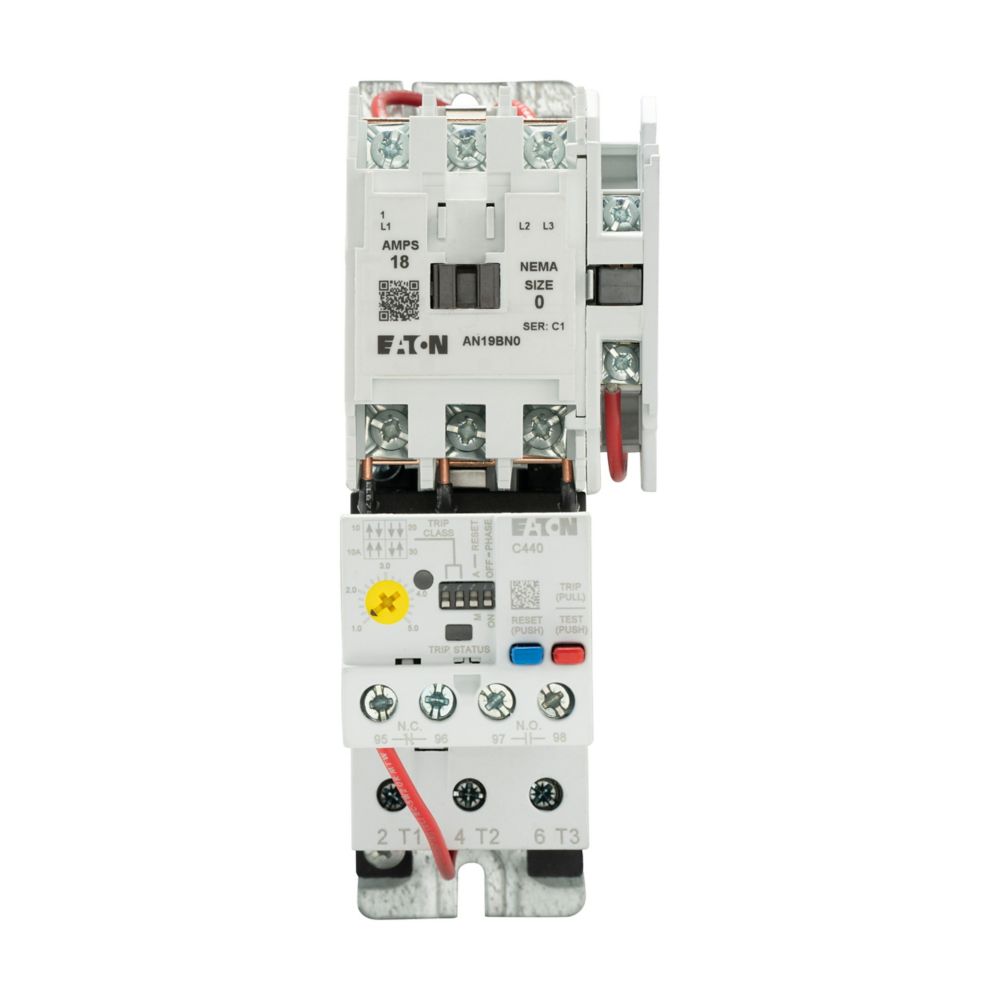

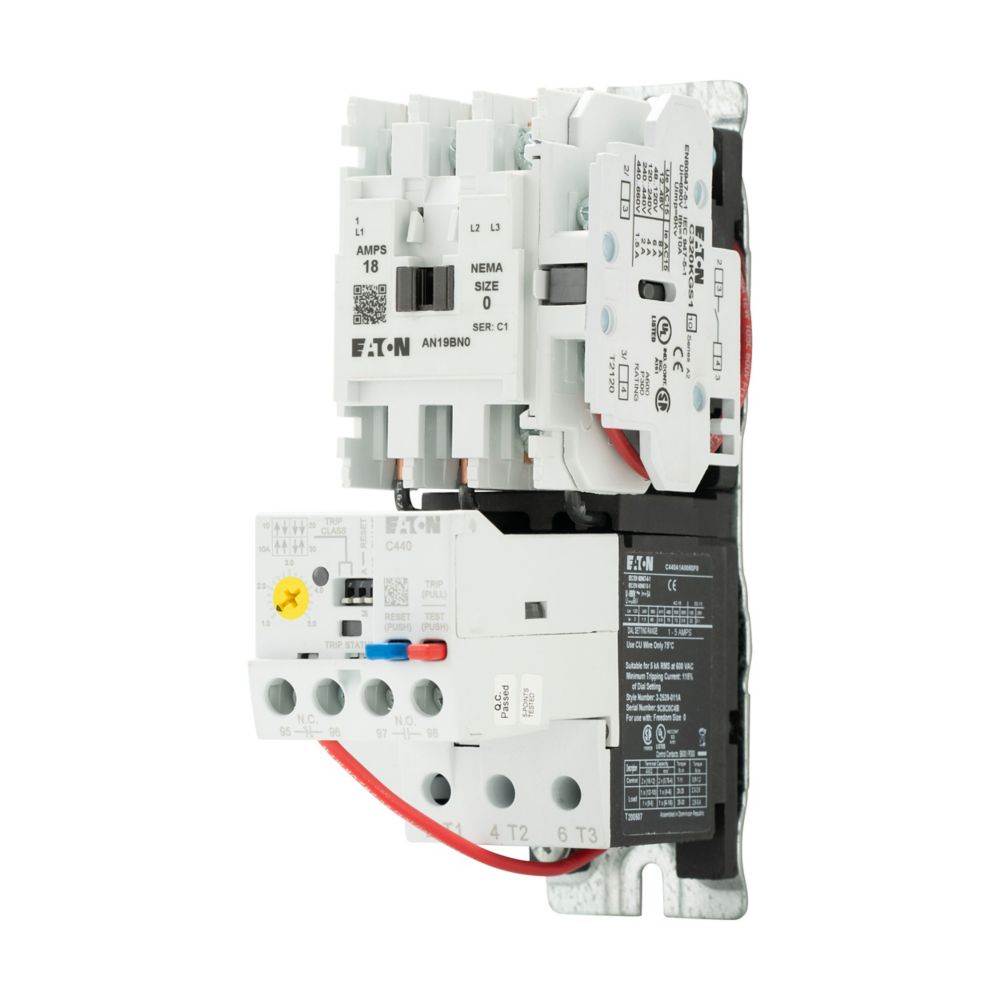

AN19AN0A5E020 is an Eaton Freedom Series motor starter designed for reliable motor control applications.This full voltage non-reversing starter features a 3-pole configuration with a 4-20 amp adjustable electronic overload relay (C440), a 120V coil, and a NEMA Size 00 open enclosure. It supports 600 VAC operation and is horizontally mounted for surface installation.
- Key Specifications
- Manufacturer: Eaton
- Part Number: AN19AN0A5E020
- Series: Freedom
- Poles: 3
- Amperage: 4-20 A adjustable overload
- Voltage: 600 VAC operational, 120V coil voltage
- Mounting Type: Horizontal surface mount
- Frame Size: NEMA Size 00
- Overload Relay: C440 electronic overload relay
- Type: Full voltage non-reversing starter
- Frequency: 50/60 Hz
- Part Number: AN19AN0A5E020
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AN19
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 1 1/2 hp HP @ 3 Phase - 240V 1 1/2 hp HP @ 3 Phase - 480V 2 hp
- Aux Contacts : 1NO
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
- UPC : 78668541427
- GTIN : 00786685414270
- Country of Origin : Dominican Republic
- Dimensions : 4.9 in x 6.6 in x 1.97 in (Length/Depth x Height x Width)
- Weight : 1.75
- Certification : CE, CSA, UL Listed
