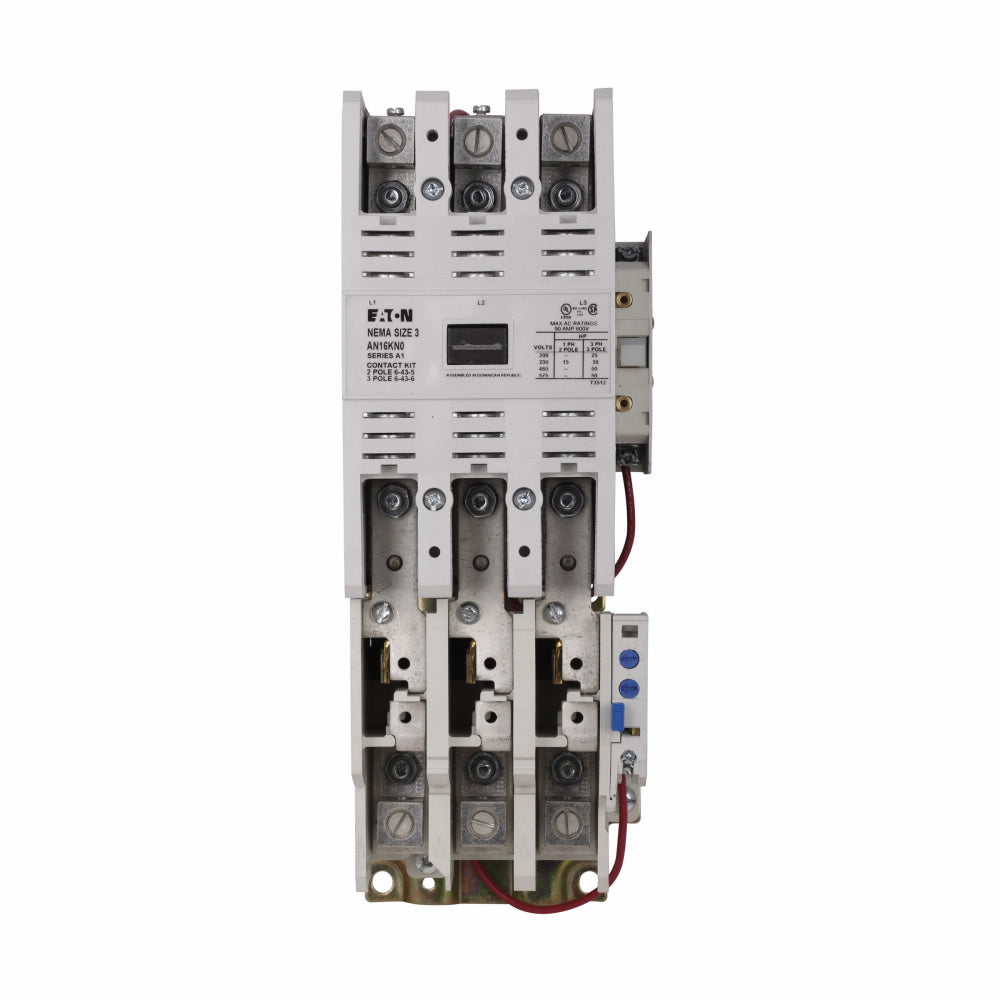

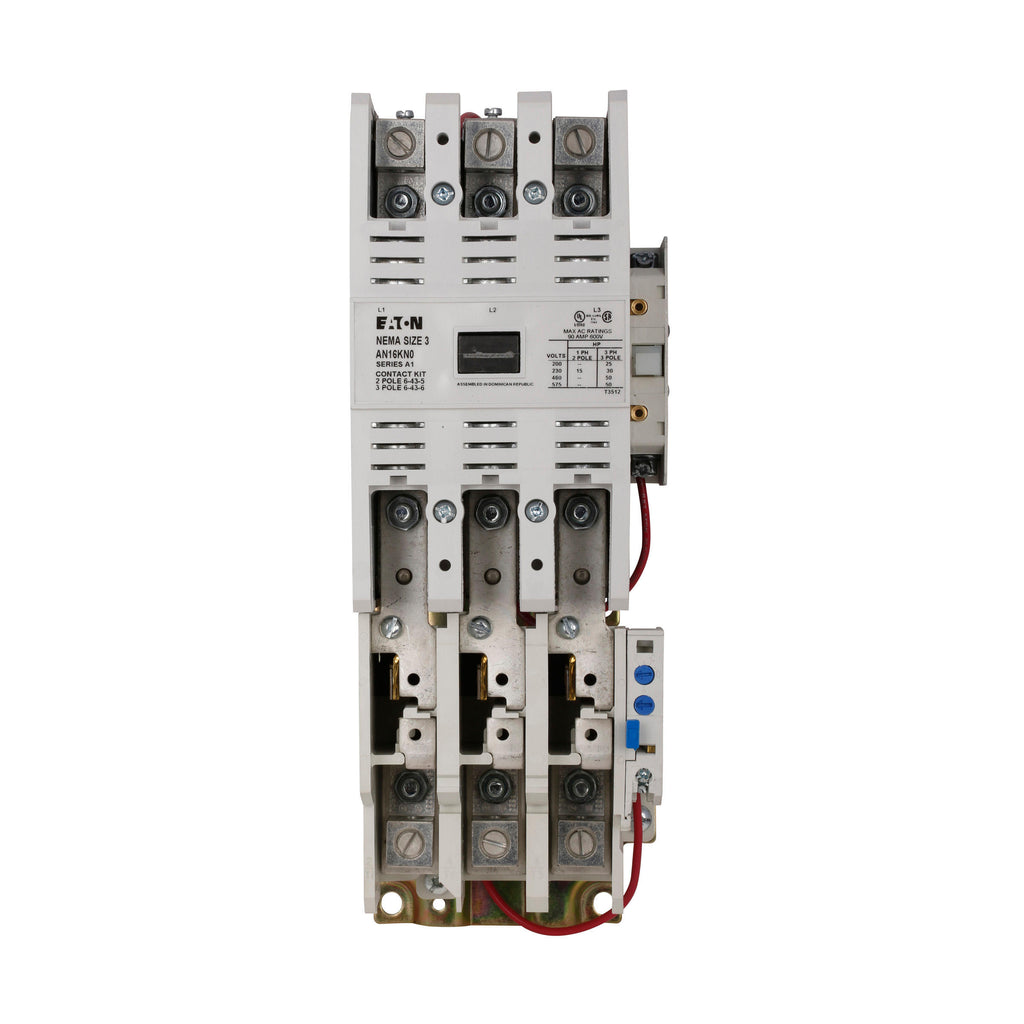

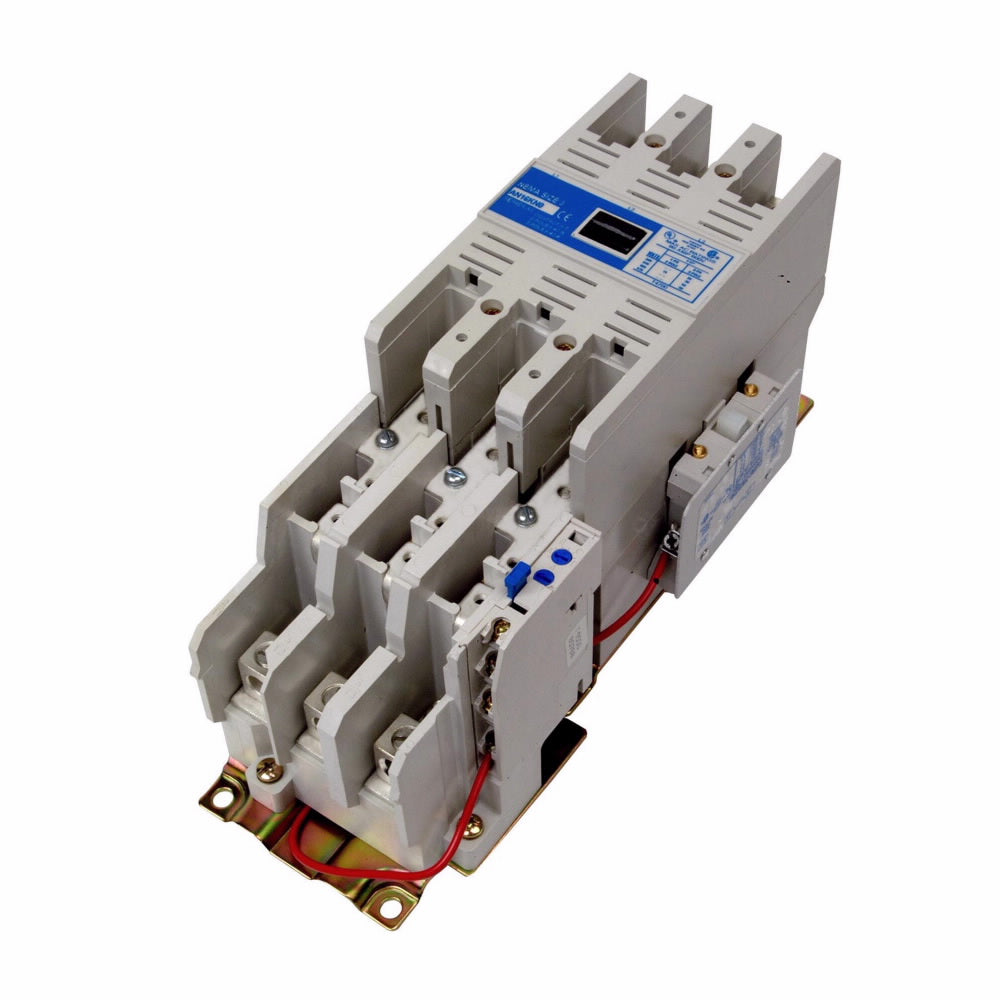

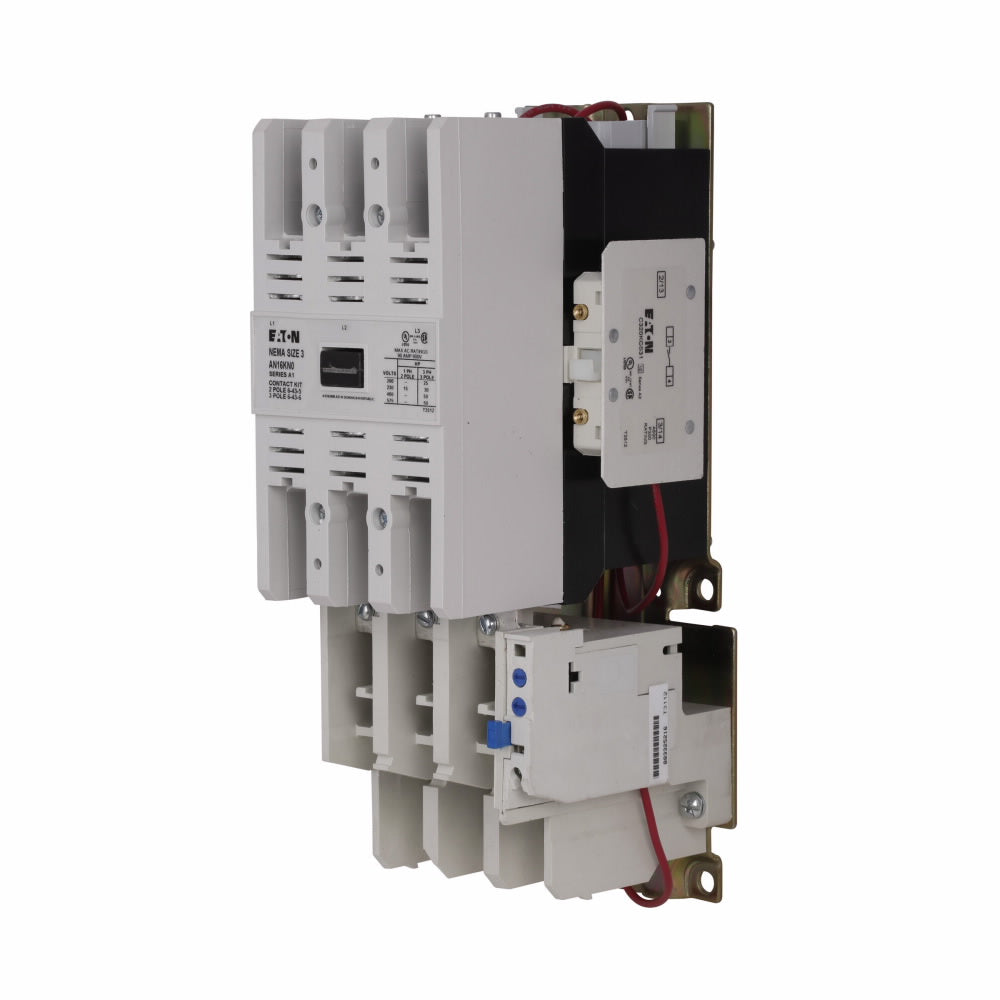

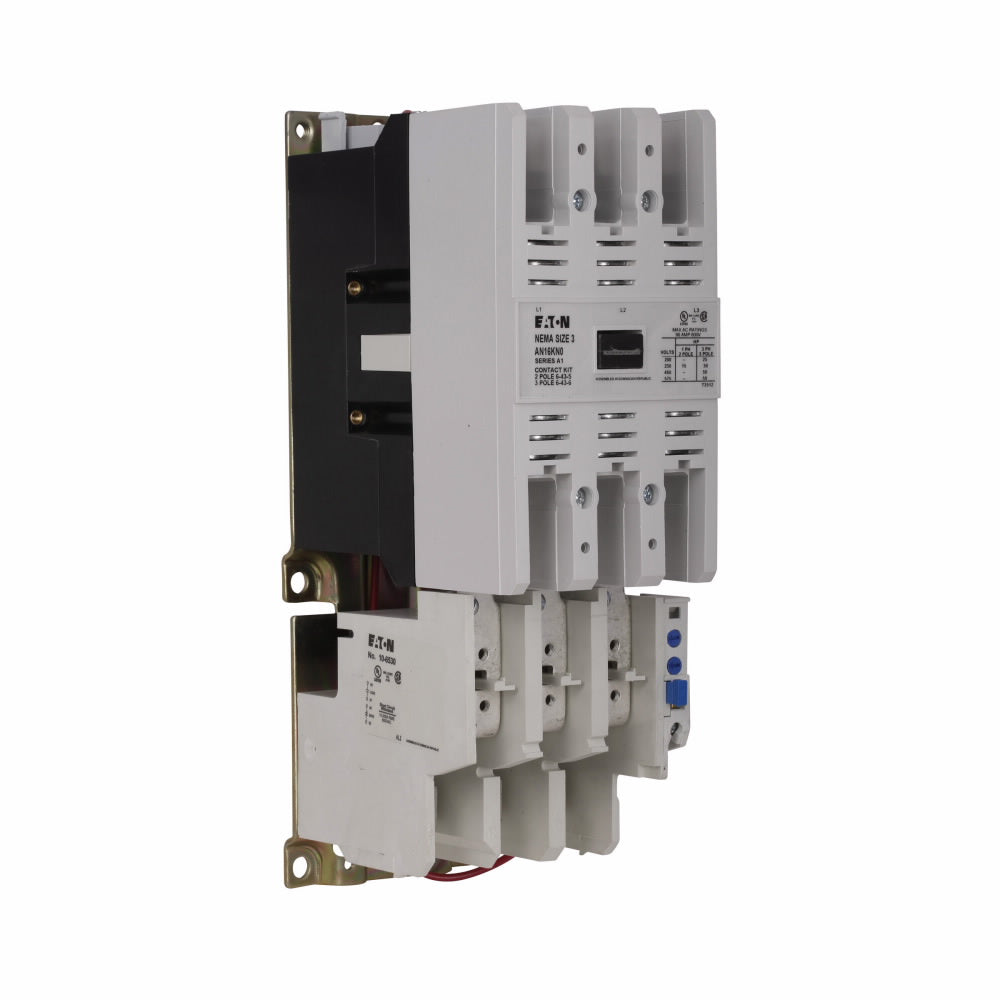

AN16KN0B - Cutler Hammer (Eaton) 90A 600V 3-Pole NEMA Size 3 Non-Reversing Motor Starter with Bimetallic Overload, Open Enclosure, Horizontal Mount

AN16KN0B

AN16KN0B is a Cutler Hammer (Eaton) NEMA Size 3, non-reversing motor starter designed for reliable motor control in industrial applications.

This full voltage starter features a C306 bimetallic overload relay, open enclosure, and horizontal mounting. It is engineered for durability with up to 2,000,000 electrical operations and is suitable for general duty control applications. The unit is rated for use with motors up to 30 HP at 230V and 50 HP at 460V, offering robust protection and easy integration into existing systems.

Key Specifications

• Amperage: 90A
• Voltage: 600V
• Poles: 3
• Mounting Type: Horizontal
• Interrupt Rating: Not specified in available sources
• Series/Frame: NEMA Size 3, Freedom Series
• Trip Unit: C306 bimetallic overload relay
• Certifications: Not specified in available sources
• Coil Voltage: 220–240V AC
• Maximum HP: 30 HP @ 230V, 50 HP @ 460V
• Enclosure: Open
• Mechanical Life: 20,000,000 operations
• Electrical Life: 2,000,000 operations at max HP

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AN16KN0B
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : AN16
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Nema Rating : 3

Product Data

• UPC : 782113622446
• GTIN : 00782113622446
• Country of Origin : United States
• Dimensions : 6.75 in x 4.63 in x 6.63 in (Length/Depth x Height x Width)
• Weight : 9.3 lb
• Certification : CSA Certified,UL Listed
