- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AN16AN0DC

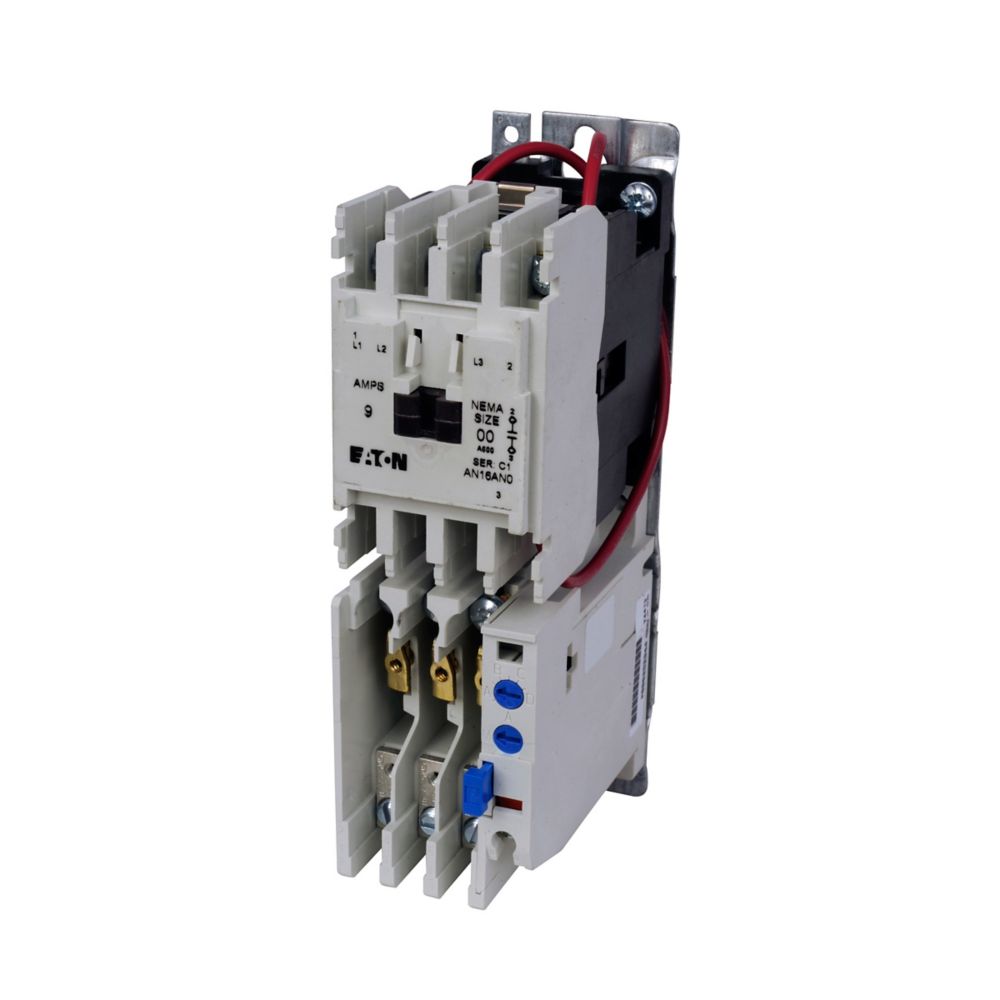

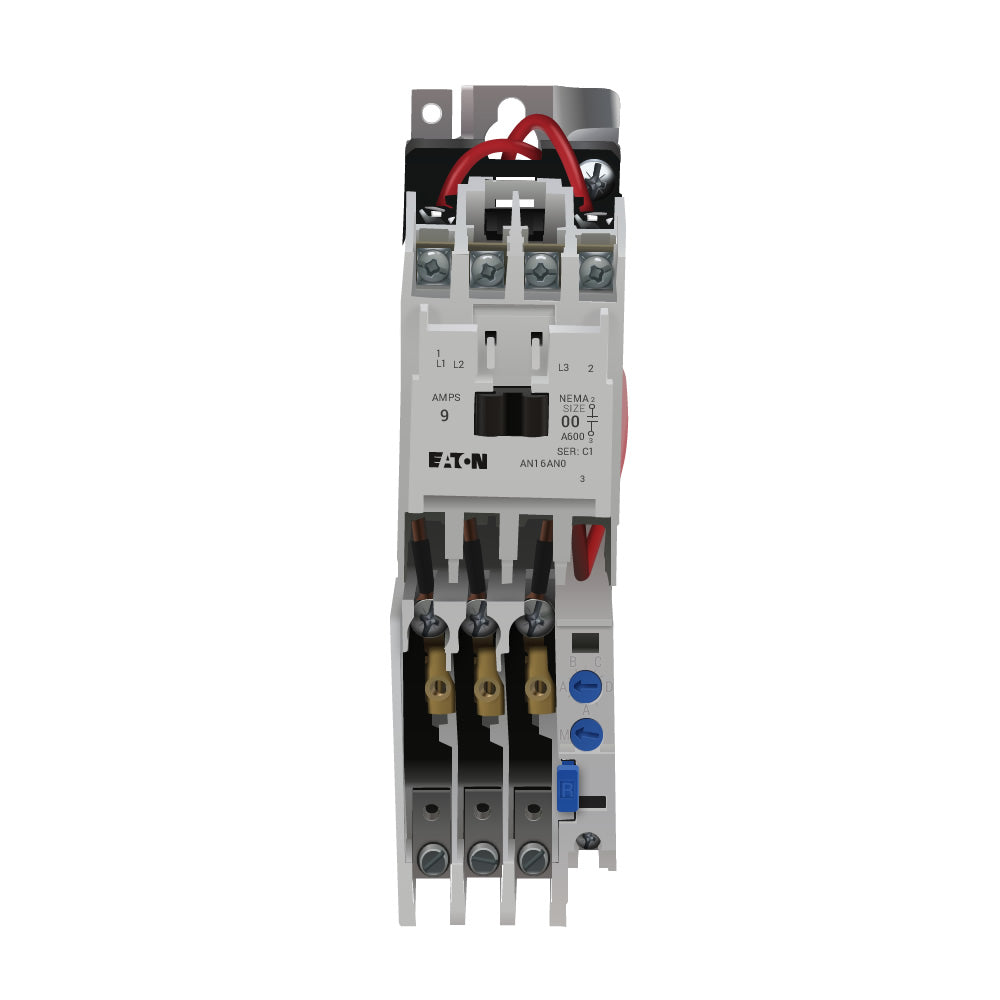

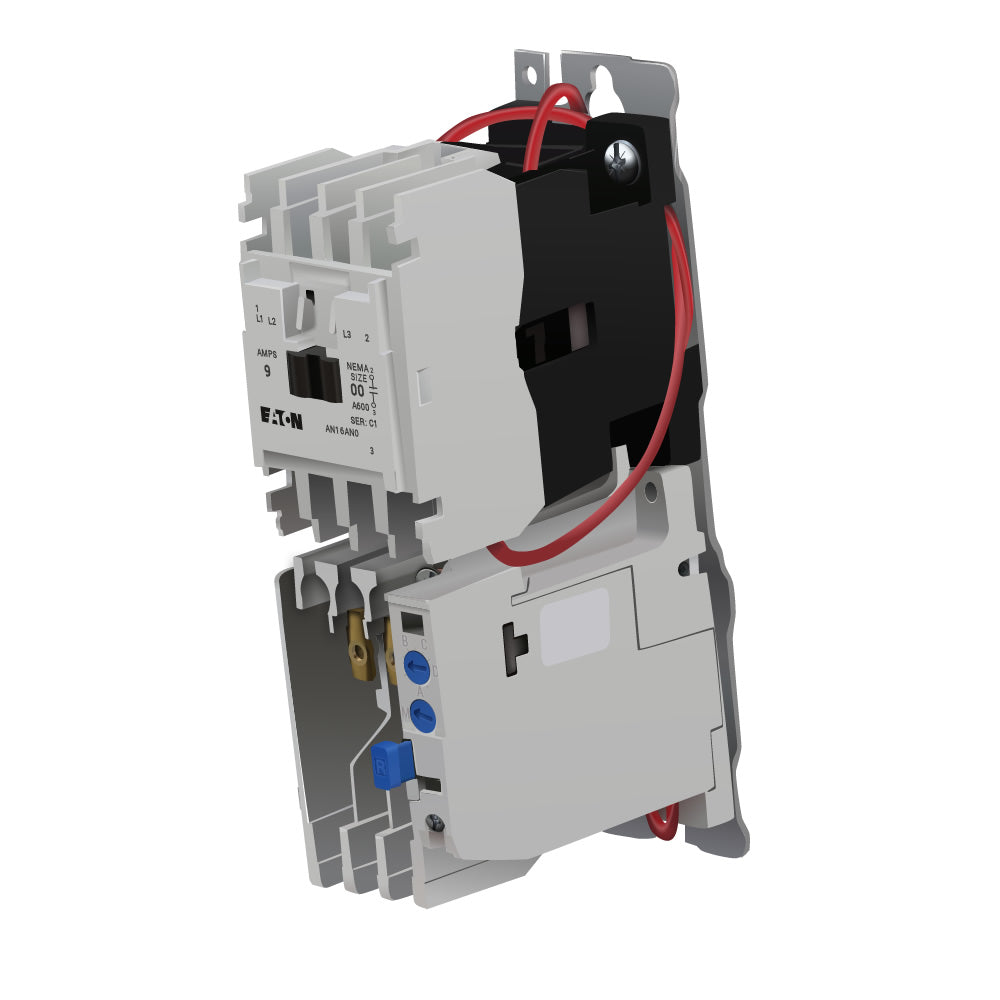

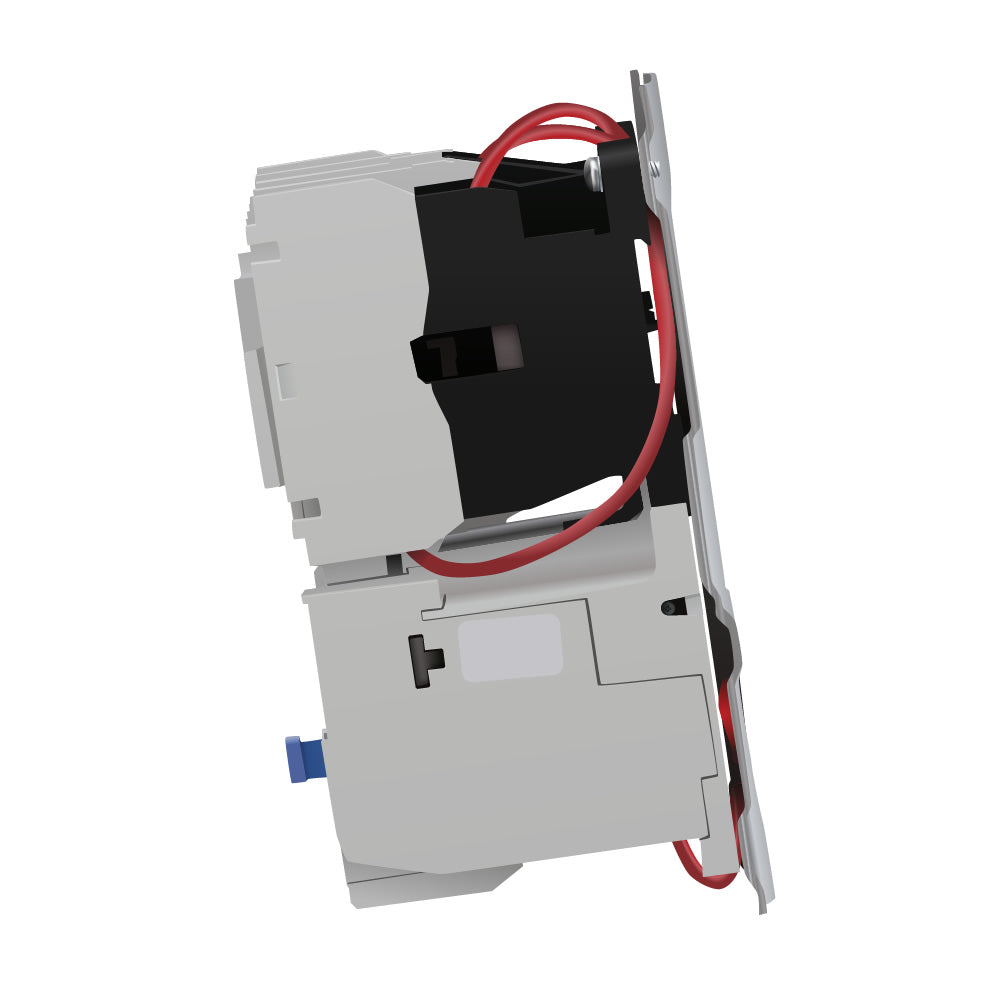

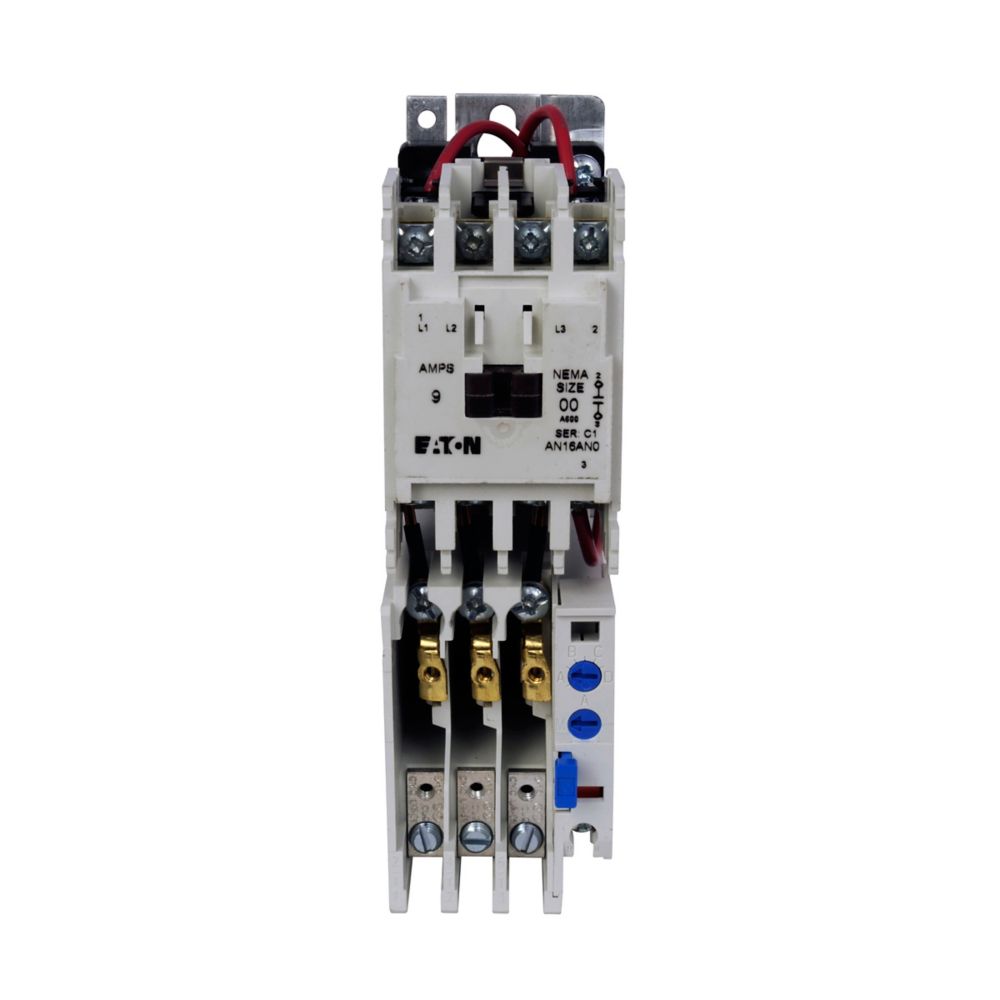

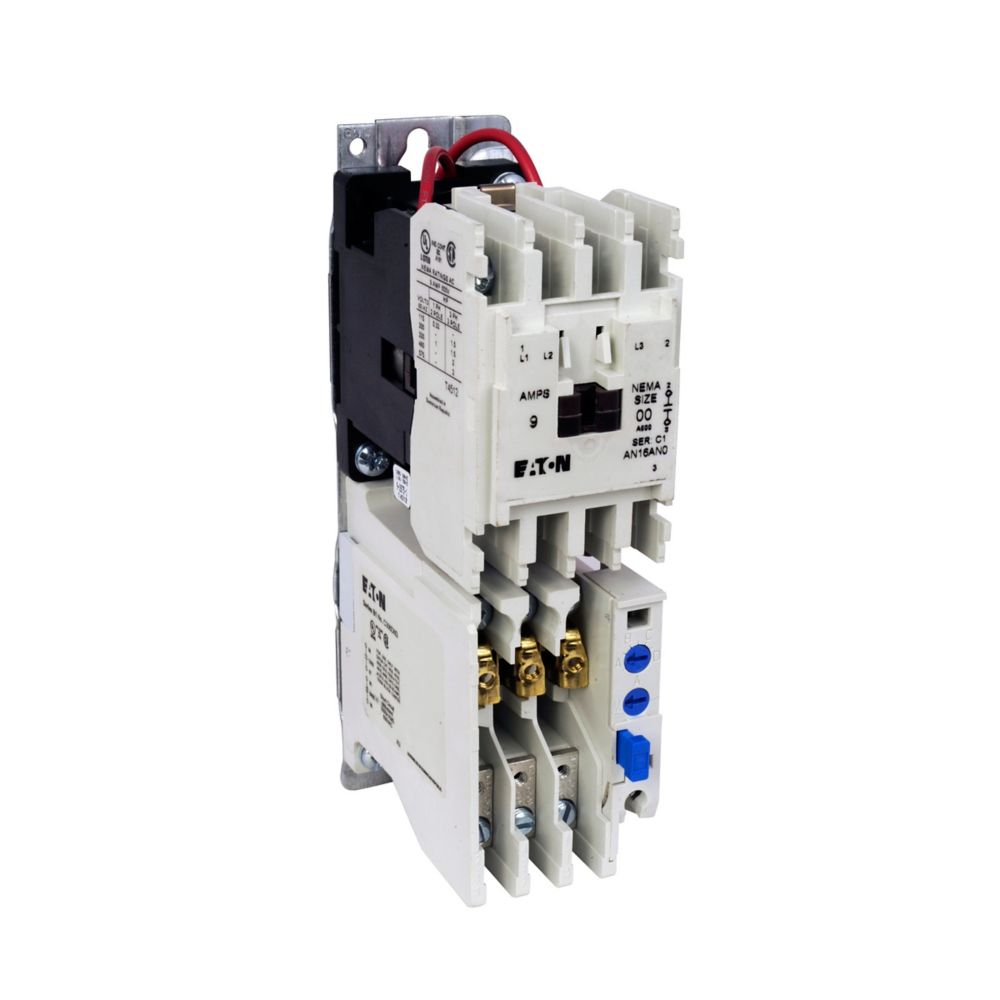

AN16AN0DC is a Cutler Hammer Freedom NEMA motor control starter designed for reliable motor protection and control in industrial applications. This non-reversing starter features a reset overload relay and is suitable for both single-phase and three-phase systems.Engineered for durability and ease of use, the AN16AN0DC provides ambient compensated overload protection and is compatible with Freedom series motor control systems. It is designed for horizontal mounting and offers a robust solution for motor loads up to 2 hp at 480/600V.
- Part Number: AN16AN0DC
- Manufacturer: Cutler Hammer
- Series: Freedom
- Type: Non-Reversing Reset Overload Relay Starter
- Amperage Rating: 9A
- Voltage Rating: 550-600V AC, 50/60 Hz
- Poles: 3
- Mounting: Horizontal
- Phase: Single-phase, Three-phase
- HP Rating: 1/3 hp at 115V, 1 hp at 230V, 1-1/2 hp at 208/240V, 2 hp at 480/600V
- Certifications: CSA Certified, UL Listed
Specifications
- Part Number: AN16AN0DC
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 600
- Coil Voltage Minimum : 550
- Nema Rating : 0
Product Data
- UPC : 782113085319
- GTIN : 00782113085319
- Dimensions : 4.61 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
- Weight : 2.6
- Certification : CSA Certified,UL Listed
