Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AN16AN0CC

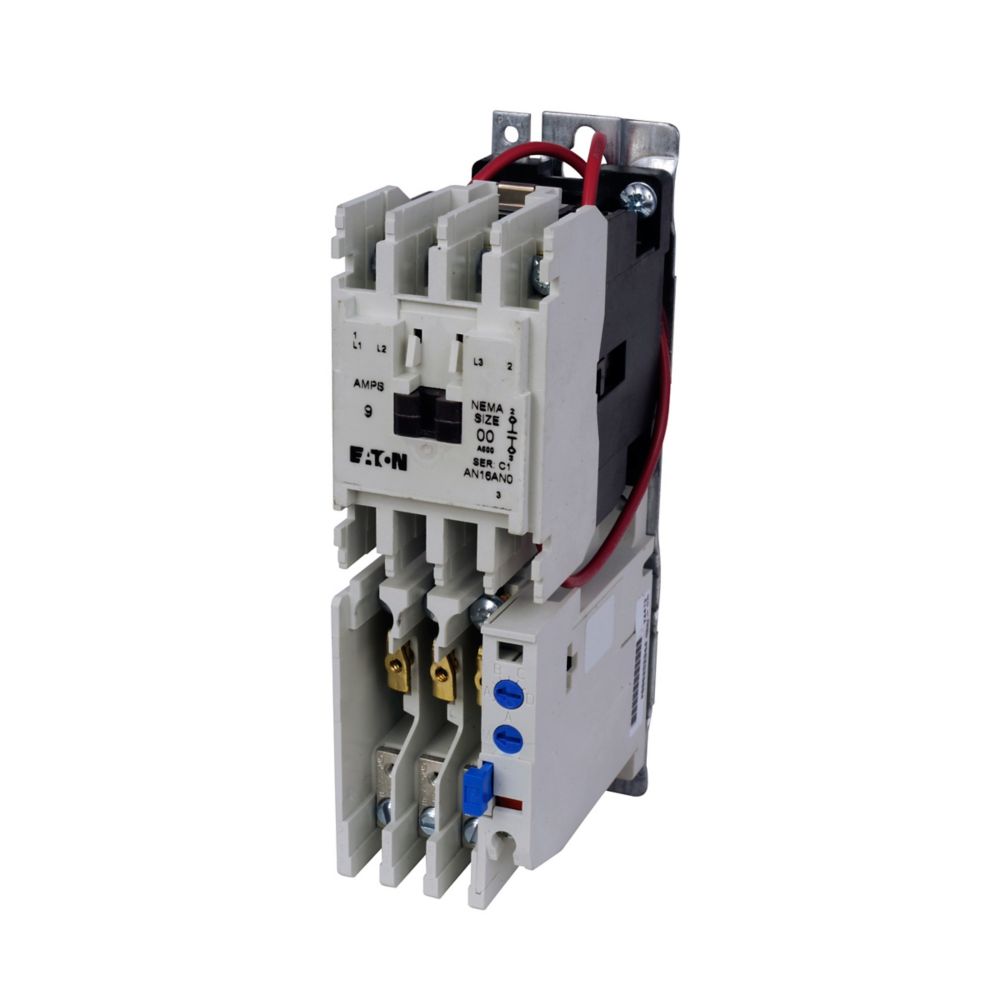

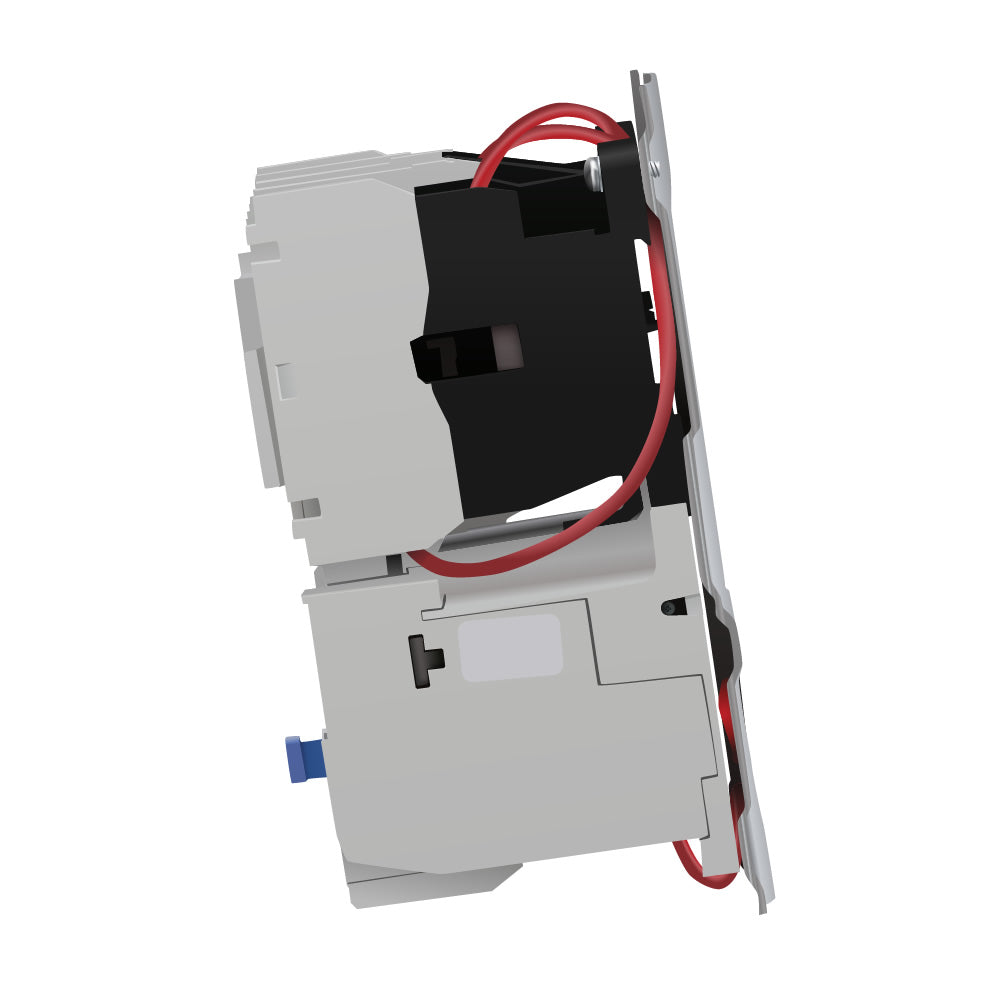

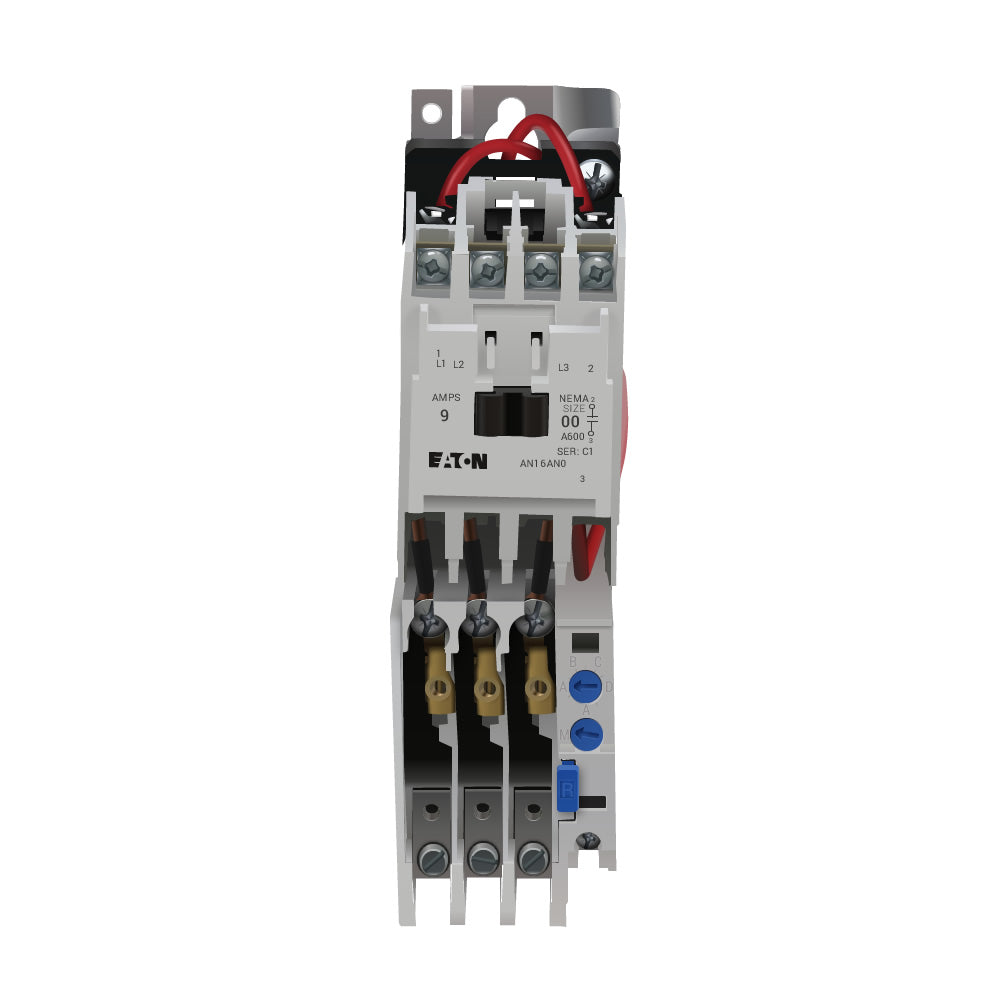

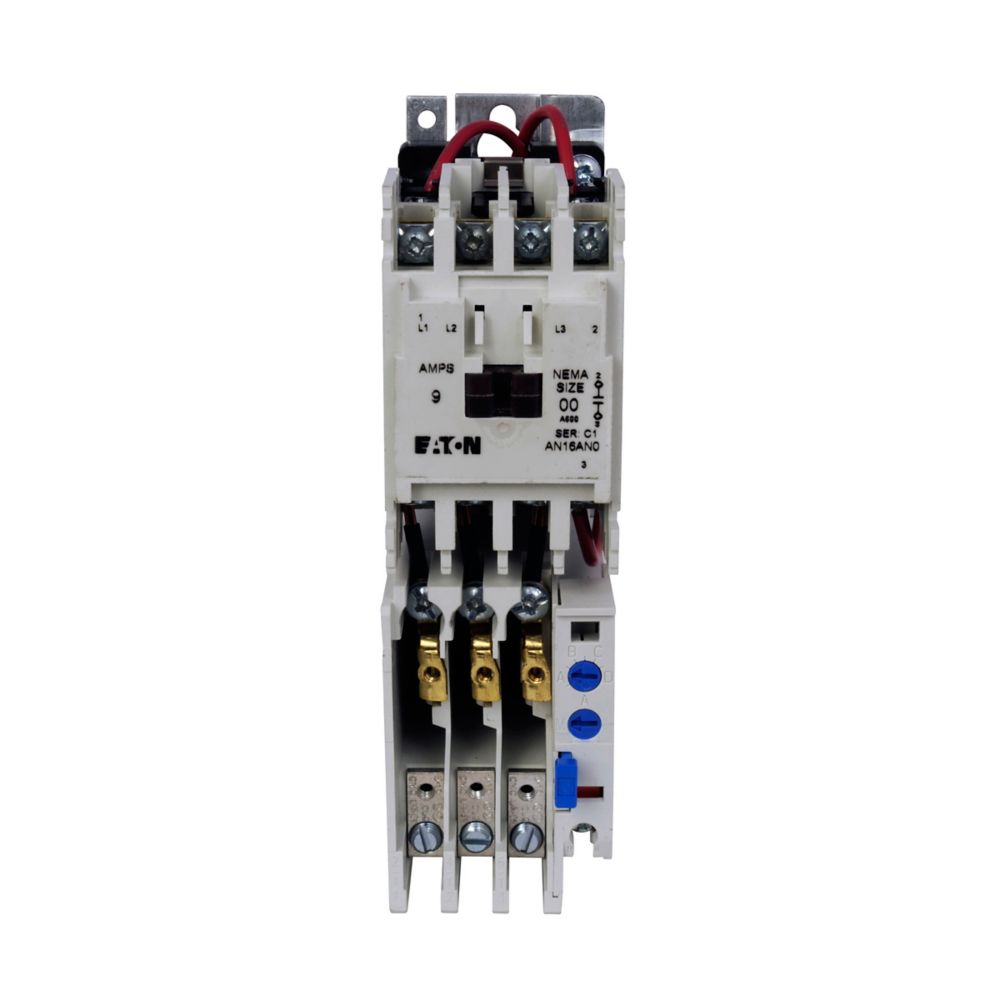

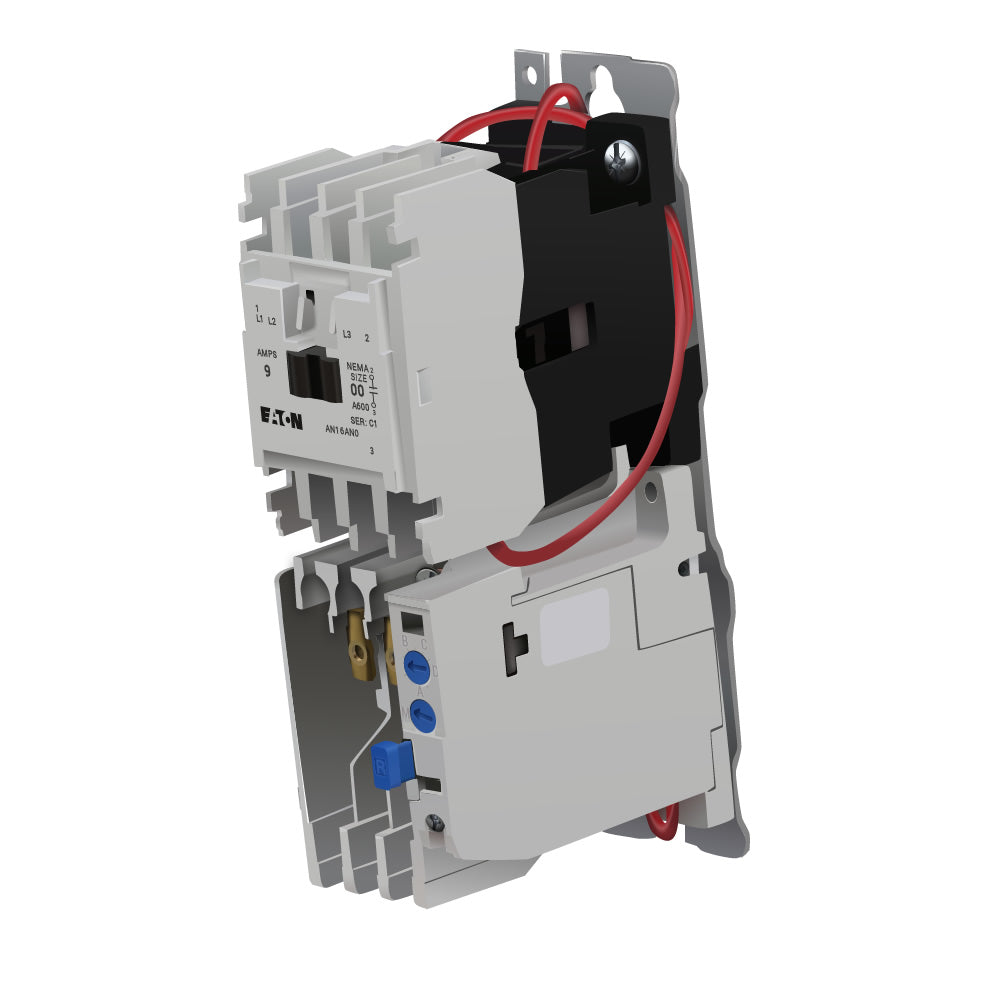

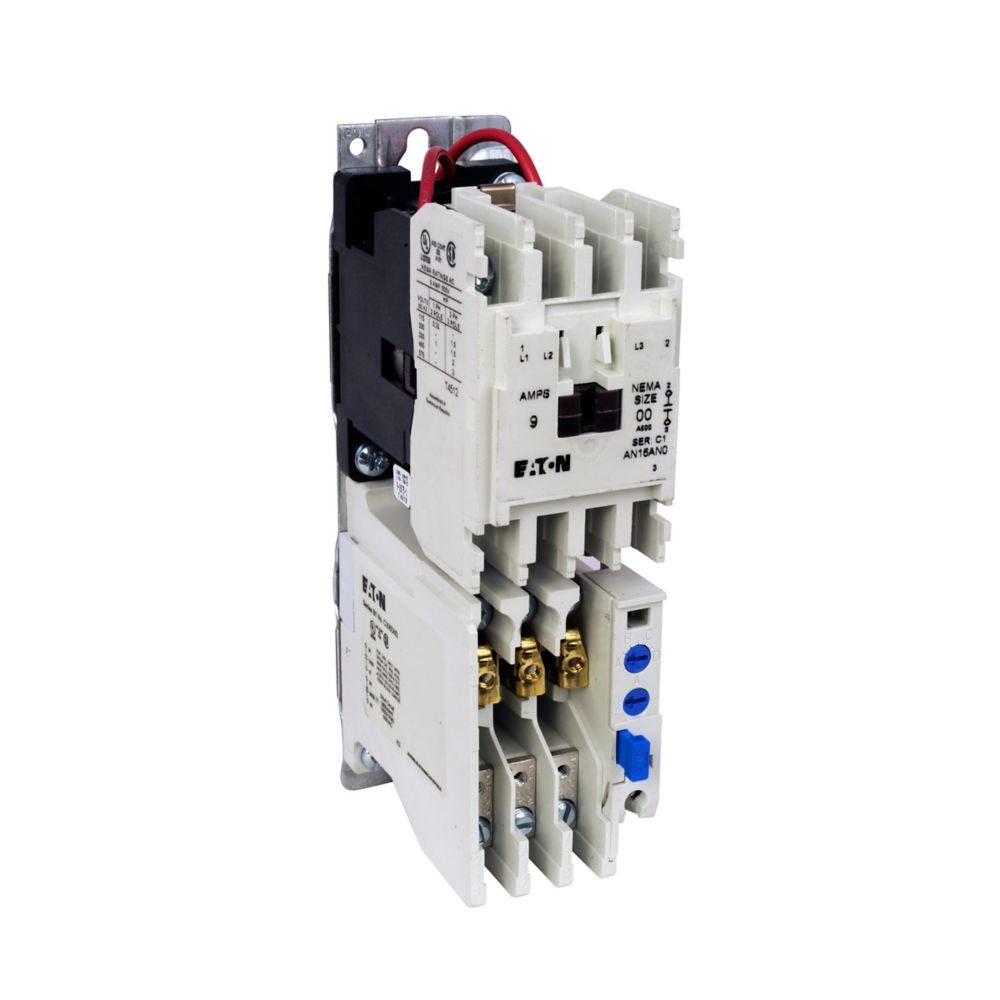

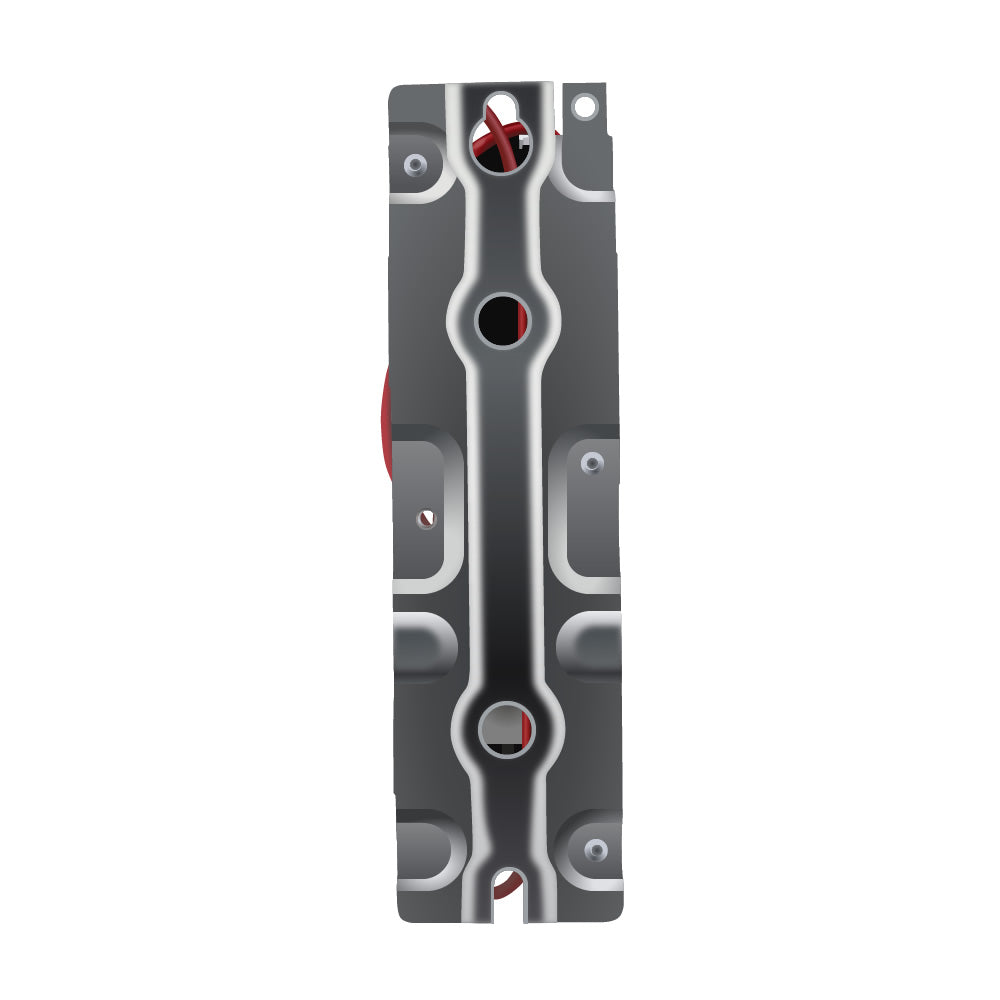

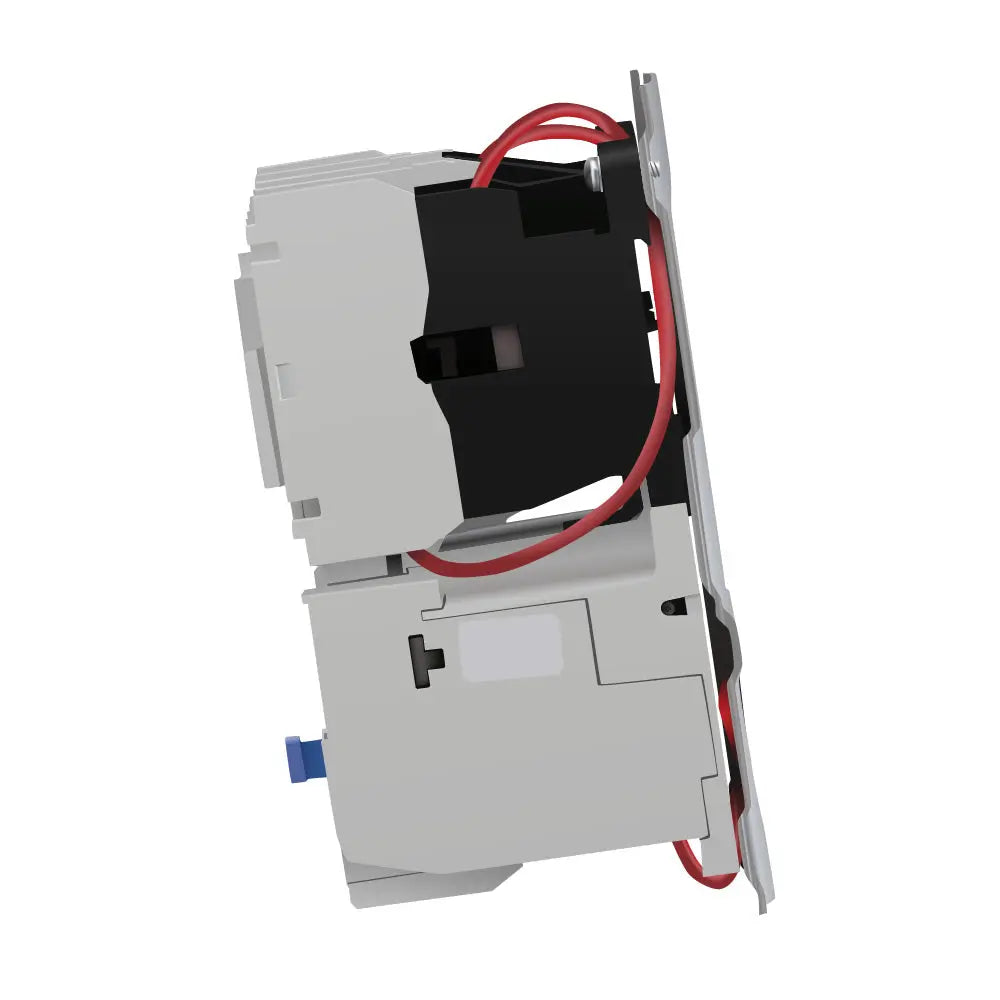

AN16AN0CC is a Cutler Hammer Freedom series motor control starter designed for reliable motor protection and control in HVAC and industrial applications.This compact, three-pole, full-voltage, non-reversing magnetic starter operates at 9 amps and 480 volts AC, suitable for three-phase power systems. It features a NEMA Size 00 frame with an open type enclosure and surface mounting. The starter supports up to 2 HP at 480V and includes one auxiliary contact for control circuit integration. It is part of the Eaton Freedom NEMA motor control line, known for durability and ease of installation.
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: AN16AN0CC
- Amperage: 9A
- Voltage: 480V AC
- Poles: 3
- Phase: 3
- Mounting Type: Surface
- Frame/Series: Freedom NEMA Size 00
- Contactor Type: Magnetic
- Non-Reversing Starter
- Enclosure Type: Open
- Auxiliary Contact: 1 Included
Specifications
- Part Number: AN16AN0CC
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 480
- Coil Voltage Minimum : 440
- Nema Rating : 0
Product Data
- UPC : 078211378558
- GTIN : 00782113785585
- Country of Origin : Dominican Republic
- Dimensions : 4.61 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
- Weight : 2.6
- Certification : UL Listed,CSA Certified
