Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Overload Relay
Description

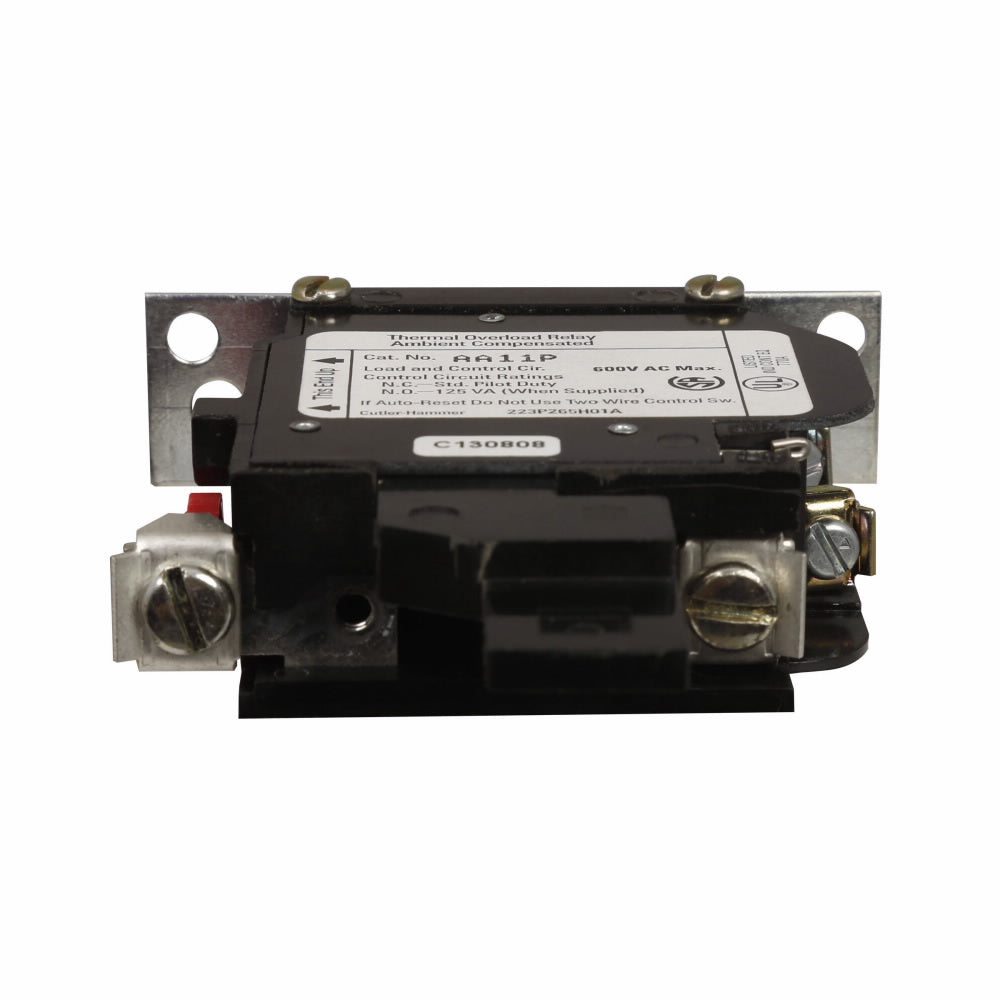

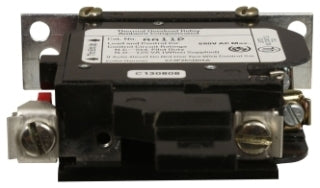

AN11P
AN11P is a Cutler Hammer thermal overload relay designed for reliable motor protection with adjustable current settings from 0.25 to 26.2 amperes.This NEMA A200 series overload relay features a single pole and advanced thermal sensing technology to accurately detect motor temperature and prevent damage. It supports both automatic and manual reset options, includes one normally closed auxiliary contact, and is panel mounted with screw terminal connections. The relay is rated for Class 20 trip and complies with NEMA standards for industrial motor control applications.
- Manufacturer: Cutler Hammer, Div of Eaton
- Product Series: A200 Overload
- Current Range: 0.25-26.2 Amperes
- Poles: 1
- Mounting Type: Panel Mounted
- Trip Class: 20
- Reset Type: Automatic and Manual
- Output Contacts: 1 Normally Closed (1NC)
- Connection Type: Screw Terminals
- Standards: NEMA A200
- Weight: Approx. 0.4 lbs
Specifications
- Part Number: AN11P
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Overload Relay
- Relay Style : Thermal
- Amperage Maximum : 26.2
- Amperage Minimum : 0.25
Product Data
- UPC : 786678245683
- GTIN : 00786678245683
- Country of Origin : United States
- Dimensions : 4.9 in x 2 in x 3.8 in (Length/Depth x Height x Width)
- Weight : 0.45
- Certification : CSA Certified,UL Listed
