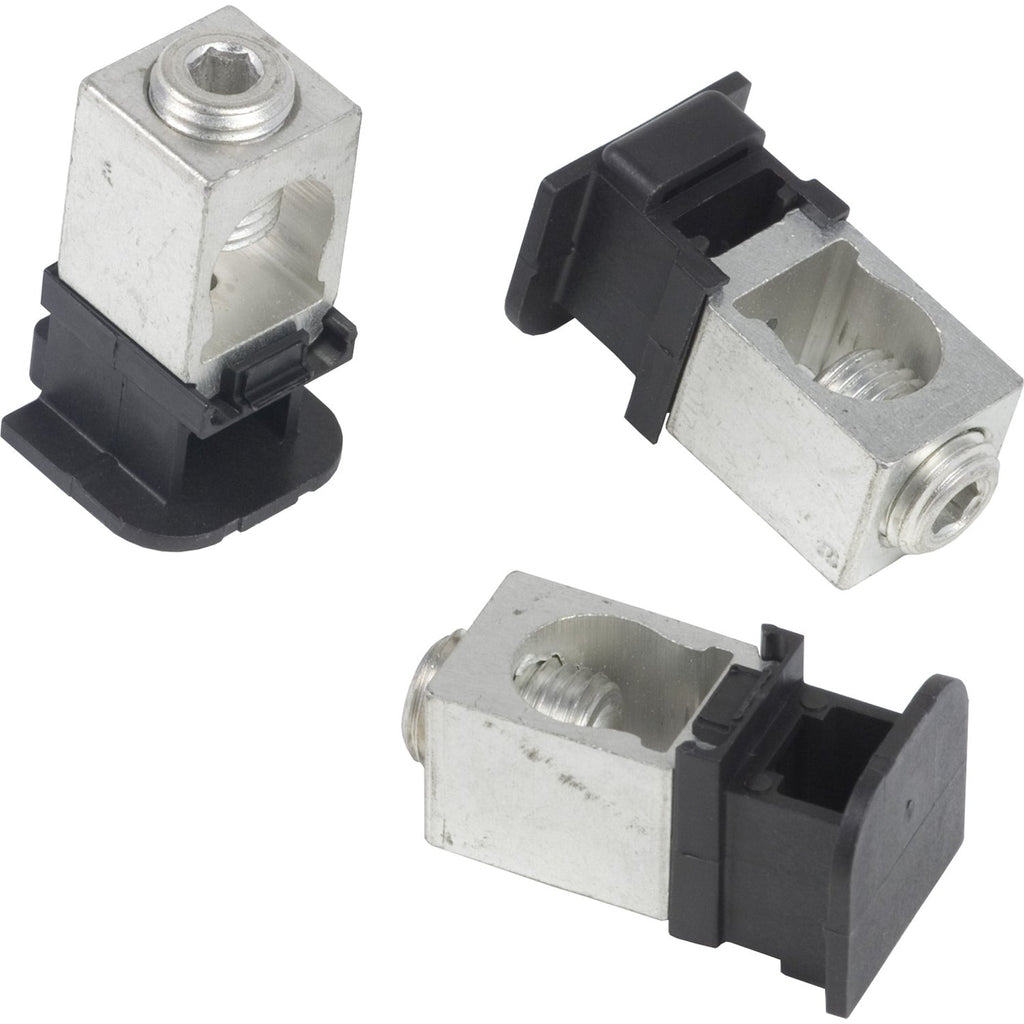

AL150HD - Square D AL Series Mechanical Lug Kit for 15A to 150A Breakers 14 to 3/0 AWG Copper/Aluminum

AL150HD

AL150HD is a mechanical lug kit designed for Square D AL series circuit breakers, supporting 15A to 150A ratings and 14 to 3/0 AWG copper or aluminum conductors. This lug kit is compatible with HDA, HDF, HDL, HDM, HDP, HDN, HDD, HDS, HGA, HGF, HGL, HGM, HGP, HGN, HGD, HGS, HJA, HJF, HJL, HJM, HJP, HJN, HJD, HJS, HLA, HLF, HLL, HLM, HLP, HLN, HLD, HLS, HDK, HGK, HJK, and HLK frame types. It provides secure, factory-installed connections for rear connectors and compression lugs, suitable for a wide range of PowerPacT H, M, and P-frame breakers.

• Part Number: AL150HD
• Manufacturer: Square D
• Series/Frame: AL Series, H, M, P Frames
• Amperage: 15A to 150A
• Conductor Size: 14 to 3/0 AWG
• Material: Aluminum
• Mounting Type: Mechanical Lug
• Compatible Breakers: HDA, HDF, HDL, HDM, HDP, HDN, HDD, HDS, HGA, HGF, HGL, HGM, HGP, HGN, HGD, HGS, HJA, HJF, HJL, HJM, HJP, HJN, HJD, HJS, HLA, HLF, HLL, HLM, HLP, HLN, HLD, HLS, HDK, HGK, HJK, HLK
• Application: Rear Connector, Compression Lug
• Quantity: 3 per kit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AL150HD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Lug Terminal Kit
• Family : Powerpact
• Type : AL
• Voltage : 600 AC
• MCM Size : 168
• Barrels : 1
• Metal Type : Aluminum
• Compatible Frames : HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK

Product Data

• UPC : 785901841067
• GTIN : 00785901841067
• Country of Origin : United States
• Dimensions : 1.40 in (35.56 mm) x 0.874 in (22.200 mm) x 0.765 in (19.431 mm) (Height x Width x Depth)
• Weight : 0.1
