2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AJT90

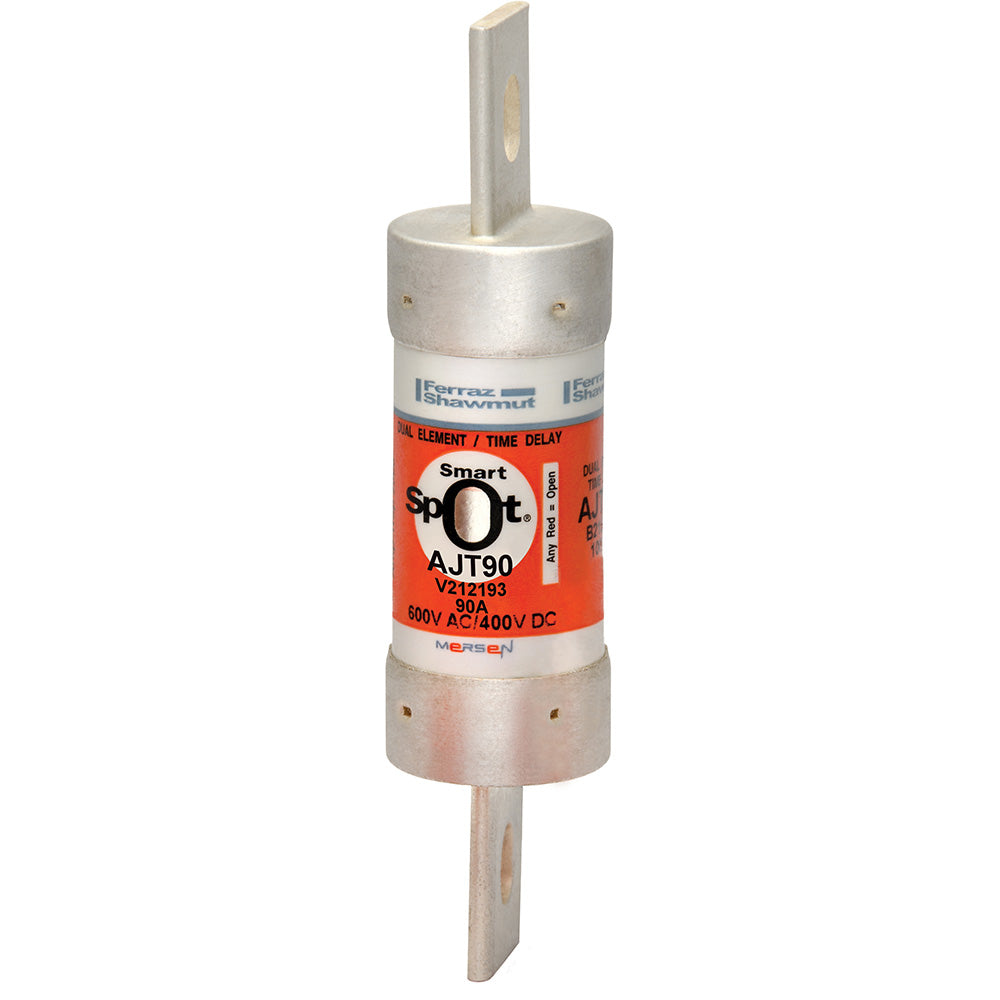

AJT90 is a Mersen Class J time-delay fuse rated for 90A at 600VAC, designed for reliable branch circuit protection in industrial and commercial applications. This fuse features a blade mounting style, SmartSpot visual blown fuse indicator, and advanced current-limiting technology for superior protection against short circuits and overloads. The AJT90 is ideal for use with motor and transformer loads due to its time-delay characteristics and compact footprint.
- Part Number: AJT90
- Manufacturer: Mersen
- Ampere Rating: 90A
- Voltage Rating: 600VAC, 400VDC
- Fuse Class: Class J
- Mounting Type: Blade (Clip or Bolted)
- Interrupting Rating: 200kA AC
- Speed/Characteristic: Time Delay
- Indication System: SmartSpot®
- Body Material: GMG
- Terminal Material: Tin-Plated Copper
- Compliance: UL, CSA, RoHS
Specifications
- Part Number: AJT90
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 90
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001962685
- GTIN : 00782001962685
- Country of Origin : Mexico
- Dimensions : x 4-5/8 in x
- Weight : 5
- Certification : UL/CSA
