Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

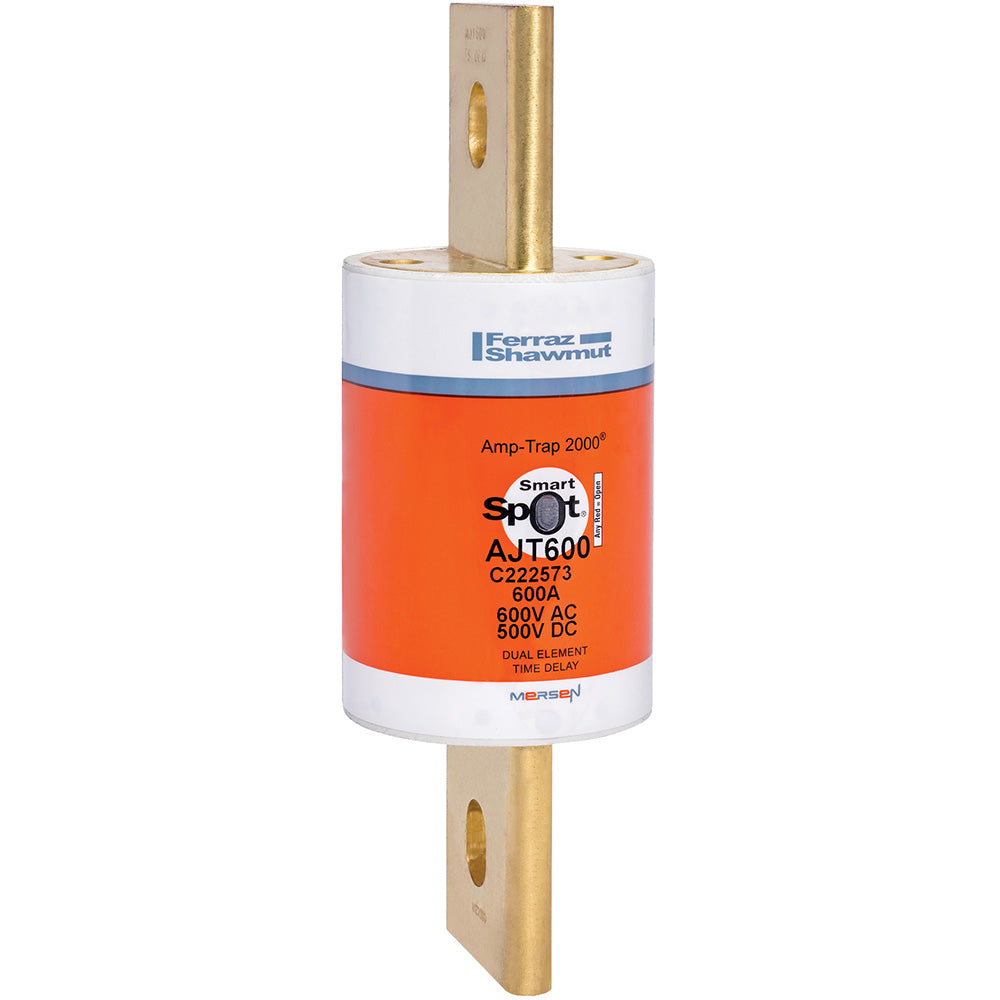

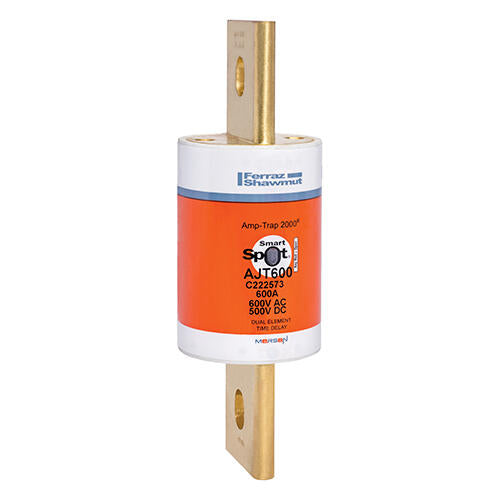

AJT600
AJT600 is a Mersen 600 Amp, 600 Volt Class J time delay fuse designed for motor starting and transformer inrush protection.This fuse features a solid-state SmartSpot visual blown fuse indicator, is extremely current limiting, and is UL listed to standard 248-8 with a 200,000 AIC interrupt rating at 600V AC. It is also DC rated at 500V with a 100,000 AIC interrupt rating, CSA certified, and IEC compliant. The fuse has a fiberglass construction with a metal embossed date and catalog number for lasting identification.
- Key Specifications
- Amperage: 600 A
- Voltage Rating: 600 V AC, 500 V DC
- Fuse Class: Class J
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200,000 AIC AC, 100,000 AIC DC
- Mounting Type: Clip
- Dimensions: 2.5" diameter x 8" length
- SmartSpot Visual Blown Fuse Indicator
- UL Listed to Standard 248-8
- CSA Certified to C22.2 No. 248.8
- IEC 269-2-1 Compliant
- ROHS Compliant
Specifications
- Part Number: AJT600
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Diameter : 2.5
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001962142
- GTIN : 00782001962142
- Country of Origin : Mexico
- Dimensions : x 8 in x
- Weight : 5
- Certification : UL/CSA
