AJT5N

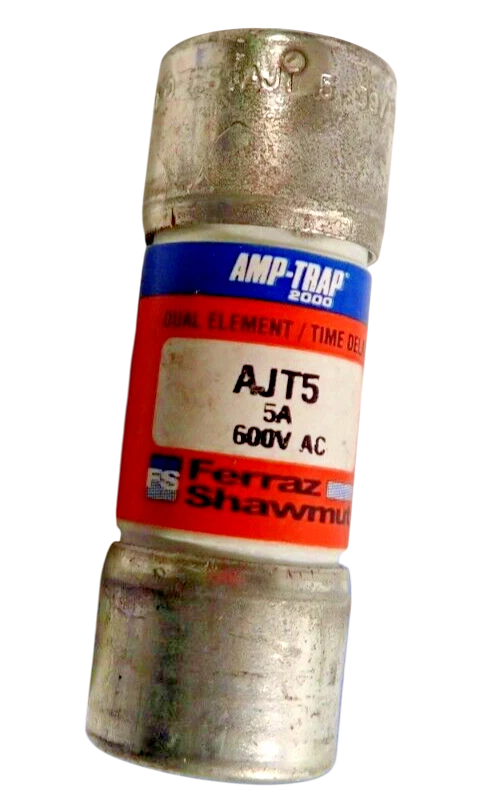

AJT5N is a 5 Amp, 600 Volt Class J time delay fuse designed for reliable circuit protection.This Mersen AJT5N fuse features a 1-pole design with a 300kA interrupt rating and provides IEC Type 2 (No Damage) protection for main, feeder, and branch circuits. It is a current limiting, low voltage, slow blow fuse suitable for AC and DC applications up to 600VAC and 500VDC. The fuse includes a visual open fuse indicator and tin-plated copper terminals with ferrule type connections. It is RoHS compliant and engineered to handle typical inrush currents with time delay characteristics.
- Key Specifications
- Amperage: 5 Amp
- Voltage Rating AC: 600 VAC
- Voltage Rating DC: 500 VDC
- Poles: 1
- Interrupt Rating: 300kA
- Fuse Class: J
- Trip Type: Time Delay (Slow Blow)
- Terminal Material: Tin-Plated Copper
- Terminal Type: Ferrule
- Mounting Type: Fuse Holder (not included)
- Certifications: IEC Type 2 Protection, RoHS Compliant
Specifications
- Part Number: AJT5N
Product Data
- Weight : 0.08
