2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Low Voltage Fuse
Description
AJT450-EIB

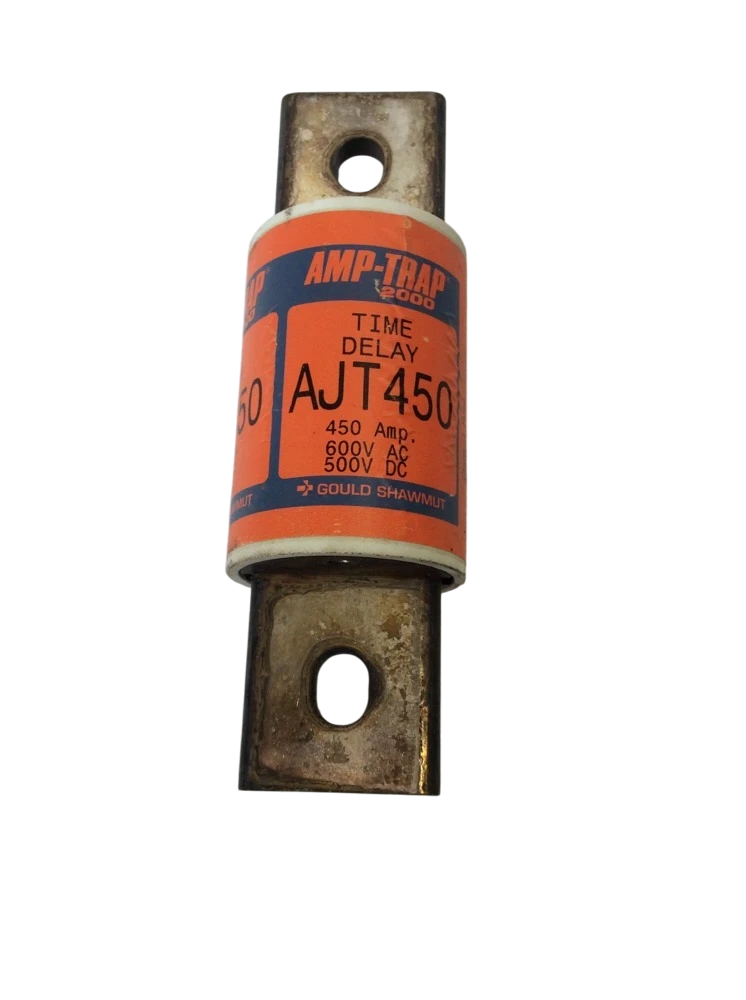

AJT450-EIB is a 450 Amp, 600 Volt Class J time delay fuse designed for low voltage applications.AJT450-EIB features a 2.5 inch diameter barrel and provides reliable current limiting protection with a time delay characteristic suitable for motor starting and transformer inrush currents. It includes a SmartSpot visual blown fuse indicator for easy status verification. This fuse meets UL 248-8 and CSA C22.2 No. 248.8 certifications and has an interrupt rating of 200,000 AIC at AC and 100,000 AIC at DC.
- Key Specifications
- Amperage: 450A
- Voltage Rating: 600VAC, 500VDC
- Fuse Class: J
- Time Delay Type
- Interrupt Rating: 200,000 AIC AC, 100,000 AIC DC
- Diameter: 2.5 inches
- SmartSpot Visual Blown Fuse Indicator
- UL Listed to Standard 248-8
- CSA Certified to C22.2 No. 248.8
Specifications
- Part Number: AJT450-EIB
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 450
- AIC rating : 200kA@600V
- Diameter : 2.5
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 78200147014
- GTIN : 00782001470142
- Weight : 4
