Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
AJT4

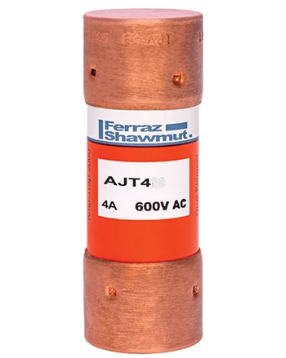

AJT4 is a 4 amp, 600 volt AC Class J time delay fuse from Mersen designed for motor starting and transformer inrush protection.This fuse features Amp-Trap 2000 technology with a SmartSpot visual blown fuse indicator for quick status verification. It offers extremely current-limiting performance with an interrupt rating of 200,000 AIC at 600 VAC and 100,000 AIC at 500 VDC. The AJT4 fuse is UL listed to standard 248-8, CSA certified, and IEC 269-2-1 compliant. It has a compact size of 0.81 inch diameter by 2.25 inch length and uses ferrule terminals with clip mounting.
- Key Specifications
- Amperage: 4 A
- Voltage Rating: 600 VAC / 500 VDC
- Fuse Class: Class J
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200 kA AC / 100 kA DC
- Mounting Type: Clip
- Terminal Type: Ferrule, Tin-Plated Copper
- Dimensions: 0.81 in diameter x 2.25 in length
- Certifications: UL Listed, CSA Certified, IEC Compliant
- SmartSpot Visual Blown Fuse Indicator
- Extremely Current Limiting
- Part Number: AJT4
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 4
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
- UPC : 782001963071
- GTIN : 00782001963071
- Weight : 5
