2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

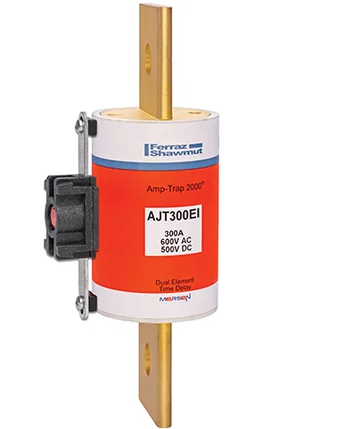

AJT300EI
AJT300EI is a Mersen Class J time delay fuse rated for 300 amps and 600 volts, designed for reliable circuit protection in industrial applications.This fuse features a time-delay characteristic ideal for motor and transformer inrush currents, providing superior current-limiting ability. It includes an EI (external indicator) visual open fuse indicator and is UL listed to standards UL 198L and UL 248-8, as well as CSA C22.2 certified. The fuse has a clip mounting type with brass terminals and a 200 kiloampere interrupt rating at 600 VAC.
- Key Specifications
- Amperage: 300 Amp
- Voltage Rating: 600 VAC / 500 VDC
- Fuse Type: Class J Time Delay
- Mounting Type: Clip Mount
- Indicator: EI Visual Open Fuse Indicator
- Interrupt Rating: 200 kA at 600 V
- Terminal Material: Brass
- Certifications: UL 198L, UL 248-8, CSA C22.2
- Dimensions: 3.24 Inch Length, 2-1/8 Inch Diameter
- Part Number: AJT300EI
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 300
- AIC rating : 300kA@600V
- Diameter : 2.13
- Class Rating : J
- Barrels : 1
- UPC : 782001397621
- GTIN : 00782001961589
- Weight : 2 lb
