Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

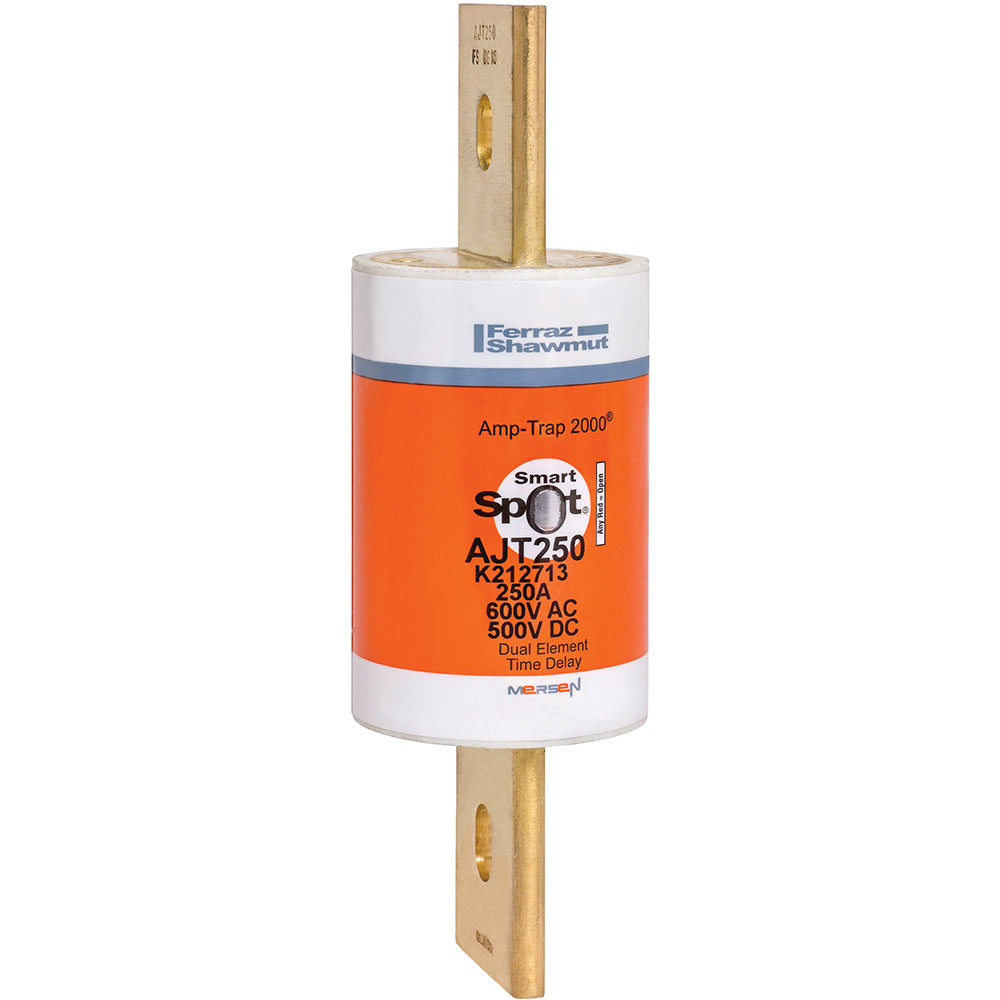

AJT250
AJT250 is a 250 amp, 600 volt Class J time delay fuse from Mersen's Amp-Trap 2000 series designed for reliable circuit protection.This fuse features a 200 kA interrupt rating and is suitable for both AC (600V) and DC (500V) applications. It includes the SmartSpot visual open fuse indicator for easy status verification and provides IEC Type 2 No Damage protection with superior current-limiting capabilities. The cartridge blade fuse design supports typical motor and transformer inrush currents with time-delay characteristics.
- Key Specifications
- Amperage: 250 A
- Voltage Rating: 600 Vac, 500 Vdc
- Interrupt Rating: 200 kA
- Speed: Time Delay
- Class: Class J
- Series: Amp-Trap 2000
- Fuse Shape: Cartridge Blade
- Visual Indicator: SmartSpot
- Certifications: UL, CSA, RoHS
- Dimensions: 2.12" Dia x 7.13" L (53.85 x 181.1 mm)
Specifications
- Part Number: AJT250
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 250
- AIC rating : 200kA@600V
- Diameter : 2.13
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001962265
- GTIN : 00782001962265
- Country of Origin : Mexico
- Dimensions : x 7-1/8 in x
- Weight : 3
- Certification : UL/CSA
