Product Info
- Manufacturer:Franklin Controls
- Sub-Category:Low Voltage Fuse
Description
AJT225

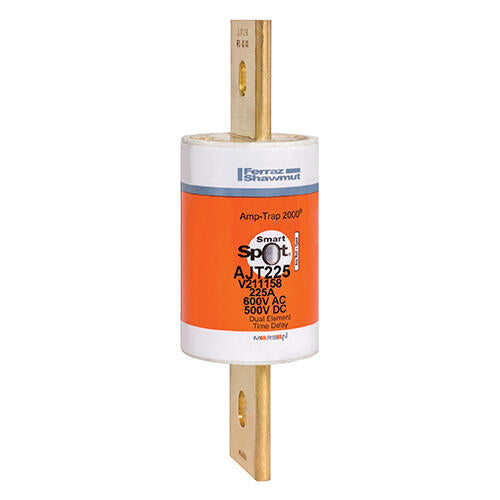

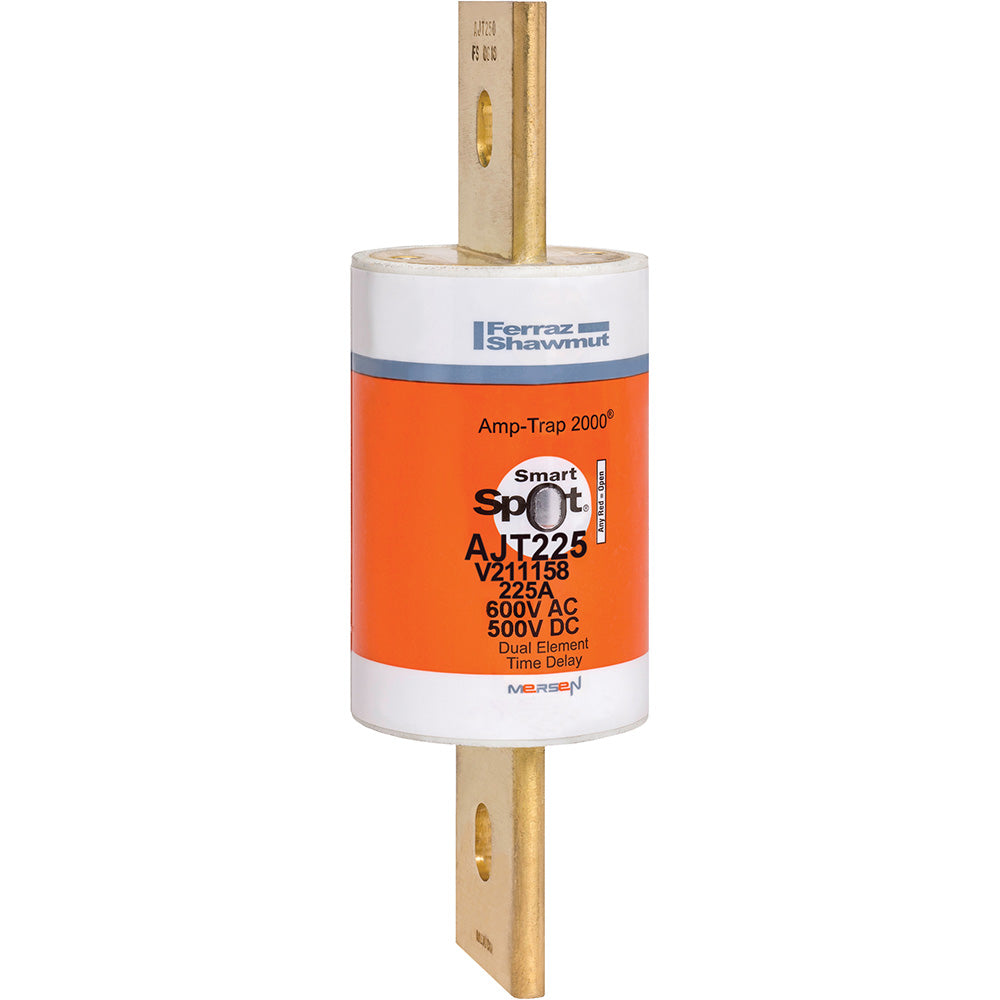

AJT225 is a 225 amp, 600 volt Class J time-delay fuse with SmartSpot blown fuse indication from Franklin Controls.This AJT225 fuse features a blade terminal design with brass connections, suitable for clip or bolted mounting. It provides a high interrupt rating of 200kA at 600VAC and 500VDC, making it ideal for motor starting and transformer inrush applications. The fuse body is made of GMG insulating material and complies with ROHS standards.
- Amperage: 225 A
- Voltage: 600 VAC / 500 VDC
- Fuse Class: Class J
- Speed/Characteristic: Time Delay
- Mounting Type: Clip or Bolted
- Interrupt Rating: 200 kA
- Terminal Material: Brass
- Terminal Type: Blade
- Indication System: SmartSpot Visual Indicator
- Body Material: GMG Insulating Material
- Frequency: 50/60 Hz
- ROHS Compliant
Specifications
- Part Number: AJT225
- Manufacturer : Franklin Controls
- Brand : Franklin Controls
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 225
- AIC rating : 200kA@600V
- Diameter : 2.13
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001962289
- GTIN : 00782001962289
- Country of Origin : Mexico
- Dimensions : x 7-1/8 in x
- Weight : 3
- Certification : UL/CSA
