Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
AJT20

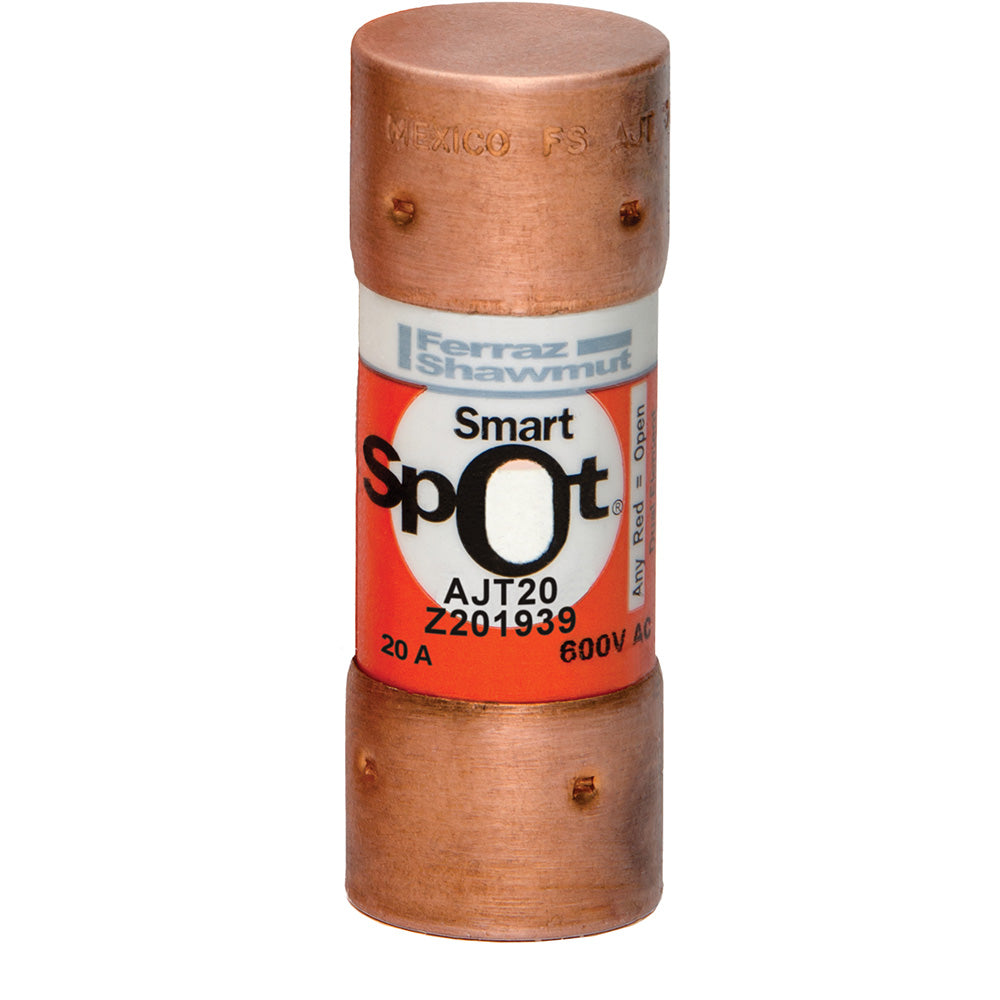

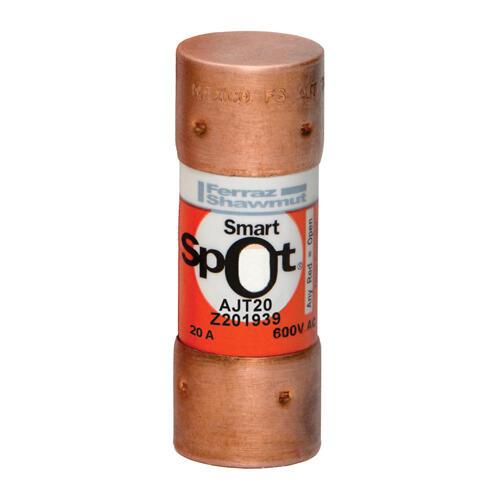

AJT20 is a 20 amp, 600 volt AC Class J time delay fuse from Mersen Ferraz Shawmut designed for motor starting and transformer inrush protection.This fuse features the Amp-Trap 2000® technology with a solid state SmartSpot® visual blown fuse indicator, providing IEC Type 2 No Damage protection. It has a 200kA interrupting rating at 600VAC and 100kA at 500VDC, with a time-delay characteristic ideal for handling inrush currents while offering extremely current limiting performance. The fuse is UL listed to standard 248-8 and CSA certified, with a compact size that requires less mounting space and allows use in smaller fuse blocks. It includes a tin-plated copper ferrule terminal and a fiberglass body for durability in industrial environments.
- Key Specifications
- Amperage: 20A
- Voltage Rating: 600VAC, 500VDC
- Fuse Class: J
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200kA AC, 100kA DC
- Mounting Type: Clip
- Indicator: SmartSpot® Visual Open Fuse Indicator
- Terminal Type: Tin-Plated Copper Ferrule
- Body Material: Fiberglass
- Certifications: UL Listed (UL 248-8), CSA Certified
- Dimensions: 0.81" Diameter x 2.25" Length
Specifications
- Part Number: AJT20
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 20
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001962449
- GTIN : 00782001962449
- Country of Origin : Mexico
- Dimensions : x 2-1/4" x
- Weight : 5
- Certification : UL/CSA
