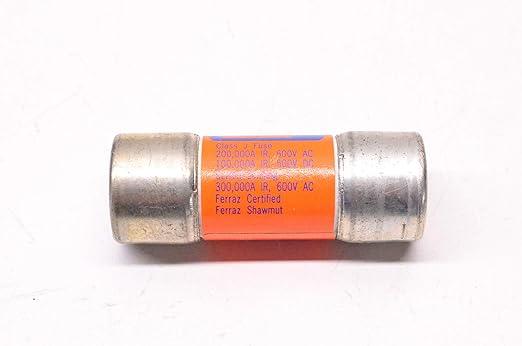

AJT2-1/2N - Mersen Ferraz Shawmut Class J Time Delay Fuse 2.5A 600VAC 500VDC 200kA Interrupt Rating

AJT2

AJT2-1/2N is a Class J time-delay fuse from Mersen Ferraz Shawmut designed for reliable circuit protection.This fuse provides IEC Type 2 No Damage protection for main, feeder, and branch circuits across all load types. It features a 2.5 ampere rating, 600 VAC and 500 VDC voltage ratings, and a high interrupt rating of 200 kA. The fuse uses a ferrule terminal with tin-plated copper connections and mounts via clip. Its time-delay characteristic is ideal for handling motor and transformer inrush currents while offering superior current-limiting performance. The fuse body is made of GMG insulating material and is RoHS compliant.

Key Specifications
• Part Number: AJT2-1/2N
• Manufacturer: Mersen Ferraz Shawmut
• Fuse Class: Class J
• Amperage: 2.5 A
• Voltage Rating: 600 VAC / 500 VDC
• Interrupt Rating: 200 kA
• Speed/Characteristic: Time Delay
• Mounting Type: Clip
• Connection Type: Ferrule, Tin-Plated Copper
• Compliance: IEC Type 2 No Damage, RoHS Compliant
• Body Material: GMG Insulating Material
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: AJT2
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : AJT
• Voltage : 600
• Amperage : 2
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1



Product Data

• UPC : 782001962777
• GTIN : 00782001963064
• Weight : 5
