Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
AJT150

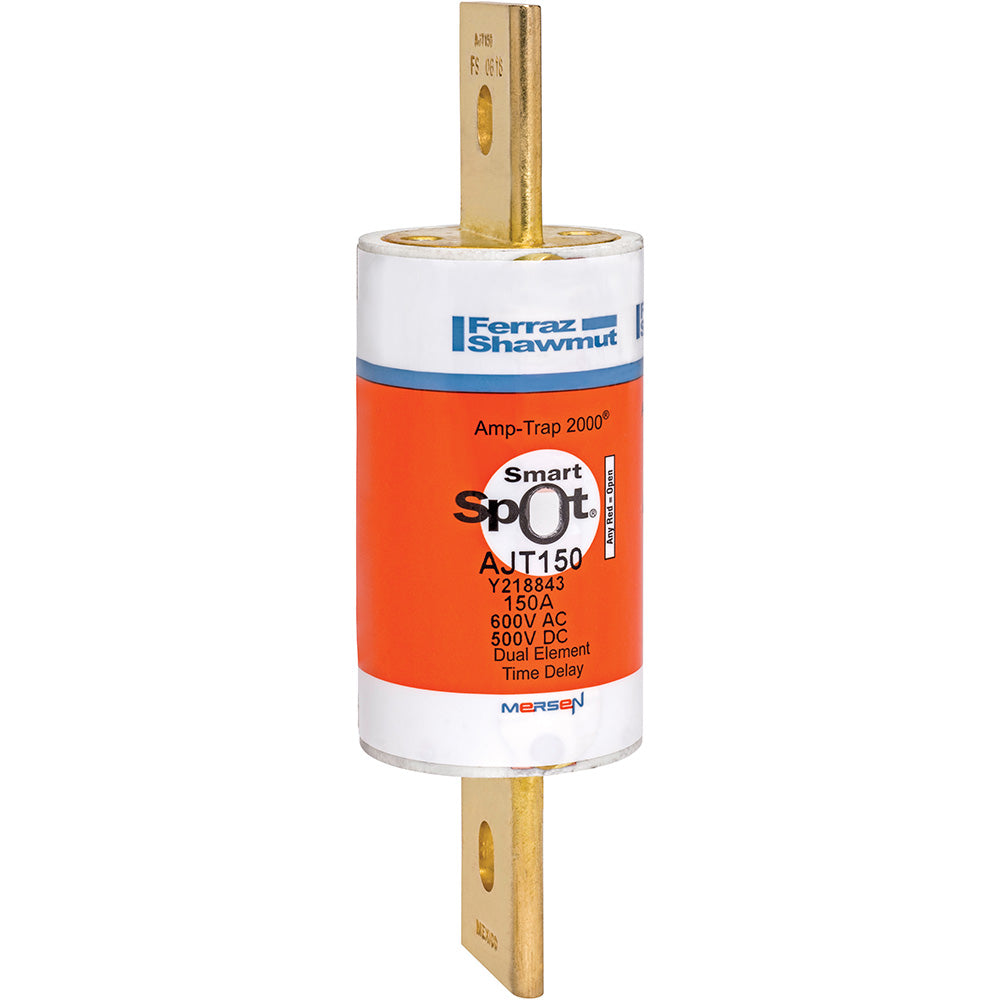

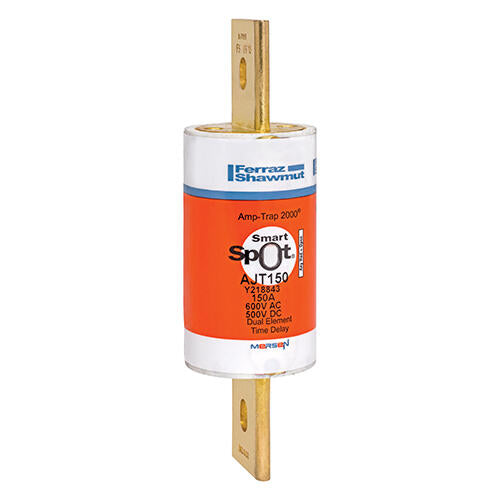

AJT150 is a Class J time-delay fuse rated for 150 amps and 600VAC/500VDC, featuring SmartSpot visual indication and Amp-Trap 2000 technology.AJT150 offers reliable current limiting protection with a 200kA interrupting rating at 600VAC, suitable for motor circuits and general power distribution. It has a blade terminal with brass connections and can be mounted by clip or bolted methods. The fuse body is made of GMG insulating material and is UL/CSA listed.
- Key Specifications
- Amperage: 150 A
- Voltage Rating: 600 VAC / 500 VDC
- Fuse Class: Class J
- Speed/Characteristic: Time Delay
- Interrupting Rating: 200,000 AIC at 600 VAC
- Mounting Type: Clip or Bolted
- Terminal Type: Blade with Brass Material
- Indication System: SmartSpot Visual Indicator
- Body Material: GMG Insulating Material
- Certifications: UL and CSA Listed
- Frequency: 50/60 Hz
Specifications
- Part Number: AJT150
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse

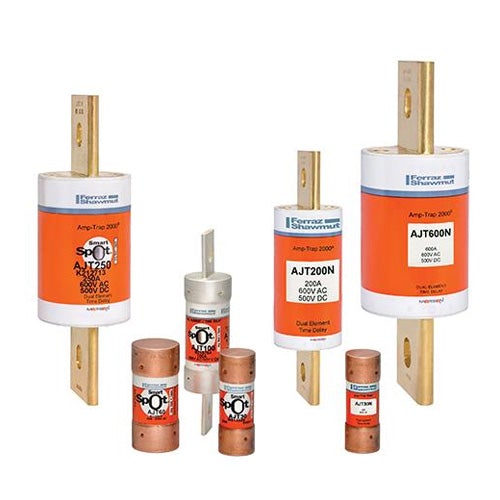

- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 150
- AIC rating : 200kA@600V
- Diameter : 1.63
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001962593
- GTIN : 00782001962593
- Country of Origin : Mexico
- Dimensions : x 5-3/4 in x
- Weight : 1
- Certification : UL/CSA
