Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
AJT15

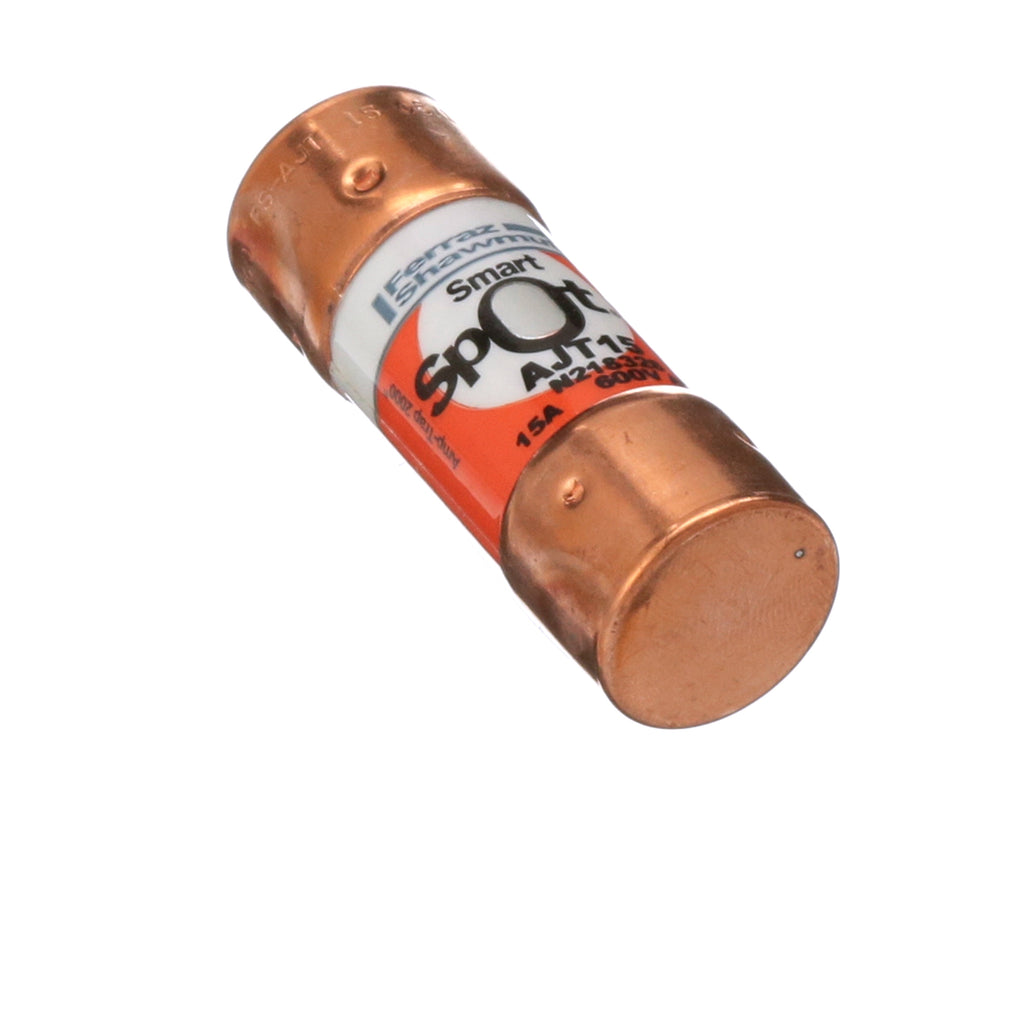

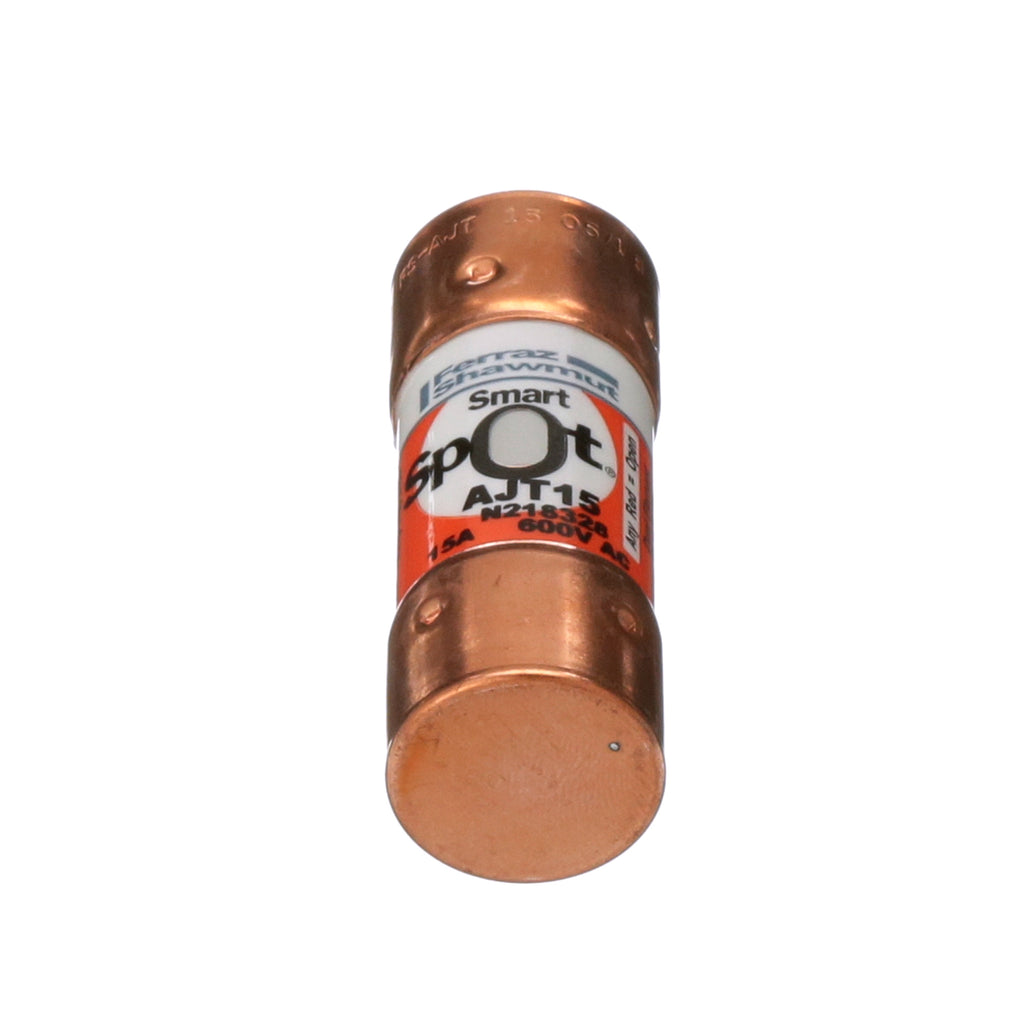

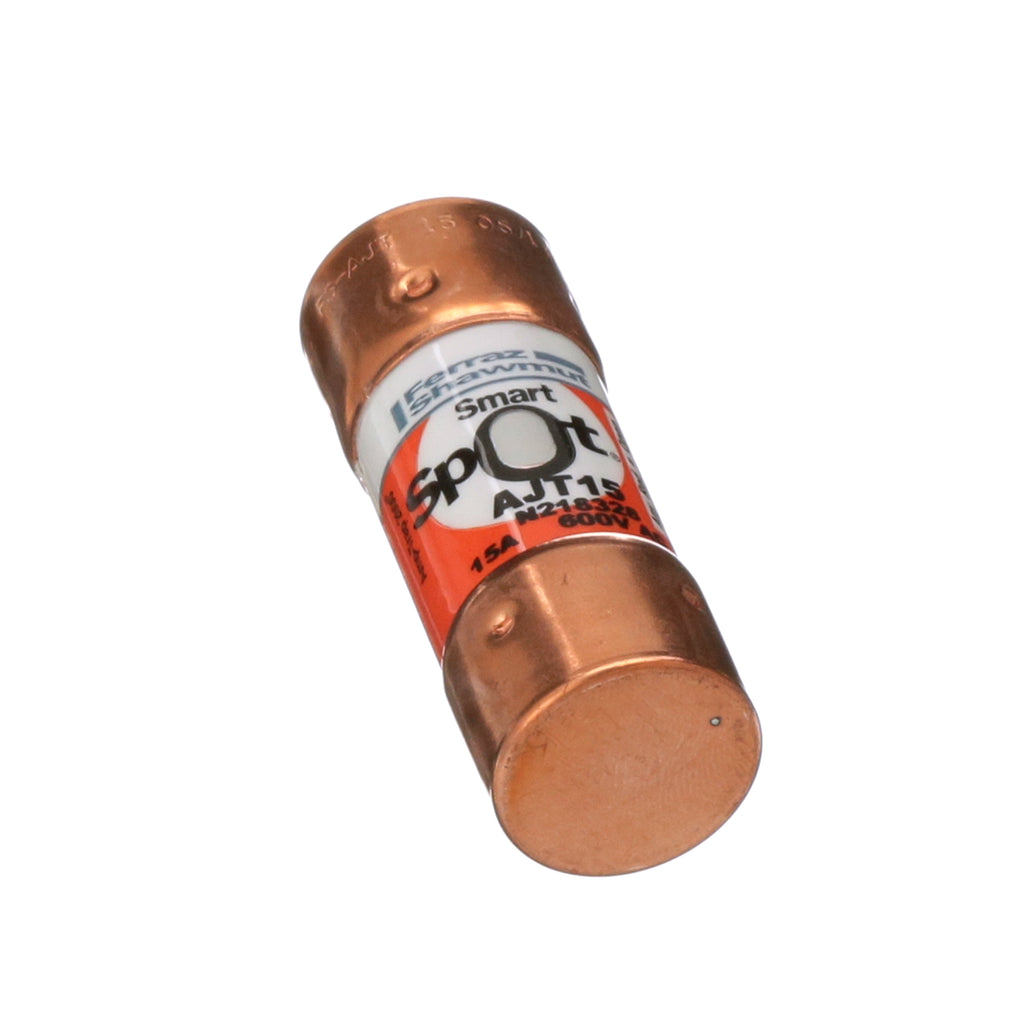

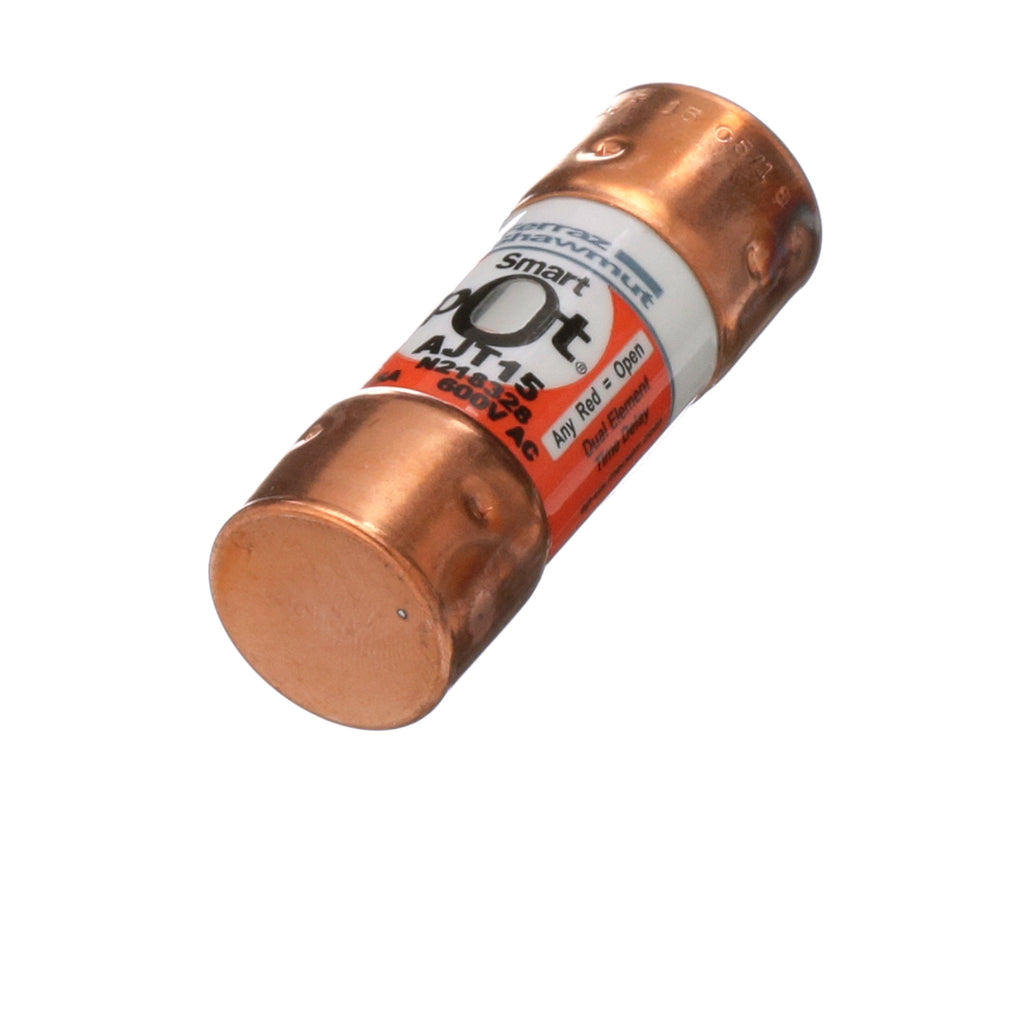

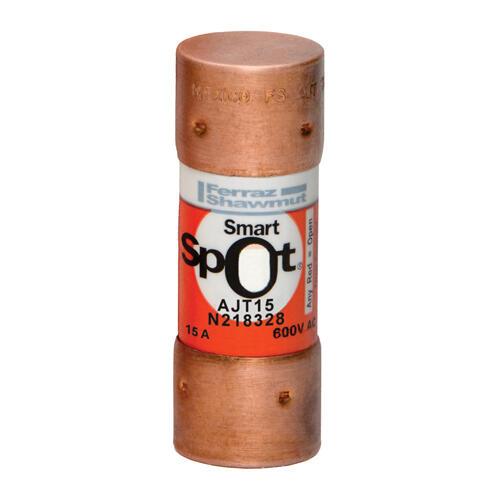

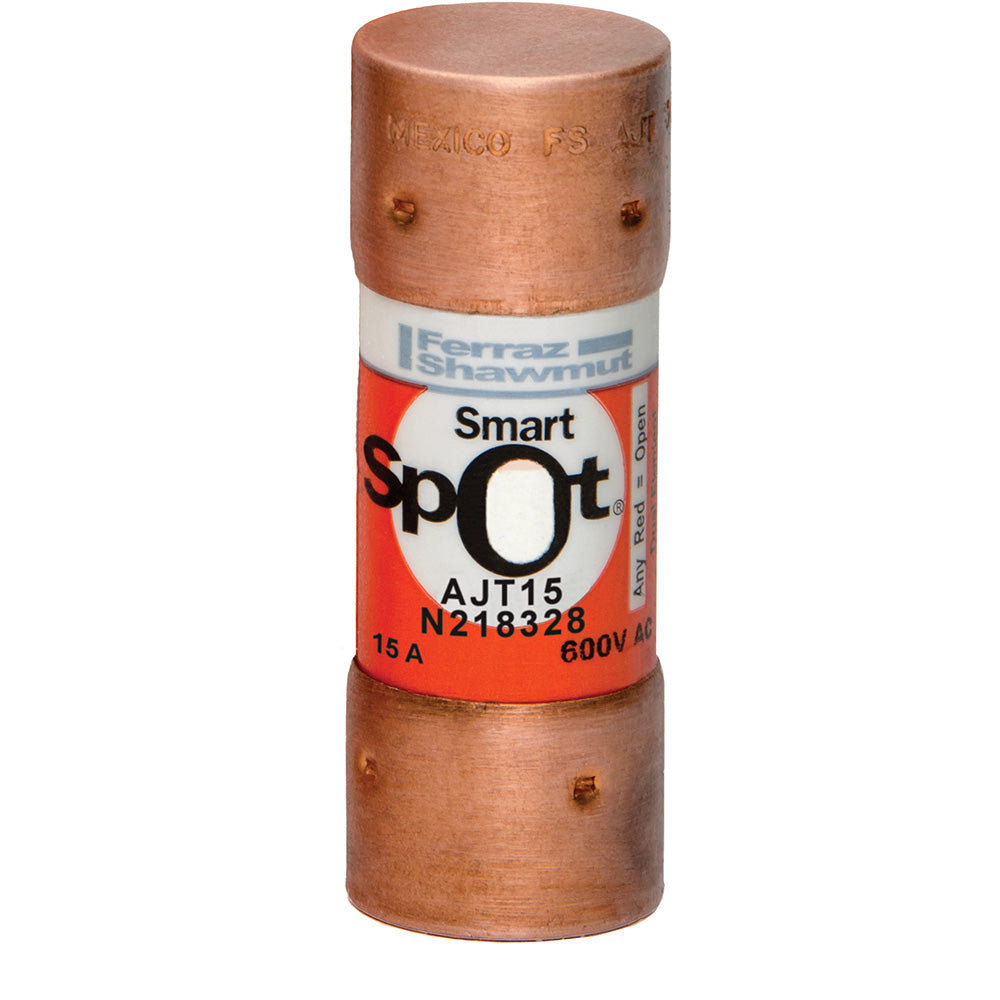

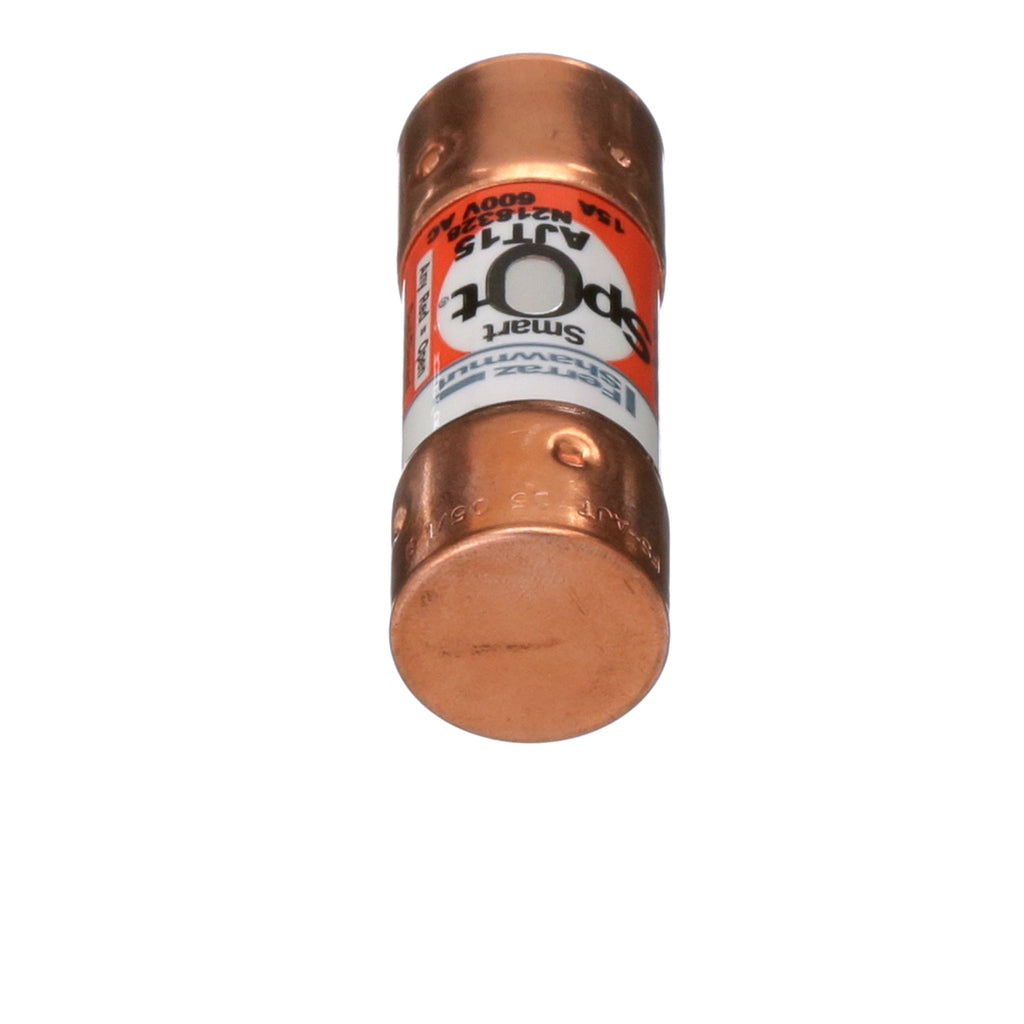

AJT15 is a Mersen Class J time-delay fuse rated for 15 amps and 600 volts with a 200kA interrupt rating and clip mounting.This AJT15 fuse features a cylindrical fiberglass body with a SmartSpot visual blown fuse indicator for quick status checks. It is designed for motor circuits and transformers, providing extremely current-limiting protection with low peak let-thru current. The fuse is UL listed, dual element, and offers a compact size of 13/16 inch diameter by 2 1/4 inch length. It supports 600VAC/400VDC operation and includes a metal-embossed catalog number for traceability.
- Key Specifications
- Amperage: 15 A
- Voltage Rating: 600 VAC / 400 VDC
- Poles: 1
- Mounting Type: Clip Mount
- Interrupt Rating: 200 kA
- Fuse Class: J
- Body Type: Cylindrical Fiberglass
- Time Delay: Yes
- Visual Indicator: SmartSpot blown fuse indicator
- Dimensions: 13/16 in diameter x 2 1/4 in length
- Certifications: UL Listed
Specifications
- Part Number: AJT15
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 15
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001962470
- GTIN : 00782001962470
- Country of Origin : Mexico
- Dimensions : x 2-1/4" x
- Weight : 5
- Certification : UL/CSA
