Product Info
- Manufacturer:Ferraz Shawmut
- Sub-Category:Low Voltage Fuse
Description

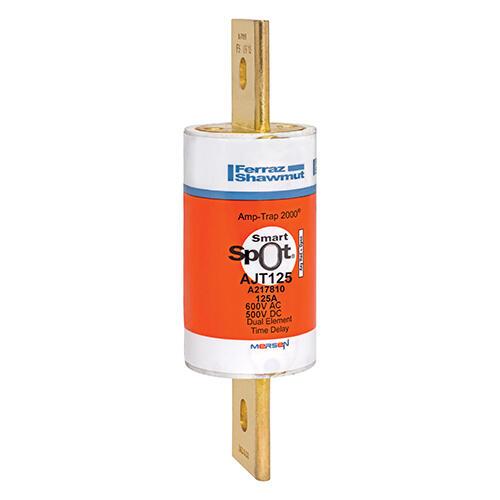

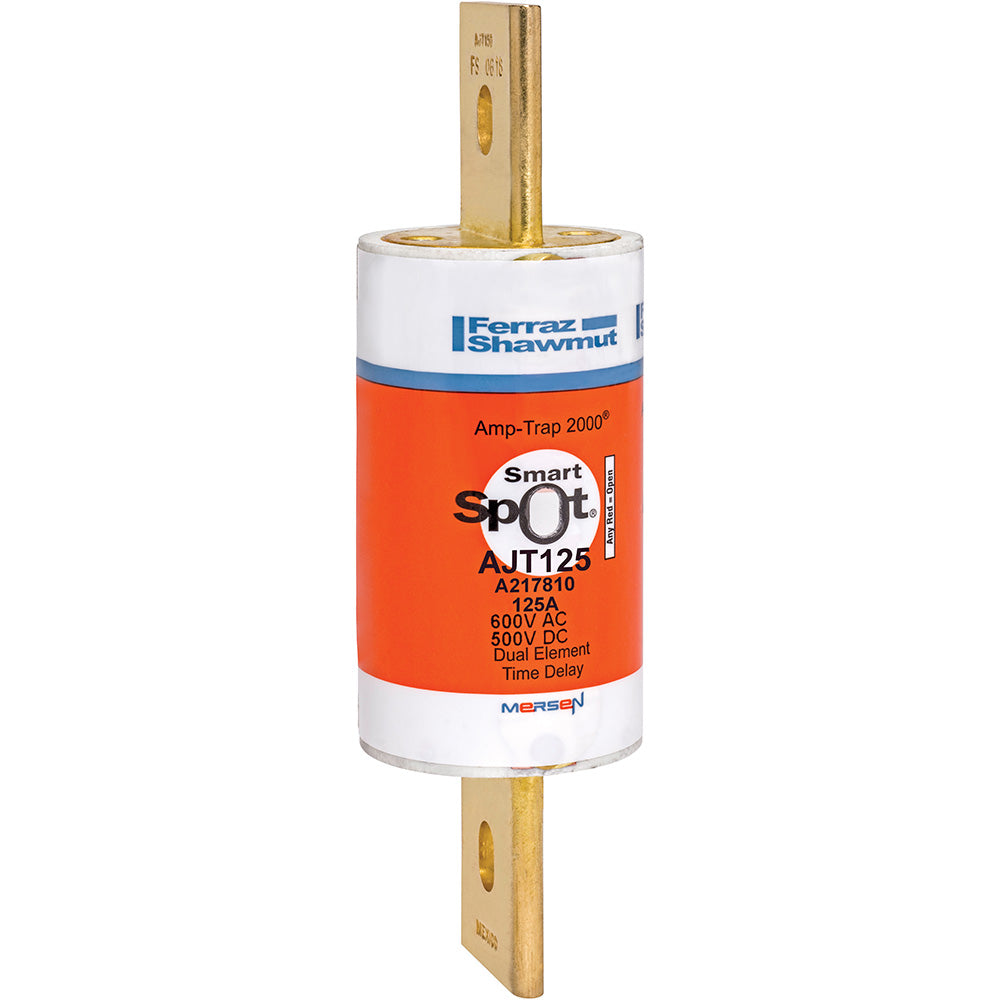

AJT125
AJT125 is a Class J time delay fuse rated for 125 amps and 600 volts AC, designed for low voltage power distribution protection.This fuse features a SmartSpot visual open fuse indicator for easy status verification, a 200 kA interrupt rating AC and 100 kA DC interrupt rating, and a compact cylindrical fiberglass body. It is current limiting with time-delay characteristics ideal for motor starting and transformer inrush applications. The fuse uses blade terminals for clip or bolted mounting and complies with UL and CSA standards.
- Amperage Rating: 125 A
- Voltage Rating: 600 V AC, 500 V DC
- Class: J
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200 kA AC, 100 kA DC
- Mounting Type: Clip or Bolted
- Terminal Type: Blade
- Body Material: Fiberglass
- Indication System: SmartSpot visual indicator
- Dimensions: 1.62 in diameter x 5.75 in length
- Series: AJT
- ROHS Compliant: Yes
Specifications
- Part Number: AJT125
- Manufacturer : Ferraz Shawmut
- Brand : Ferraz Shawmut
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 125
- AIC rating : 200kA@600V
- Diameter : 1.63
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 078200196261
- GTIN : 00782001962616
- Country of Origin : Mexico
- Dimensions : x 5-3/4 in x
- Weight : 1 lb
- Certification : UL/CSA
