Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

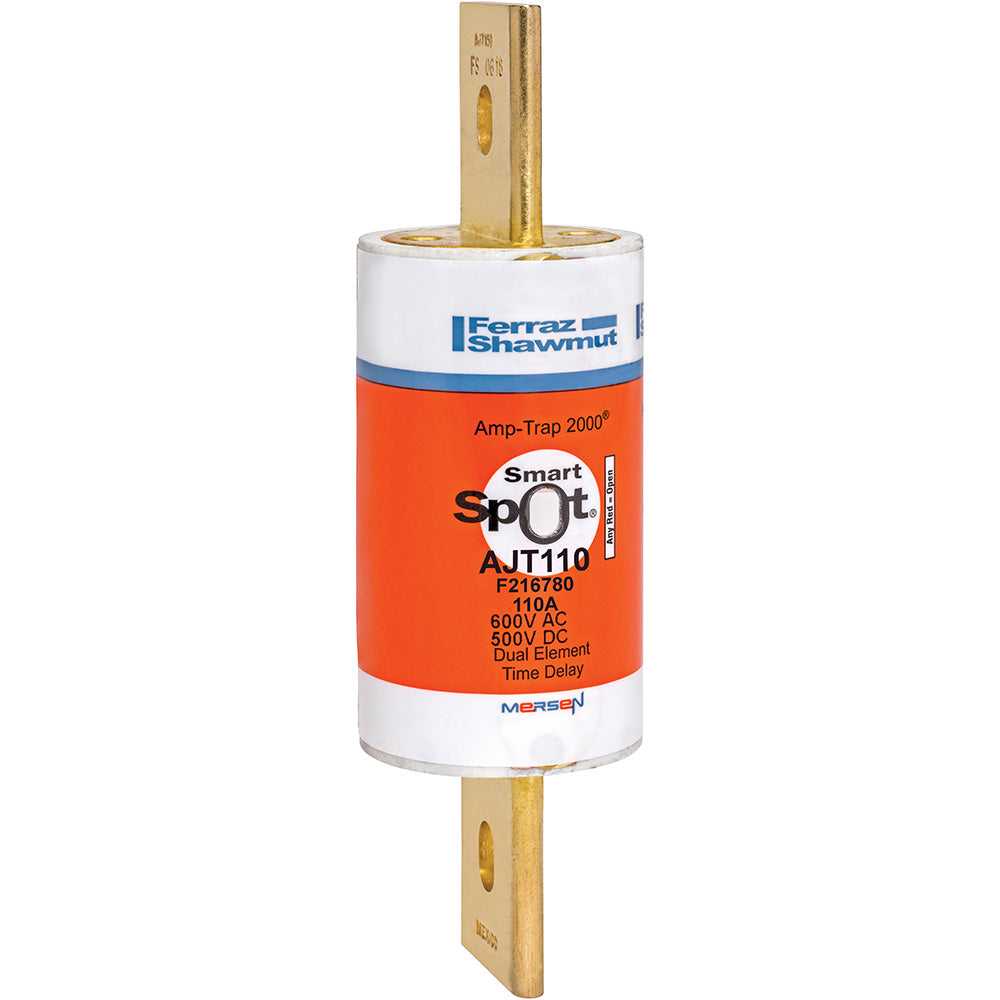

AJT110
AJT110 is a 110 amp, 600 volt Class J time-delay fuse with blade terminals and SmartSpot® indication system.This fuse features a 200 kA interrupt rating at 600 VAC, suitable for AC and DC applications up to 600 V AC and 500 V DC. It has a cylindrical GMG insulating body, clip or bolted mounting options, and brass blade terminals. The time-delay characteristic protects motor circuits and transformers by allowing temporary overloads without blowing.
- Key Specifications
- Amperage Rating: 110 A
- Rated Voltage AC: 600 V
- Rated Voltage DC: 500 V
- Fuse Class: Class J
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200 kA AC / 100 kA DC
- Mounting Type: Clip or Bolted
- Terminal Type: Blade, Brass
- Body Material: GMG Insulation
- Indication System: SmartSpot®
- Frequency: 50/60 Hz
- Dimensions: 1.62 in diameter x 5.75 in length
- Part Number: AJT110
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 110
- AIC rating : 200kA@600V
- Diameter : 1.63
- Class Rating : J
- Barrels : 1
- UPC : 782001962630
- GTIN : 00782001962630
- Country of Origin : Mexico
- Dimensions : x 5-3/4 in x
- Weight : 1 lb
- Certification : UL/CSA
