Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

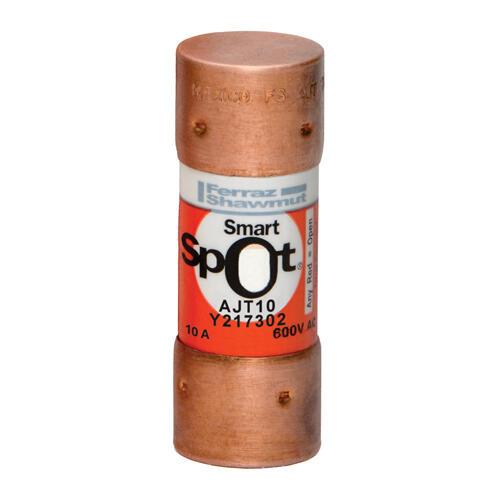

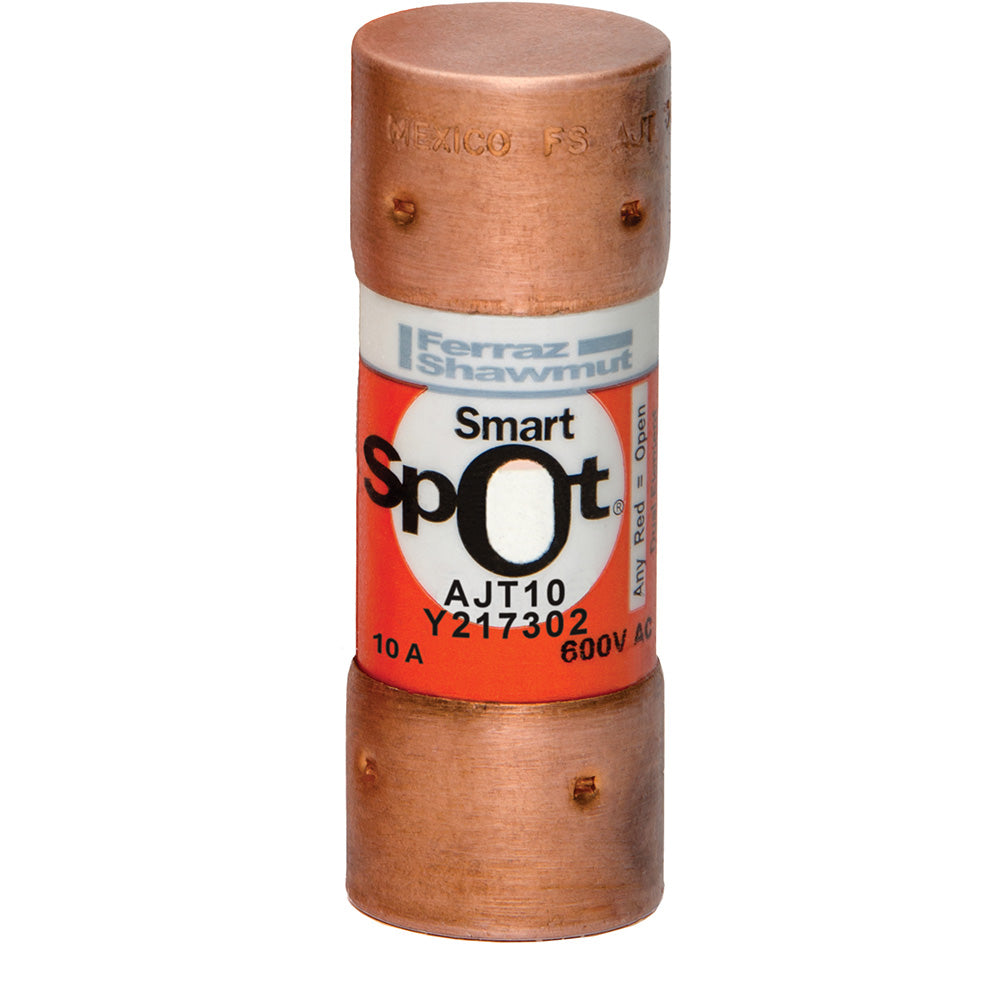

AJT10
AJT10 is a 10 Amp, 600 Volt AC Class J time-delay fuse with a SmartSpot visual blown fuse indicator designed for motor starting and transformer inrush protection.AJT10 features extremely current-limiting characteristics with a 200,000 AIC AC interrupt rating and 100,000 AIC DC interrupt rating. It is UL listed to standard 248-8 and CSA certified, providing IEC Type 2 No Damage protection. The fuse has a compact 13/16" x 2 1/4" fiberglass body with metal embossed date and catalog number for traceability.
- Key Specifications
- Amperage: 10 A
- Voltage Rating: 600 VAC / 500 VDC
- Fuse Class: Class J
- Time Delay Characteristic
- Interrupt Rating: 200,000 AIC AC / 100,000 AIC DC
- Mounting Type: Clip with Ferrule Terminal
- SmartSpot Visual Blown Fuse Indicator
- UL Listed (File E2137) and CSA Certified
- IEC Type 2 No Damage Protection
- Dimensions: 0.81 in diameter x 2.25 in length
- Body Material: Fiberglass with high-grade silica filler
Specifications
- Part Number: AJT10
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 10
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001962722
- GTIN : 00782001962722
- Country of Origin : Mexico
- Dimensions : x 2-1/4" x
- Weight : 5
- Certification : UL/CSA
