Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
AJT1-1/2

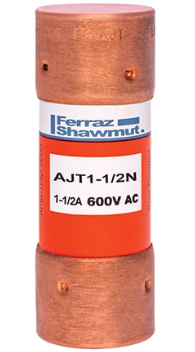

AJT1-1/2 is a Mersen Amp-Trap 2000® Class J time-delay fuse designed for reliable circuit protection in main, feeder, and branch circuits. This fuse features a SmartSpot visual open fuse indicator and advanced material technology for superior current-limiting ability and IEC Type 2 No Damage protection. The AJT1-1/2 fuse is ideal for applications requiring time-delay characteristics to handle motor and transformer inrush currents. It requires only half the mounting space of 600VAC Class RK fuses, making it a compact solution for load centers, bus ducts, and circuit breaker back-up systems. The fuse is suitable for a wide range of loads and provides dependable protection for both AC and DC circuits.
- Amperage: 1.5A
- Voltage: 600VAC, 500VDC
- Fuse Class: Class J
- Speed: Time-Delay
- Interrupt Rating: 200 kA
- Mounting Type: Ferrule
- Series: Amp-Trap 2000®
- Indicator: SmartSpot visual open fuse indicator
- Approvals: UL, CSA, RoHS
- IEC Type 2 No Damage protection
- Compact design for space-saving installation
- Advanced material technology for superior performance
Specifications
- Part Number: AJT1-1/2
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001963057
- Weight : 5
