Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGX-4/10

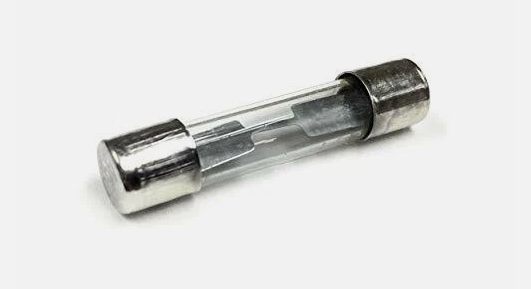

AGX-4/10 is a fast-acting glass cartridge fuse from Eaton designed for reliable circuit protection in electronic and small appliance applications. This fuse features a 400mA current rating and a 250VAC voltage rating, with a physical size of 1/4" x 1" (6.3 x 25.4mm) and nickel-plated brass endcaps for durability. It is UL Listed and meets standard 248-14, making it suitable for a wide range of industrial and commercial uses. The AGX-4/10 fuse is fast-acting, providing quick response to overcurrent conditions to protect sensitive equipment. It is commonly used in instruments, electronic circuits, and small appliances where reliable and compact protection is required. The glass tube construction allows for easy visual inspection of the fuse element.
- Part Number: AGX-4/10
- Manufacturer: Eaton
- Current Rating: 400mA
- Voltage Rating: 250VAC
- Fuse Type: Fast-Acting
- Physical Size: 1/4" x 1" (6.3 x 25.4mm)
- Fuse Size/Group: 8AG
- Construction: Glass Tube, Nickel-Plated Brass Endcaps
- Application: Instruments, Electronic and Small Appliance Circuits
- Agency Approvals: UL Listed, CSA Component Acceptance
- Interrupt Rating: 10,000A
- Mounting Type: Requires Holder
Specifications
- Part Number: AGX-4/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGX Series
- Type : AGX
- Voltage : 250
- Amperage : 4
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 05171270471
- GTIN : 00051712704717
- Weight : 1.2
