2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

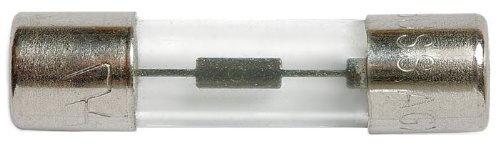

AGX-30
AGX-30 is a fast-acting glass tube fuse designed for use in instruments, electronic circuits, and small appliances. This Eaton AGX series fuse features a 30A current rating and a 125VAC voltage rating, providing reliable circuit protection in a compact 1/4" x 1" size. The fuse is constructed with a glass tube and nickel-plated brass endcaps for durability and consistent performance. The AGX-30 is a cartridge-style fuse that requires a holder for mounting. It is UL Listed and meets standard 248-14, making it suitable for a wide range of low-voltage applications. The fuse is fast-acting, ensuring quick response to overcurrent conditions to protect sensitive equipment.
- Part Number: AGX-30
- Manufacturer: Eaton
- Series: AGX
- Current Rating: 30A
- Voltage Rating: 125VAC
- Fuse Type: Fast-Acting Glass Tube
- Mounting Type: Requires Holder
- Interrupt Rating: 1000A
- Physical Size: 1/4" x 1" (6.35mm x 25.4mm)
- Endcap Material: Nickel-Plated Brass
- Agency Approvals: UL Listed, CSA Component Acceptance
- Application: Instruments, Electronic Circuits, Small Appliances
Specifications
- Part Number: AGX-30
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGX Series
- Type : AGX
- Voltage : 32
- Amperage : 30
- AIC rating : 1kA@32Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 05171270485
- GTIN : 00051712704854
- Weight : 3.5
