Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGX-3

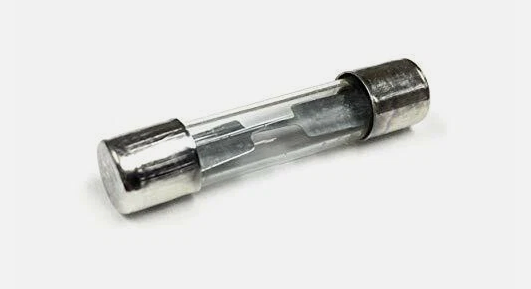

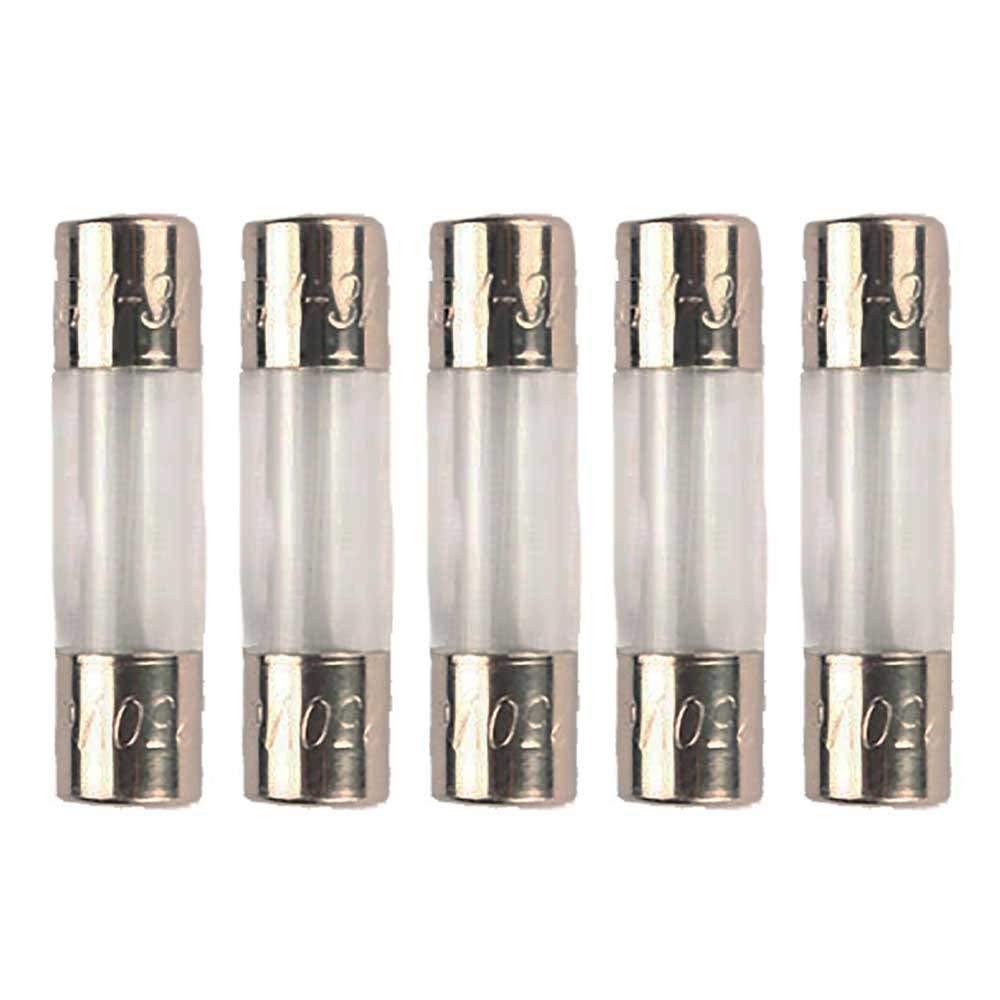

AGX-3 is a 3A, 250V fast-acting glass tube fuse designed for use in instruments, electronic devices, and small appliance circuits. This AGX series fuse features a 1/4" x 1" physical size, nickel-plated brass end caps, and a high interrupting rating for reliable circuit protection. The Eaton AGX-3 fuse is UL Listed and meets standard UL 248-14, making it suitable for a wide range of low-voltage applications. Its fast-acting response helps prevent damage from overcurrent events, and the glass body allows for easy visual inspection.
- Part Number: AGX-3
- Manufacturer: Eaton
- Amperage: 3A
- Voltage Rating: 250V AC
- Fuse Type: AGX
- Physical Size: 1/4" x 1"
- Interrupting Rating: 100 AIC @ 250VAC, 10,000 AIC @ 125VAC
- Mounting Type: Ferrule End
- Blow Characteristic: Fast Acting
- Agency Approvals: UL Listed, UL 248-14
- Series: AGX
- Application: Instruments, electronics, small appliances
Specifications
- Part Number: AGX-3
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGX Series
- Type : AGX
- Voltage : 125
- Amperage : 3
- AIC rating : 10kA@125Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 05171270477
- GTIN : 00051712704779
- Weight : 0.08
