Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGX-3/8

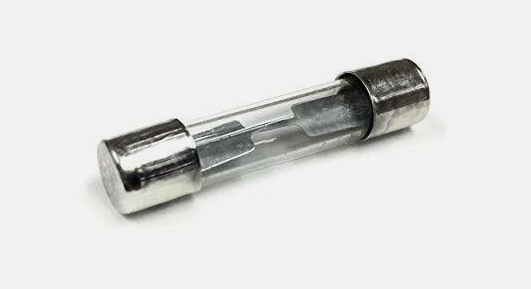

AGX-3/8 is an Eaton Bussmann series fast-acting glass tube fuse rated at 0.375 amps and 250 volts AC, designed for electronic circuit protection.AGX-3/8 features a 1/4" x 1" (6.3 x 25.4 mm) glass tube construction with nickel-plated brass end caps, providing reliable fast-acting fuse performance with interrupt ratings of 35 AIC at 250 VAC and 10 kAIC at 125 VAC. It is non-indicating and suitable for electronic and small appliance circuits.
- Key Specifications
- Amperage Rating: 0.375A
- Voltage Rating: 250 VAC, 32 VDC
- Interrupt Rating: 35 AIC at 250 VAC, 10 kAIC at 125 VAC
- Fuse Type: Fast-acting
- Physical Size: 1/4" x 1" (6.3 x 25.4 mm)
- Connection Type: Ferrule end to ferrule end
- Material: Glass tube with nickel-plated brass end caps
- Response Time: 4 hr at 110%, 60 min at 135%, 2 min at 200%
- Poles: 1
- Certifications: UL Recognized (Guide JDYX, File E19180)
- Application: Electronic circuits and small appliances
Specifications
- Part Number: AGX-3/8
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGX Series
- Type : AGX
- Voltage : 250
- Amperage : 3
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 05171270470
- GTIN : 00051712704700
- Weight : 0.1
